Jbocnt Factory Customized Connectors Electronic Medical Equipment Cable Assemblies Wire Harness

Product advantages

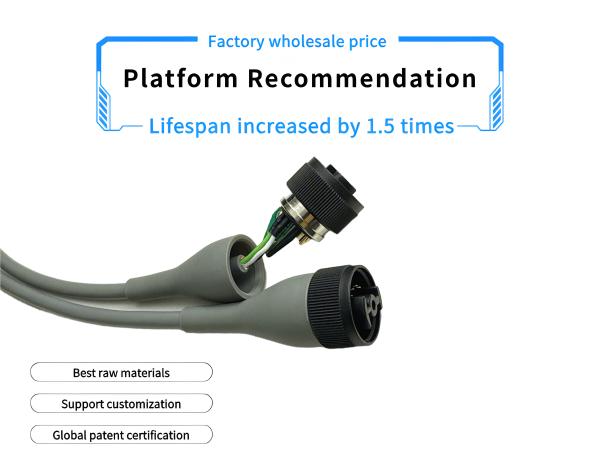

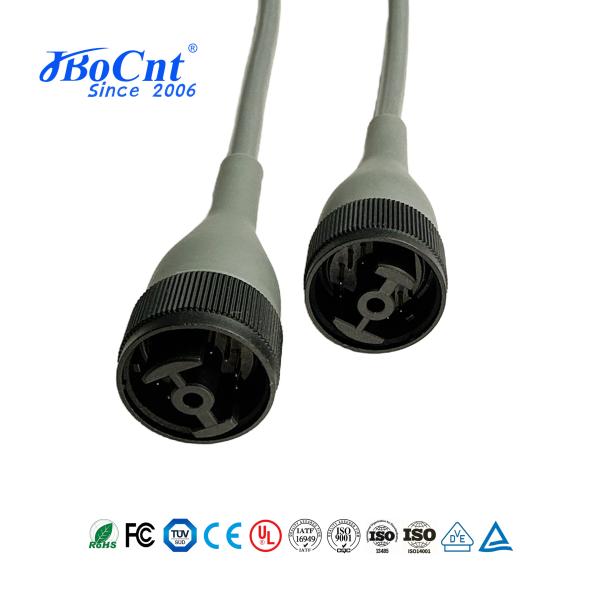

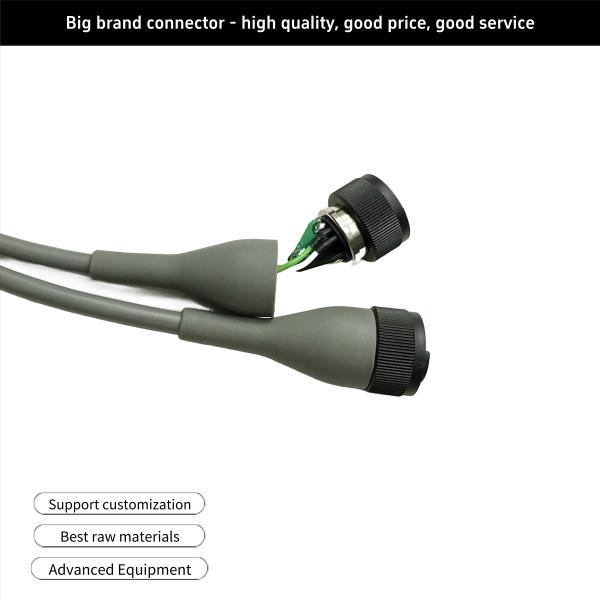

The advantages and selling points of this 8PIN medical connector are as follows:

‌High reliability‌: The sturdy shell design effectively prevents loosening and ensures stable and reliable connection.
‌Convenient operation‌: Equipped with a rotation locking mechanism, the operation is simple and quick, which is convenient for medical staff to quickly connect and disconnect.
‌Multi-functional application‌: Widely compatible with a variety of medical equipment such as monitors and infusion pumps to meet diverse needs.
‌Purpose‌: Mainly used for medical equipment connection in hospitals and clinics to ensure the accuracy of data transmission and the stability of equipment power supply, and improve medical work efficiency

OUR CUSTOMERS

FAQ

‌

Q1: Does this connector meet the medical device certification standards? ‌
‌A‌: Yes. The product has passed the ISO 13485 medical device quality management system certification and meets:
IEC 60601-1 medical electrical equipment safety standard
Biocompatibility test (compliant with USP Class VI)
Anti-disinfectant corrosion (can withstand 75% alcohol wipes)

‌Q2: How to ensure durability under high-frequency plugging and unplugging? ‌
‌A‌: Core design guarantees:
Contacts‌: gold-plated (≥1μm), plug-in life ＞5,000 times
‌Housing‌: PPSU medical-grade plastic (resistant to gamma ray sterilization)
‌Locking structure‌: double spring buckle to prevent accidental detachment
Q3: Does it support high-speed data transmission? ‌
‌A‌: Yes. 8PIN configuration is compatible with:
Differential signal transmission (such as USB 2.0/RS-422)
Analog signal acquisition (ECG/EEG equipment)
Shielding layer design (anti-interference of operating room electric knife)

‌Q4: What is the protective performance of the connector in a humid environment? ‌
‌A‌: It reaches IPX7 waterproof level (no water leakage after immersion for 30 minutes), suitable for:
Operating room flushing and disinfection scenarios
ICU equipment cleaning needs
Outdoor emergency equipment waterproofing

‌Q5: How to quickly distinguish the line sequence? ‌
‌A‌: Three identification schemes are provided:
Color-coded sleeves (compliant with IEC 60601-1-2)
Groove anti-fool design (physical anti-reverse insertion)
Supporting line sequence manual (including international standard comparison table)

‌Q6: The cycle of customized cable length and interface type? ‌
‌A‌: Standard models are shipped within 48 hours, customized services (such as sheet metal brackets/special interfaces) require 5-7 working days, and free sample testing is provided.
