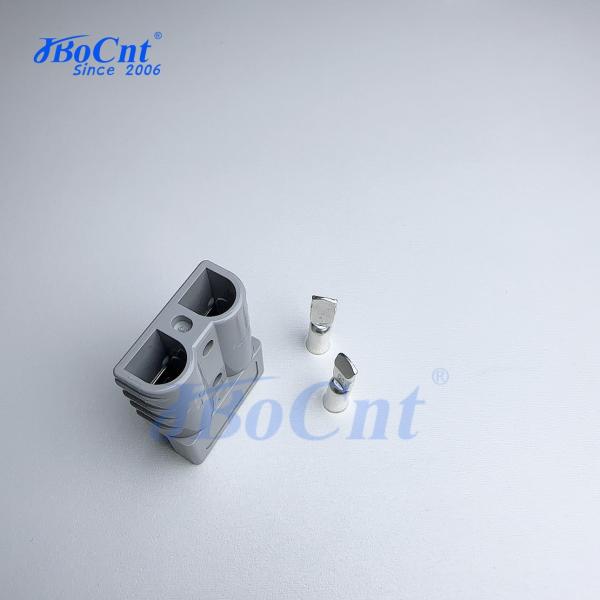

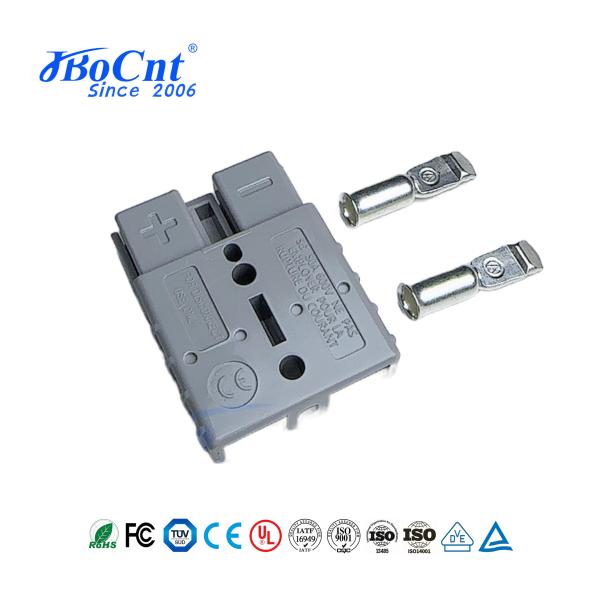

50A 600V High Current Anderson Socket Connector SB50A Anderson Plug Connector
50A 600V High Current Anderson Socket Connector SB50A Anderson Plug Connector
50A 600V High Current Anderson Socket Connector SB50A Anderson Plug Connector
50A 600V High Current Anderson Socket Connector SB50A Anderson Plug Connector
50A 600V High Current Anderson Socket Connector SB50A Anderson Plug Connector
50A 600V High Current Anderson Socket Connector SB50A Anderson Plug Connector
Specifications
Brand Name :
Jbocnt
Model Number :
SB50A
Certification :
CE、TUV、UL、RoHS
Place of Origin :
Shenzhen, China
MOQ :
500 sets
Price :
Negotiable
Payment Terms :
,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability :
10000/day
Delivery Time :
Sample: 1-3 days; Small order: 3-10 days; Bulk order: 10-18 days
Packaging Details :
High quality export packaging
Name :
Anderson Connector
Hardware materials :
Silver-plated copper
Housing Material :
PA66
Mechanical life :
5000 times
Product weight :
175g
Rated current/ instantaneous current :
50A
Operating temperature :
-20°C to 105 °C
Wiring range :
12AWG-6AWG
Recommended welding standards :
480℃/4S
Description


Product advantages


☑ Compact structure, high space utilization
☑ Adopt optimized structure, enhance heat dissipation
☑ Easy to install and disassemble
☑ Low resistance, high conductivity, reduce energy loss
☑ Insert a variety of auditory and visual feedback
☑ Adapt to vibration, temperature changes and humid environments


Part Name
Title and Specifications of Materials
Rated current
50A
120A
175A
350A
Rated voltage
600V
600V
600V
600V
Terminal materia!
Cu/Ep&Ag
Cu/Ep&Ag
Cu/Ep&Ag
Cu/Ep&Ag
Plastic shell material
PC
PC
PC
PC
Flammability
UL94 V-0
UL94 V-0
UL94 V-0
UL94 V-0
Internal shrapnel
65Mn
65Mn
65Mn
65Mn
Environment Temperature(°C)
-20°C~105°C
-20°C~105°C
-20°C~105°C
-20°C~105°C
Connector specifcation (AWG USA)
12,10,8,7AWG
6,4,2AWG
4,2,1/0AWG
2/0AWG
Connector specifcation (mm²)
4~12mm²
10-25mm²
10-50mm²
10-70mm²
50A size

120A size

175A size

350A size




OUR CUSTOMERS


50A 600V High Current Anderson Socket Connector SB50A Anderson Plug Connector


FAQ



Shipping:

1, We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2, It will take around 3-5 days to reach your hands.



Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.



Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.


Buyer Reading:
1. Please confirm receipt of products if the items you received, and if the goods was damaged please contact us immediately. send the photo to us that we can check and give you best solution

2. We only guarantee delivery in time but we couldn't control the express delivery time. Our related sales person will be responsible to send the AWB for the delivered goods in the next workday. you can check the AWB in the website which we send to you. For the AWB you also can call to the local branch of the express company in your company.

If you have any other questions please feel free to contact us.
