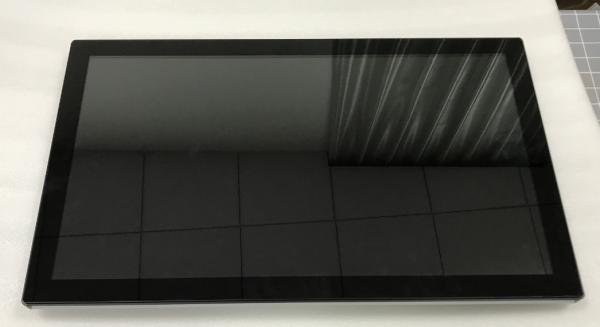

32Inch High Resolution 3840*2160 PCAP Touch Monitor JB32T-M1200 for Industry Application
32Inch High Resolution 3840*2160 PCAP Touch Monitor JB32T-M1200 for Industry Application
Specifications
Brand Name :
JB
Model Number :
JB32T-M1200
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2000pcs/month
Delivery Time :
7-10 working days
Packaging Details :
Carton box
Size :
32inch
Resolution :
3840*2160
Brightness :
1200 cd/m² (Typ.)
Outline Dimension :
765mm ×460mm ×57.5mm
Touch Type :
PCAP Touch (10 Points)
Input Function :
VGA+HDMI
Working Temp. :
0 ~ 50 °C
Description

32Inch High Resolution 3840*2160 PCAP Touch Monitor JB32T-M1200 for Industry Application

32Inch High Resolution 3840*2160 PCAP Touch Monitor JB32T-M1200 for Industry Application

32Inch High Resolution 3840*2160 PCAP Touch Monitor JB32T-M1200 for Industry Application

Parameters

LCD Panel Parameters Panel Size 32inch
Aspect Ratio 16:9
Backlight LED
Pixels

0.36375×0.36375mm
Active Area Horizon:697.306mm

Vertical:392.234mm
Resolution 3840*2160
Response Time 8ms
Color 16.7 million
Brightness 1200 cd/m2
Contrast Ratio 1200:1
View Angel 89/89/89/89 (Typ.)(CR≥10)
Touch Panel Parameters Touch Type PCAP
Touch Cover Thickness 2.4mm
Transparrent Rate 87%
Hardness 7H
Touch Points 10
Response Time ≤10 ms
Tools Finger / Pen
Touch Life Span ≥5000 Million
Touch Accuracy ＜2%
Single Point Operate System Windows XP,Linux
Multi Point Operate System Windows7/8/10,Android
PCAP Monitor Parameters Outline Dimension

765mm ×460mm ×57.5mm

Weight

TBA
Video Input Format RGB Analog / Digital
Input Interface VGA+HDMI / DC12V / USB2.0
OSD Power,Menu,Up,Automobile,Down
Power Supply Input DC 12V±5%
Power Max:23w；Stand by: 3w; Power off:2w
Mount Side / VESA 75mm&75mm

Accessories

 Singal cable VGA D-SUB 15pin 1.5M
USB cable 1.8 M
Adaptor 12V/3.0A,105mmx50mmx32mm,1.1M
Certificate 3C CE FCC ROHS
Working Temp. : 0℃-50℃； :
Humidity Working: 20%-80%; Storage: 10%-90%
Operate at altitude ＜3000M
Warranty 1 year

Appication

32Inch High Resolution 3840*2160 PCAP Touch Monitor JB32T-M1200 for Industry Application
