CR Collet chuck for short taper mount
CR Collet chuck for short taper mount
Specifications
Brand Name :
NTH Cooperated Brand
Model Number :
CR26A4,CR30A4,CR42A5,CR42A6,CR52A6,CR60A6,CR80A8,
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000sets/M
Delivery Time :
3 work days available
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Certification :
CE
Product name :
Collet chuck for short taper mount
Material :
Cast steel
Usage :
Fixture/Gripping
Feature :
High precision/Stable/High quality
Size :
Refer to the specification
Service :
ODM/OEM is accpetable
Description

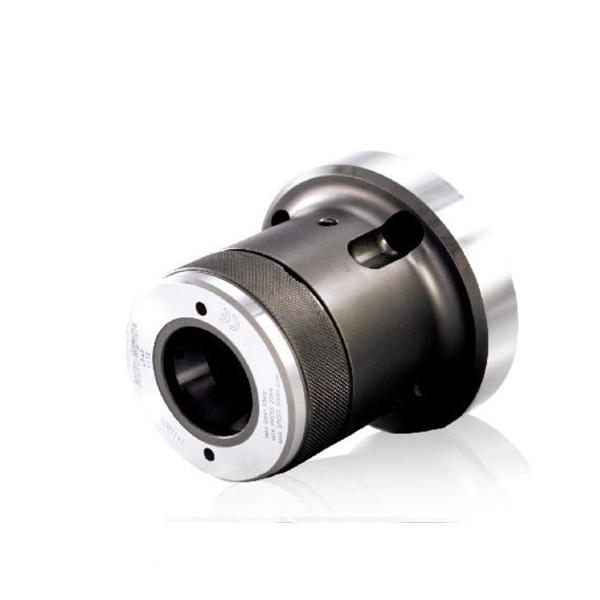

Collet chuck for short taper mount

Collet chucks with bayonet catch are mainly used for chucking bar work on NC / CNC lathes.
The bar can be fed in through the chuck.
Profiles can also be chucked with the appropriate collets.

CR Collet chuck for short taper mount

UNIT : mm

SPEC
Model		 Matching
Spindle		 Bar
Capacity
(mm)		 Sleeve
Stroke
(mm)		 Max.Push
Force
KN(kgf)		 Max.Gripping
Force
KN(kgf)		 Max.Speed
(r.p.m.)		 Weight
(kg)
CR26A4 A2-4 26 5 20 (2039) 44 (4486) 7000 4.5
CR30A4 A2-4 30 5 20 (2039) 44 (4486) 7000 4.1
CR42A5 A2-5 42 7 25 (2549) 55 (5608) 6000 6.2
CR42A6 A2-6 42 7 25 (2549) 55 (5608) 6000 8.2
CR52A6 A2-6 52 7 30 (3059) 65 (6628) 5000 12.2
CR60A6 A2-6 60 7 30 (3059) 65 (6628) 5000 13
CR80A8 A2-8 80 7 35 (3568) 73 (7443) 4000 21

DIM
Model		 A B C D E F G H Jmax. K N P T
CR26A4 112 103.5 85 30 82.55 63.513 M50xP1.5 45 M40xP1.5 15 21.7 3-M10 2.3
CR30A4 112 103.5 85 30 82.55 63.513 M50xP1.5 45 M40xP1.5 15 21.7 3-M10 2.3
CR42A5 135 124 100 27 104.78 82.563 M66xP1.5 60 M55xP2.0 25 27.4 4-M10 3.1
CR42A6 170 124 100 32 133.35 106.375 M66xP1.5 66 M60xP2.0 22 27.4 4-M12 3.1
CR52A6 170 144 130 27 133.35 106.375 M90xP1.5 66.7 M74xP2.0 30 29.9 4-M12 3.1
CR60A6 170 145 130 27 133.35 106.375 M90xP1.5 80 M74xP2.0 30 29.9 4-M12 3.1
CR80A8 220 170 156 35 171.45 139.719 M114xP2.0 99 M90xP2.0 27.5 32.4 6-M16 6.1

Capacities
CHUCK		 MULTIBORE SPRING COLLET
NO. Cat.No./round /hex. / Sq. Cat.No./round /hex. / Sq.
CR26 M-667 / 26 / 22 / 18 161E / 8744 / 30 / 26 / 18
CR30 M-669 / 30 / 26 / 21 163E / 4249 / 30 / 26 / 21
CR42 M-673 / 42 / 36 / 30 173E / 4728 / 42 / 36 / 30
CR52 177E / 52 / 45 / 36
CR60 M-677 / 60 / 52 / 42 185E / 4291 / 60 / 52 / 42
CR80 J-660 / 80 / 69 / 56 193E / H-47 / 80 / 69 / 56


*Uses the collet to DIN6343 specification.
