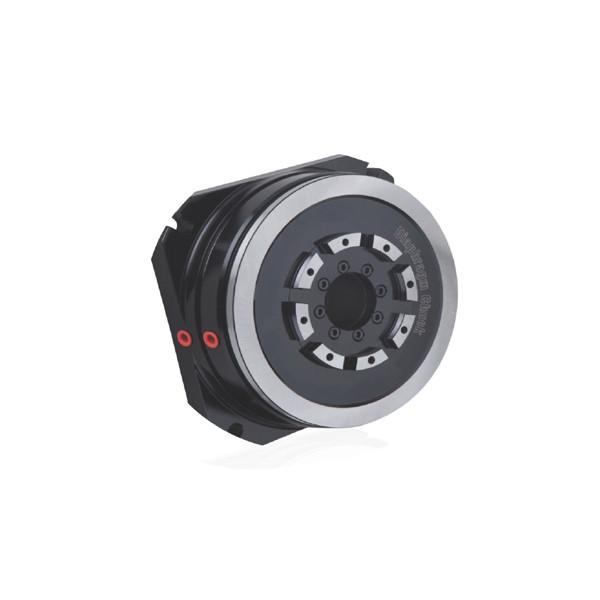

JDS SERIES DIAPHRAGM STATIONARY CHUCK
JDS SERIES DIAPHRAGM STATIONARY CHUCK
Specifications
Brand Name :
NTH
Model Number :
JDS-60,JDS-100,JD-60,JD-100
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
T/T, Western Union
Supply Ability :
1000sets/M
Delivery Time :
3 work days available
Packaging Details :
Good and firm package is suitable for sea and air shipping
Price :
Negotiation
Product name :
JDS SERIES DIAPHRAGM STATIONARY CHUCK
Material :
Cast steel
Usage :
Fixture/Gripping
Feature :
High precision/Stable/High quality
Size :
Refer to the specification
Service :
ODM/OEM is accpetable
Description

JDS SERIES DIAPHRAGM STATIONARY CHUCK

Brand:NTH

​JDS SERIES DIAPHRAGM STATIONARY CHUCK


Steel body,Super long working life
Big through hole,can meet 40mm
Stepless clamping,the clamping force can be fine adjusted
It can be applied for clamping out diameter and expanding internal diameter
After changing the diaphragm jaw,no need recheck the accuracy
High resistant to cutting chips,fluid and dust

JDS SERIES DIAPHRAGM STATIONARY CHUCK

Unit:mm

Model
Spec
Kg/cm2
Diaphragm
N.W.Kg
 A B C D E F G H I J K
JDS-60 0.5-7 JD-60 3.5 118 115 60 44.5 48 20 90 4 97 9 118
JDS-100 0.5-7 JD-100 10 188 185 100 55 59.5 40 155 5 153 11 190

Subject to technology changes without prior information
Non-standard requirements can be made
