4kw Vibrating Screen Machine
4kw Vibrating Screen Machine
4kw Vibrating Screen Machine
4kw Vibrating Screen Machine
4kw Vibrating Screen Machine
4kw Vibrating Screen Machine
Specifications
Brand Name :
Shanghai banghuai Heavy Industry Machinery Co., Ltd
Model Number :
2Y1548
Certification :
ISO9001
Place of Origin :
Shanghai
MOQ :
1
Price :
Price negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Supply Ability :
100
Feed size :
0-400mm
Feeding capacity :
150-700T/h
Applicable materials :
Various ores
Applications fields :
Screening of sand and gravel
Power (kW) :
4-37
Vibration Frequency(r/min) :
730
Layers Of Screen :
2 or 3
Description

Product description

2Y1548​ Model series vibrating screen sand making screening beneficiation belt conveyor ore crusher

1, Description

The circular vibrating screen is manufactured with a solid structure and is designed with an inclination of 15-20 degrees. It is especially suitable for screening rough stones or ore.

This machine can adjust the weight of the eccentric block to meet its needs. This model has a 15-20 degree inclination and the action of gravity, so compared with a horizontal vibrating screen, it requires less driving force, but it can produce a powerful screening effect.

2, Technical Parameters
Model Layers of screen Mesh size (mm) Maximum feedsize (mm) Processing power (t/h) Double amplitude (mm) Power (kW) Vibration frequency Screen surface specifications (mm)
(r/min)
2Y-1237 2 3-50 200 7.5-80 8 4-15 970 1200×3700
2Y-1548 2 5-50 400 50-208 8 4-15 970 1500×4800
3Y-1548 3 5-50 400 50-250 8 4-15 970 1500×4800
2Y-1848 2 5-80 400 50-260 8 4-18.5 970 1800×4800
3Y-1848 3 5-80 400 50-300 8 4-18.5 970 1800×4800
2Y-1860 2 5-80 400 50-300 8 4-18.5 970 1800×6000
3Y-1860 3 5-80 400 50-350 8 4-22 970 1800×6000
2Y-2160 2 5-150 400 100-500 6-8 4-22 730 2100×6000
3Y-2160 3 5-100 400 100-500 6-8 4-30 730 2100×6000
2Y-2460 2 5-150 400 150-700 6-8 4-37 730 2400×6000
3Y-2460 3 5-150 400 150-700 6-8 4-37 730 2400×6000

3, Product advantages

1. Advanced structure

2. Has many uses

3. Low power consumption and low noise

4. Advanced technology

5. Large processing capacity

4, Working principle

4kw Vibrating Screen Machine

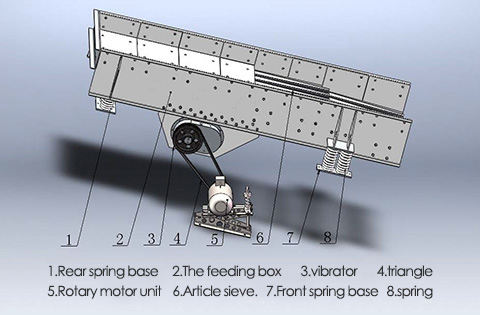

Y Series vibrating screening equipment screen machine mainly consists of screen box, screen mesh, vibrator, damping spring device, chassis and so on. The side plate of the screen is made of high-quality steel plate, and the side plate is connected with the beam and the base of the exciter with high-strength bolts or ring-groove rivets. A cylindrical eccentric shaft exciter and an offset block are used to adjust the amplitude.

5, Factory manufacturing and scene

4kw Vibrating Screen Machine

4kw Vibrating Screen Machine

4kw Vibrating Screen Machine
