Specifications
Payment Terms :
T/T,L/C,Western Union
Article Code :
480102 SL1/5 SPUF2W
Standard Width :
2000 mm
Fabric Layers :
2
Ambient Temperature :
-20C to 120C
MOQ :
1 square meter
Packaging Details :
Wrapped with stretched film, packed in wooden pallets, export-grade
Brand Name :
JARULAN
Surface Material :
Silicone
Delivery Time :
15-20 days for production
Bottom Material :
Polyester Fabric (PU impregnated)
Color :
White
Minimum Pulley Diameter (Back) :
40 mm
Price :
USD 12-38 / Square Meter
Supply Ability :
50000 Square Meters per Month
Max Short Temperature :
-40C to 150C
Total Thickness :
1.5 mm (0.059 inch)
Force at 1% Elongation :
8 N/mm (44.8 lbf/in)
Minimum Pulley Diameter (Normal) :
20 mm
Release Property :
Non-stick / anti-stick
Weight approx. :
1.4 kg/m2 (0.287 lb/ft2)
Surface Hardness :
70 Shore
Standard Length :
100m/roll
Belt Type :
Silicone Conveyor Belt
Maximum Width :
3000 mm
Model Number :
480102 SL1/5 SPUF2W
Place of Origin :
China
Top Thickness :
0.3 mm
Certification :
FDA 21 CFR 175.300 / EU 1935/2004 & 10/2011
Middle Material :
PU
Application :
Food industry
Description

480102 SL1/5 SPUF2W Non-Stick Silicone Conveyor Belt

This white food-grade silicone conveyor belt (article code 480102 SL1/5 SPUF2W) is engineered with a non-stick silicone top surface and a PU middle layer over a polyester fabric carcass. The anti-stick cover delivers clean, low-residue release of sticky food products while remaining heat resistant and chemically stable.

Non-Stick Performance

  • Non-stick (anti-stick) silicone surface - food and sticky materials release cleanly with minimal residue, reducing downtime for cleaning.
  • Super-low surface energy on the silicone cover for easy release of dough, baked goods, candies, meat and other sticky products.
  • Food-contact safe: FDA 21 CFR 175.300 and EU (EC) No 1935/2004 & (EU) No 10/2011 compliant.
  • Stable release performance across the full working temperature range, no softening, no odour, no transfer.

Belt Data

Article Code480102 SL1/5 SPUF2W
ColorWhite
Tension MemberPolyester Fabric
Fabric Layer(s)2
Total Thickness1.5 mm (0.059 inch)
Weight approx.1.4 kg/m² (0.287 lb/ft²)
Standard Width2000 mm (78.7 inch)
Maximum Width3000 mm (118.1 inch)

Structure

Top SideSilicone, smooth, white - Thickness 0.3 mm, Hardness 70 Shore, Heat resistant -20°C to 150°C
Middle SidePU, white
Bottom SidePolyester Fabric, impregnated PU

Belt Characteristics

  • Force at 1% elongation: 8 N/mm (44.8 lbf/in)
  • Laterally stable
  • Ambient temperature: -20°C to 120°C
  • Max. temperature (short): -40°C to 150°C

Material Features

Cold resistant | High conductivity | Antistatic | Flame retardant | Foodgrade FDA (21 CFR 175.300) | Foodgrade EU ((EC) No 1935/2004 & (EU) No 10/2011) | Oil & Fat resistant | Foodgrade Other | Anti-bacteria / Hydrolysis resistant | Heat resistant | Chemically resistant | Acid/base/salt resistant | anti-stick

Minimum Pulley Diameters

  • Normal flexing: 20 mm (0.787 inch)
  • Back flexing: 40 mm (1.575 inch)

Application

Food industry - baking, dough handling, confectionery, meat and sticky product conveying lines.

Contact us for custom widths, lengths and ply structures.

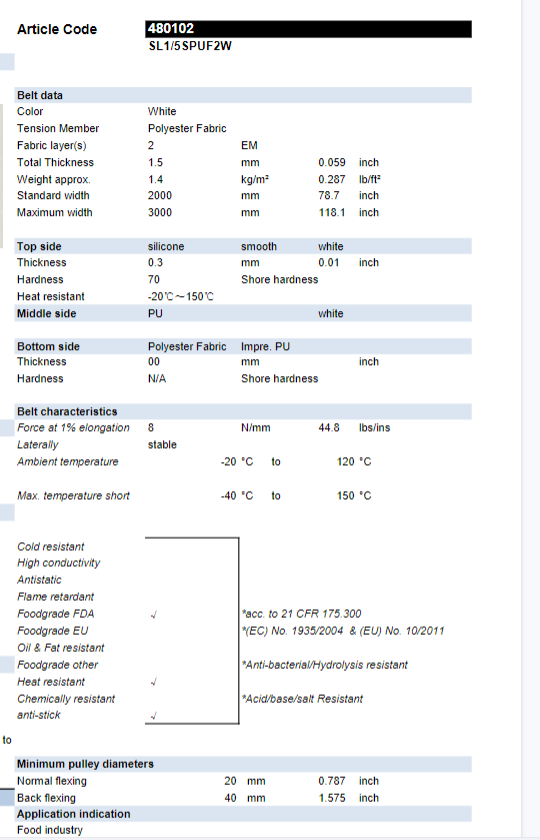

Specification Sheet
