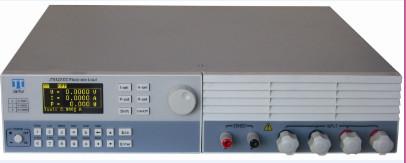

JT6322A 1200W/150V/240A, DC Electronic Load,.high accuary.charger test,battery test. fuel cell.
JT6322A 1200W/150V/240A, DC Electronic Load,.high accuary.charger test,battery test. fuel cell.
Specifications
Place of Origin :
nanjing,china
Brand Name :
Jartul
Certification :
CE
Model Number :
JT6322A
MOQ :
1pc
Packaging Details :
1pc per carton
Delivery Time :
3 days
Payment Terms :
T/T
Supply Ability :
150pcs/month
Description
model JT6322A
Input Rating power 1200W
voltage 0~15V 0~150V
current 0~24A 0~240A
Min operating voltage 1.4V@240A

CC

model

 Range 0~24A 0~240A
Resolution 0.5mA 5mA
Accuracy 0.03%+0.05%FS

CV

model

 Range 0~15V 0~150V
Resolution 0.2mV 2mV
Accuracy 0.03%+0.03%FS

CP

model

 Range 1200W
Resolution 16Bits
Accuracy 0.1%+0.1%FS

CR

model

 Range 0.006Ω~25KΩ
Resolution 16Bits
Accuracy (0.1+0.08R)%
LED model Bandwidth 100kHz above
Rdcoefficient range 0.001~1

Dynamic

Operation

mode

 Range 10uS~50S
Resolution 2uS
Accuracy 1uS+20PPM
Slew rate 4.8A/mS~9.6A/uS

Voltage

Meas.

 range 0~15V 0~150V
Resolution 0.1mV 1mV
Accuracy 0.02%+0.03%FS

Current

Meas.

 range 0~24A 0~240A
Resolution 0.1mA 1mA
Accuracy 0.03%+0.05%FS

Ripple

Meas.

 range 0~15V 0~150V
bandwidth 10Hz~100kHz
Resolution 1mV 10mV
