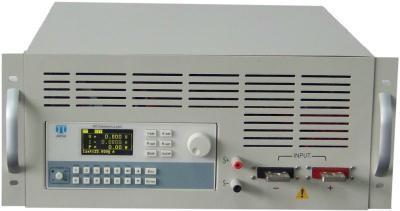

JT6334A 1800W/500V/180A, dc Electronic Load. test fuel cell,power supply and battery. fuel cell test
JT6334A 1800W/500V/180A, dc Electronic Load. test fuel cell,power supply and battery. fuel cell test
Specifications
Place of Origin :
nanjing,china
Brand Name :
Jartul
Certification :
CE
Model Number :
JT6334A
MOQ :
1pc
Packaging Details :
1pc per carton
Delivery Time :
3 days
Payment Terms :
100% T/T in advance
Supply Ability :
50pcs/month
Description
Model JT6334A
Input Rating Power 1800W
Voltage 0~50V 0~500V
Current 0~18A 0~180A
Min. operating voltage 2.8V@180A
CC Mode Range 0~18A 0~180A
Resolution 1mA 10mA
Accuracy 0.05%+0.05%FS
CV Mode Range 0~50V 0~500V
Resolution 0.5mV 5mV
Accuracy 0.03%+0.03%FS
CP Mode Range 1800W
Resolution 16Bits
Accuracy 0.1%+0.1%FS
CR Mode Range 0.016Ω~50KΩ
Resolution 16Bits
Accuracy (0.1+0.06R)%
LED Mode Bandwidth 100kHz above
Rd Coefficient Range 0.001~1
Dynamic Operation Mode Range 10uS~50S
Resolution 2uS
Accuracy 1uS+20PPM
Slew rate 3.6A/mS~18A/uS
Voltage Meas. Range 0~50V 0~500V
Resolution 0.1mV 1mV
Accuracy 0.03%+0.03%FS
Current Meas. Range 0~18A 0~180A
Resolution 1mA 10mA
Accuracy 0.05%+0.05%FS
