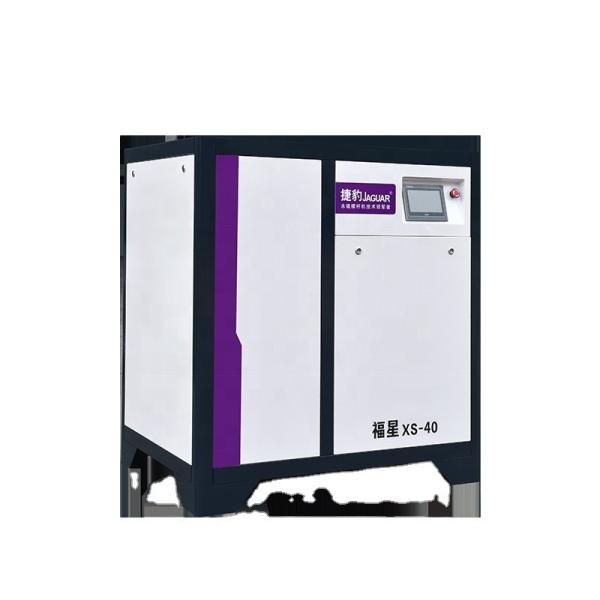

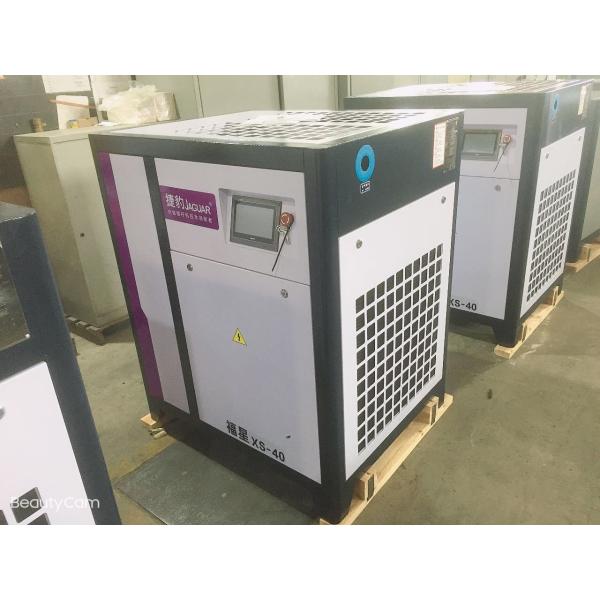

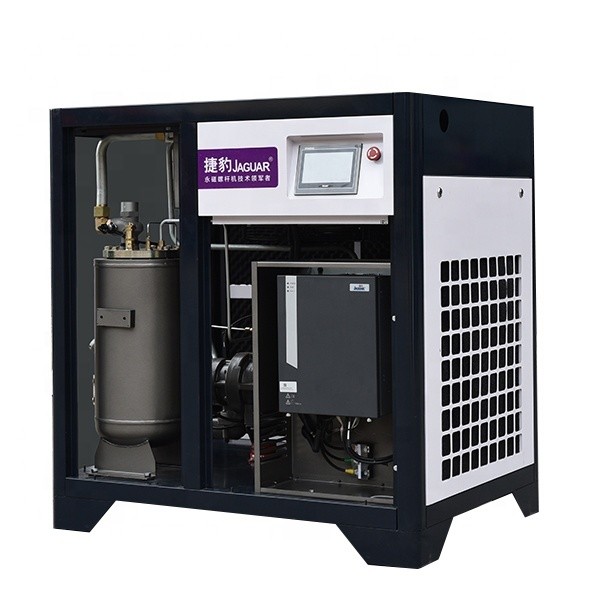

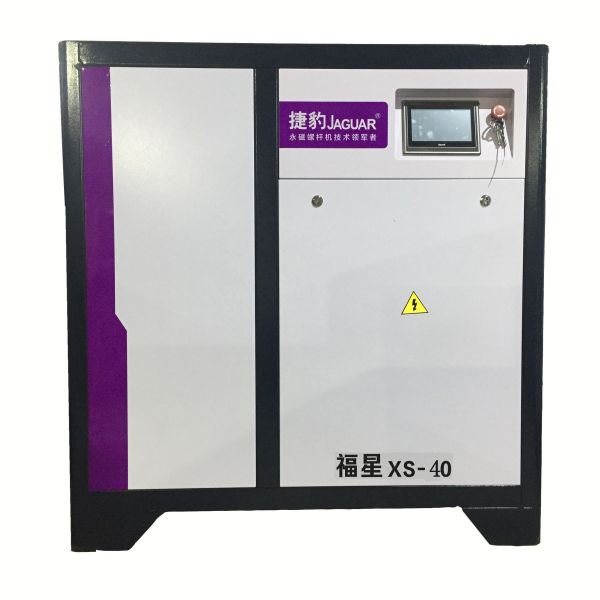

Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Specifications
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location :
None
Condition :
New, New
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Place of Origin :
Fujian, China
Brand Name :
JAGUAR
Model Number :
XS-40
Voltage :
415V/380V/220V/60HZ/50HZ
Dimension(L*W*H) :
1100*900*1300
Weight :
512KG
Warranty :
1 Year
Working Pressure :
7 bar
Air capacity :
5.1 m3/min
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2019
Warranty of core components :
1 Year
Core Components :
PLC, Pressure vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox
Gas Type :
Air
After Warranty Service :
Online support
After-sales Service Provided :
Online support
Certification :
ISO9001/ASME/ISO45001/ISO14001/GCCA/SAQM/CMIIT
Price :
$7,752.00/pieces 1-4 pieces
MOQ :
1 set
Description
Products Description
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Permanent magnet screw compressor of XS series
XS type inverter compressor has many advantages like powerful pressure, large discharge, high quality air, low noise, automatic frequency system, etc. The new exterior also uses coaxial transmission, which bringing about transmission lossless and efficiency improved, the variable frequency takes stable electronic current to save energy and achieve environmental protection.

Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity

1. IE4 permanent magnet frequency motor.
IE4 uses rare earth materials, compact structure, small size, light weight and the motor’s running speed changes by requirements.

2. IP65 liquid permanent magnet motor.
IP65 fully sealed protection comprehensively protects the safety of the permanent magnet motor, which assures the reliability of the motor.

3. JAGUAR director connection bearing
According to the condition of the main machine, we choose high-quality bearings to improve the bearing capacity, the main machine is stable, and the machine life is greatly increased.
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity

4. JAGUAR cooler.
In high temperature and hard environment, JAGUAR cooler can ensure the operation of the air compressor, therefore it expresses superior performance and resistance.

5. JAGUAR filter.
The unique air intake system effectively prevents dust from entering the machine, filters the pollution in the air, and ensures air quality.
Manufacturing Technique
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Product Paramenters
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Company Profile
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Company Introduction
Xiamen East Asia Machinery Industrial Co., Ltd. is a large-scale professional compressors manufacturer invested by Taiwan and the compressor brand is called JAGUAR. With its constant efforts and renovation, over 30 years’ experience of air compressor manufacturing, it provides outstanding compress air solutions for global customers by its JAGUAR brand air compressor, refrigerated air dryer, adsorption air dryer, and air tank.

Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
In the present, hundreds of thousands of JAGUAR compressors are operating around the world. JAGUAR has a 30-year history and obtained many patents as well as certificates. Our research team has continuously developed and invested extremely in our product research. Furthermore, our management has strictly implementation in each process to ensure every product can reach standard and good quality.
JAGUAR is setting up for global network dealers, we want to provide excellent performance and customer service, therefore our professional sales team and technical service team will be always at your service.
Certifications
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Product Application
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Customer Photos
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Exhibition
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
Stable Work and Energy Saving 40HP Screw Air Compressor with 512KG Screw Capacity
