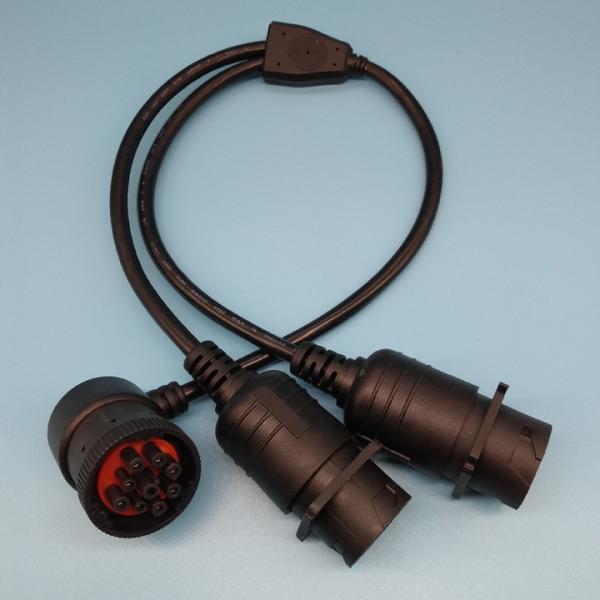

Right Angle J1939 Deutsch 9 Pin Female to Dual Deutsch 9-Pin Male Y Cable
Right Angle J1939 Deutsch 9 Pin Female to Dual Deutsch 9-Pin Male Y Cable
Right Angle J1939 Deutsch 9 Pin Female to Dual Deutsch 9-Pin Male Y Cable
Right Angle J1939 Deutsch 9 Pin Female to Dual Deutsch 9-Pin Male Y Cable
Specifications
Brand Name :
OEM
Model Number :
J1939
Certification :
RoHS
Place of Origin :
China
MOQ :
100 pcs
Price :
Please email us for prices
Payment Terms :
T/T, Payoneer, Western Union, PayPal, L/C
Supply Ability :
50,000 pcs per month
Delivery Time :
3-30 working days
Packaging Details :
PE bags and then cartons
Wire :
20AWG, pure copper
Warranty :
1 year
Pin assignment or pin out :
customized
J1939 female plug :
equivalent of Deutsch HD16-9-1939S
Type of J1939 female plug :
Type 1
J1939 Male plugs :
equivalent of Deutsch HD10-9-1939P
Type of J1939 male plugs :
Type 1
Description

Right Angle J1939 Deutsch 9 Pin Female to Dual Deutsch 9-Pin Male Y Cable


Specification

J1939 female plug equivalent of Deutsch HD16-9-1939S
Type of J1939 female plug Type 1
J1939 male plugs equivalent of Deutsch HD10-9-1939P
Type of J1939 male plugs Type 1
Wire 20AWG, pure copper
Material of J1939 plugs PA66 + glass fiber
Pin assignment or pin out customized
Cable length customized
Warranty 1 year

The end of J1939 female and male plugs can be overmolded or not, according to your needs.

Right Angle J1939 Deutsch 9 Pin Female to Dual Deutsch 9-Pin Male Y Cable

Overmolded

Right Angle J1939 Deutsch 9 Pin Female to Dual Deutsch 9-Pin Male Y Cable

Not overmolded

The J1939 male plug is Type 1, so its Pin F is with bigger diameter. Type 1 J1939 male plugs can be compatible with Type 1 or Type 2 J1939 female plugs.

Right Angle J1939 Deutsch 9 Pin Female to Dual Deutsch 9-Pin Male Y Cable




Pin assignment or pin out

Generally speaking, all 9 pins of the J1939 male and female connectors are connected.
The pin assignment or pin out can be customized according to your needs.


Application

There is only one J1939 diagnostic port in a heavy duty commercial vehicle. If you want to connect two devices with J1939 port, this J1939 Deutsch 9 Pin Female to Dual Deutsch 9-Pin Male Y Cable is needed. Some telematics, fleet management or trucking devices can be connected to the J1939 male port through this cable.


Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.

Skype: orchard.guo (any time to contact)
