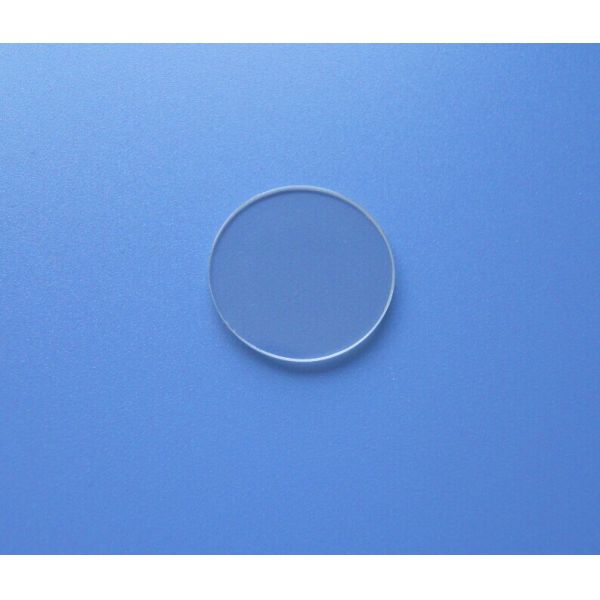

Ce:YAP scintillation crystal, YAP scintillator
Ce:YAP scintillation crystal, YAP scintillator
Specifications
Place of Origin :
China
Brand Name :
KH-Crystal
Certification :
ISO9001
Description

Yttrium aluminum doping cerium is a fast, mechanically strong and chemically resistant scintillation material. Mechanical properties enable precise machining and entrance windows can be made with a very thin aluminum layer deposited directly on the entrance surface of the crystal. YAP:Ce scintillators have very low energy secondary X-ray emissions which makes them desirable for imagining applications. YAP:Ce detectors are used for gamma and X-ray counting, electron microscopy, electron and X-ray imaging screens, and tomography systems.

Properties:

Afterglow (% @6msec)
<0.005
Cleavage Planes
NIL
Decay Constant (ns)
25
Density (g.cm-3)
5.4
Emission Spectral Range (nm)
325 to 425
Melting Point
1875
Peak Scintillation Wavelength (nm)
350
Photons/MeV
10000
Radiation Length (cm)
2.7
Refractive Index at peak emission
1.95
Stability
Good
Structure
Rhombic
Temperature Coefficient of Light Output
-0.1
Water Solubility (g/100g H2O)
NIL
