High Performance CAT6 SFTP Shielded LAN Cable LSZH Jacket For Security And Home
High Performance CAT6 SFTP Shielded LAN Cable LSZH Jacket For Security And Home
High Performance CAT6 SFTP Shielded LAN Cable LSZH Jacket For Security And Home
High Performance CAT6 SFTP Shielded LAN Cable LSZH Jacket For Security And Home
High Performance CAT6 SFTP Shielded LAN Cable LSZH Jacket For Security And Home
High Performance CAT6 SFTP Shielded LAN Cable LSZH Jacket For Security And Home
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT6SF-016
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
ShenZhen
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Inner box size: 32 cm × 32 cm × 18.5 cm Outer box size: 39 cm × 33.5 cm × 34 cm
Cable Type :
CAT6
Category :
Networking Cable
Conductor Material :
Copper
Shielding Type :
SFTP
Conductor Size :
23AWG
Color :
Orange
Jacket Material :
PVC
Length :
1000ft
Description

High Performance CAT6 SFTP Shielded LAN Cable LSZH Jacket For Security And Home



Product Description:

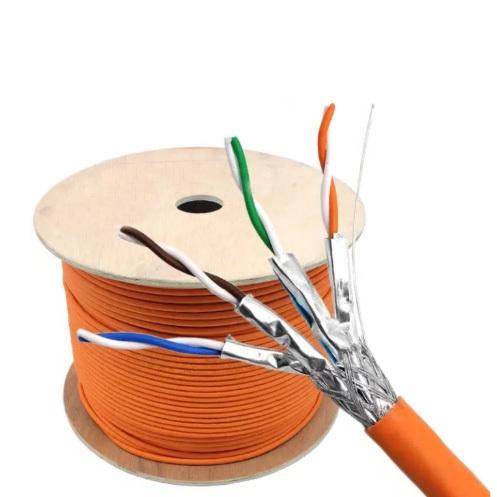

The INTEGRITY ITI-CT6SF-016 CAT6 SFTP Ethernet cable is engineered for reliable high-speed networking in demanding environments. With solid oxygen-free copper conductors and a cross PE separator, this cable delivers 1Gbps transmission and 250MHz bandwidth over 90 meters.The CAT6 SFTP shielded twisted pair structure uses aluminum foil plus braided shielding, providing up to 90dB EMI resistance, ideal for industrial facilities, security camera systems, data centers, and commercial LAN networks. Its LSZH jacket ensure safe indoor installation while maintaining flexibility.

  • High-Speed Transmission – 1Gbps and 250MHz for smooth, stable connections.

  • Shielded SFTP Design – Protects against electromagnetic interference and enhances signal security.

  • Solid Copper Conductor – Delivers superior durability and low signal loss.

  • Versatile Applications – Perfect for industrial networking, CCTV, office LAN, and home cabling.

  • LSZH Jacket – Low Smoke Zero Halogen material reduces toxic emissions during combustion, ideal for indoor environments requiring enhanced fire safety and low-smoke performance.

Technical Parameters:

Transmission Properties
CAT 6 ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013



No.


Frequency


Attenuation (Max)

 Propagation Delay (MAX) Propagation Delay Skew (MAX)


Return Loss (Min)


NEXT (Min)


PS NEXT (Min)


EL-FEXT (Min)


PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 3.78 552 45 23.01 66.27 63.27 55.96 52.96
2 8 5.32 546.73 45 24.52 61.75 58.75 49.94 46.94
3 10 5.95 545.38 45 25 60.3 57.3 48 45
4 16 7.55 543 45 25 57.24 54.24 43.92 40.92
5 20 8.47 542.05 45 25 55.78 52.78 41.98 38.98
6 25 9.51 541.2 45 24.32 54.33 51.33 40.04 37.04
7 31.25 10.67 540.44 45 23.64 52.88 49.88 38.1 35.1
8 50 13.66 539.09 45 22.21 49.82 46.82 34.02 31.02
9 62.5 15.38 538.55 45 21.54 48.36 45.36 32.08 29.08
10 100 19.8 537.6 45 20.11 45.3 42.3 28 25
11 125 22.36 537.22 45 19.43 43.85 40.85 26.06 23.06
12 200 28.98 536.55 45 18 40.78 37.78 21.98 18.98
13 250 32.85 536.28 45 17.32 39.33 36.33 20.04 17.04
14








15








16








17








18








Remarks: ＊ are the reference values.


Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min


NF EN 50289-1-3 / IEC 61196-1-105


No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


NF EN 50289-1-4 / IEC 60885-1

 >1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC



Applications:

  • Industrial Networking and Factory Cabling – The CAT6 SFTP shielded LAN cable provides stable 1Gbps performance and resists EMI for manufacturing environments.
  • Security and CCTV Installations – Ideal for security camera systems and IP surveillance networks requiring low signal interference.
  • Data Centers and Server Rooms – Supports structured cabling systems with solid copper and 250MHz bandwidth for reliable gigabit networking.
  • Commercial and Office LAN Wiring – Perfect for business LANs, offering enhanced data protection and long-term durability.
  • Residential and Gaming Networks – The LSZH CAT6 SFTP indoor Ethernet cable ensures safe and flexible home networking or gaming room setups.
