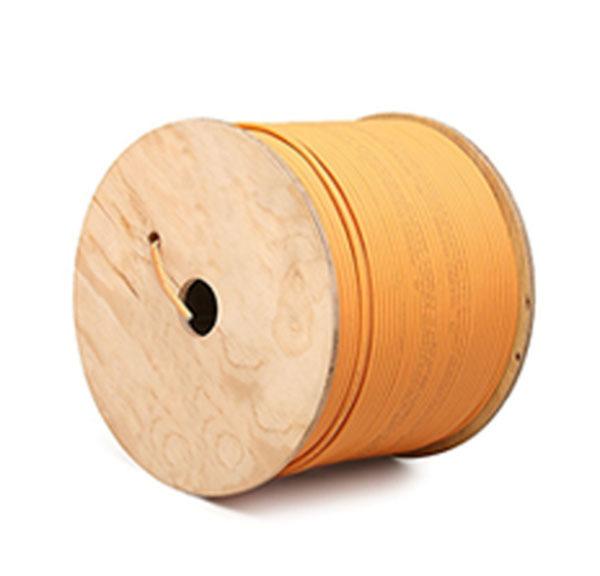

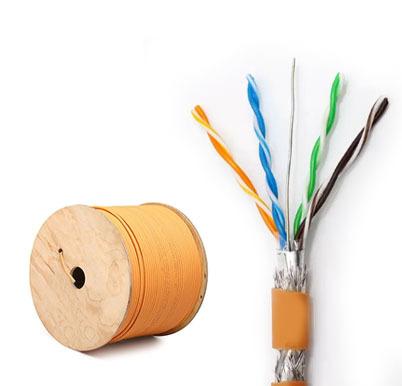

CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable
CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable
CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable
CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable
CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable
CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5SF-025
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45Days
Packaging Details :
Color Box+Packing Box 28*28*12cm
Jacket Material :
PVC
Cable Shielding :
SFTP
Color :
Orange
Conductor Gauge :
24AWG
Conductor Amaterial :
Bare Copper
Connector Type :
RJ45
Shielding :
Foil
Data Transfer Rate :
100 Mbps
Description

CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable


Product Description:

The INTEGRITY ITI-CT5SF-025 CAT5E SFTP LSZH Ethernet Cable is a premium shielded foiled twisted pair LAN cable engineered for high-performance networking across industrial, commercial, and residential environments. With its 24AWG pure copper conductors, dual shielding design, and a durable orange LSZH jacket, this 500ft CAT5E SFTP LSZH cable provides unmatched reliability, safety, and flexibility for modern infrastructure.


Key Features:

  • High-Speed Data Transmission – Delivers stable 100MHz bandwidth supporting gigabit Ethernet, VoIP, cloud computing, and video surveillance with minimal latency.
  • Shielded Foiled Twisted Pair (SFTP) Construction – Dual-layer shielding (foil + braid) ensures maximum protection against electromagnetic interference (EMI) and radio frequency interference (RFI), critical for noisy environments like server rooms and industrial sites.
  • LSZH Fire-Safe Jacket – The Low-Smoke Zero-Halogen orange jacket minimizes toxic emissions and smoke generation in case of fire, making it compliant with strict safety standards for schools, hospitals, and data centers.
  • Durable 24AWG Pure Copper Conductors – Ensures low signal loss over long distances, providing reliable gigabit connectivity for up to 500ft runs.
  • Industrial & Commercial Grade – Designed for data centers, telecom rooms, security monitoring, and manufacturing facilities, resistant to heat, abrasion, and environmental stress.
  • Future-Proof Networking Solution – Compatible with existing CAT5E infrastructure while offering enhanced shielding and safety features, ensuring compliance with evolving fire and building codes.
  • Easy Cable Management – The bright orange LSZH jacket makes installation, routing, and maintenance straightforward in complex wiring systems.
  • Eco-Friendly Design – Halogen-free composition reduces environmental impact while ensuring safe disposal and sustainability.
  • Versatile Applications – Ideal for enterprise IT networks, home gigabit internet setups, smart office solutions, and industrial automation systems.
  • Factory-Direct Reliability – Manufactured under strict quality standards, ensuring consistent performance for both wholesale distribution and large-scale installations.

Technical Parameters:

Product Description:

CAT5E SFTP LSZH Ethernet Cable 24AWG Orange Shielded Foiled Fire Safe LAN Cable
Rev.: A ECN Description:
Construction Item Description Electrical Property


Conductor


Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%






Insulation


Material


HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


>1500 MΩ / 100m
OD 1.05 ± 0.02 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.24 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m




Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min


No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown



insulation

 elongation before aging ≥ 300%



Pair Twist



Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)



jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa


Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D Master Carton NA
Drain Wire Tinned Copper




Outside Shield

 Shield Shield
Construction /
Material Polyester film/Aluminium Foil (PET/ALU)
Coverage ≥ 115%





Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81 ± 3
OD 6.5 ± 0.2
Average THK 0.50 ~ 0.60


Color

 Orange
Marking Color

according to the customer's

requirements
Marking

according to the customer's

requirements



Transmission Properties
CAT5e ANSI/TIA-568.2-D; IEC 61156-6; YD/T1019-2013



No.


Frequency


Attenuation (Max)

Propagation Delay

(MAX)

Propagation Delay Skew

(MAX)


Return Loss (Min)


NEXT (Min)


PS NEXT (Min)


EL-FEXT (Min)


PS EL-FEXT (Min)
MHz dB/100m ns/100m ns/100m dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m) dB(on 100m)
1 4 4.05 552 45 23.01 56.27 53.27 51.96 48.96
2 8 5.77 546.73 45 24.52 51.75 48.75 45.94 42.94
3 10 6.47 545.38 45 25 50.3 47.3 44 41
4 16 8.25 543 45 25 47.24 44.24 39.92 36.92
5 20 9.27 542.05 45 25 45.78 42.78 37.98 34.98
6 25 10.42 541.2 45 24.32 44.33 41.33 36.04 33.04
7 31.25 11.72 540.44 45 23.64 42.88 39.88 34.1 31.1
8 50 15.07 539.09 45 22.21 39.82 36.82 30.02 27.02
9 62.5 16.99 538.55 45 21.54 38.36 35.36 28.08 25.08
10 100 21.98 537.6 45 20.11 35.3 32.3 24 21
11








12








13








14








Remarks: ＊ are the reference values

Applications:

The INTEGRITY ITI-CT5SF-025 CAT5E SFTP LSZH cable is engineered for versatile deployment in environments where fire safety, EMI protection, and long-distance stability are critical.

  • Data Centers & Server Rooms – Provides stable gigabit Ethernet connections with SFTP shielding that reduces crosstalk and interference from dense electrical equipment.
  • Industrial & Manufacturing Facilities – Withstands noise from motors and generators, while the LSZH fire-safe jacket resists heat, abrasion, and chemical exposure.
  • Commercial Buildings & Campuses – Meets building code compliance with halogen-free LSZH material, suitable for schools, hospitals, and office networks.
  • Home Networking & Smart Office Setups – Ideal for 500ft structured cabling, supporting gigabit internet for PCs, routers, printers, smart TVs, and IoT devices.
  • Security & Surveillance Systems – Ensures uninterrupted video transmission for IP cameras, access control, and monitoring systems with low signal loss 24AWG conductors.
  • Whether you need a 500ft CAT5E LSZH shielded Ethernet cable for enterprise infrastructure, a fire-resistant CAT5E LAN cable for commercial use, or a durable industrial-grade CAT5E SFTP cable for factories, the ITI-CT5SF-025 is built to deliver.
