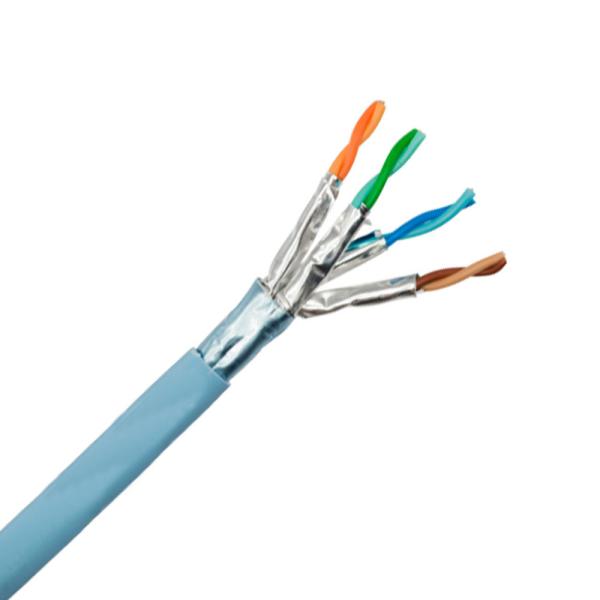

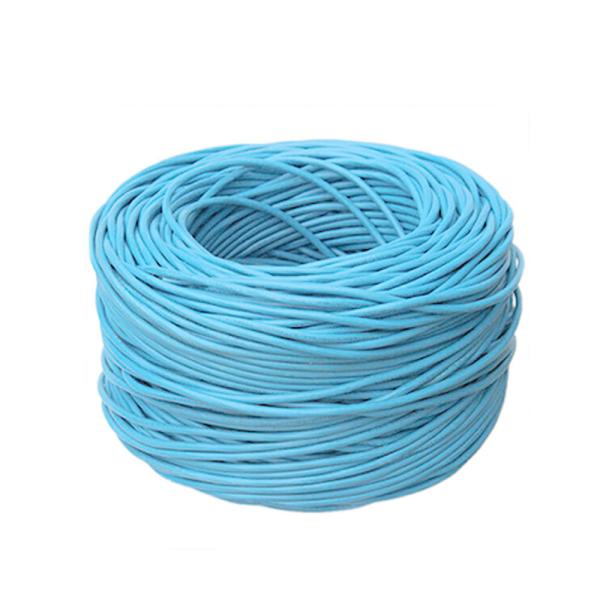

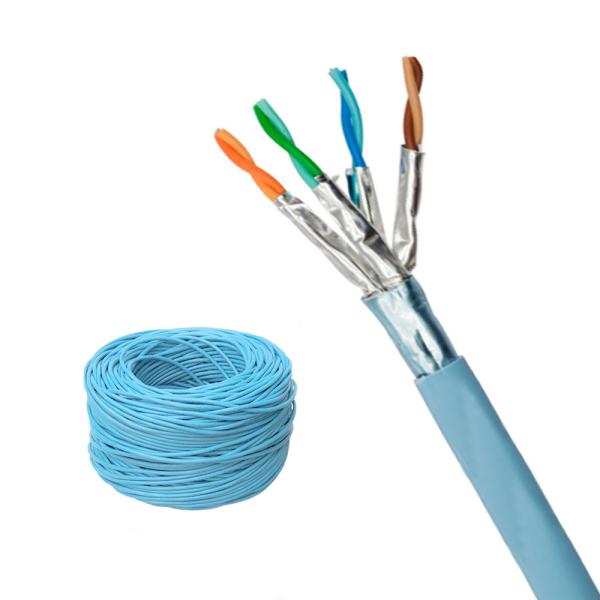

FFTP CAT6 LSZH 10Gbps High Performance Network Cable Built For Reliable Long Run Installations
FFTP CAT6 LSZH 10Gbps High Performance Network Cable Built For Reliable Long Run Installations
FFTP CAT6 LSZH 10Gbps High Performance Network Cable Built For Reliable Long Run Installations
FFTP CAT6 LSZH 10Gbps High Performance Network Cable Built For Reliable Long Run Installations
FFTP CAT6 LSZH 10Gbps High Performance Network Cable Built For Reliable Long Run Installations
FFTP CAT6 LSZH 10Gbps High Performance Network Cable Built For Reliable Long Run Installations
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CTF6A-013
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
1000pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Wooden shaft packaging 40*26*20cm Outer box size：42*42*22cm
Category :
CAT6A
Cable Type :
FFTP
Jacket Material :
LSZH
Conductor Size :
23AWG
Length :
1000Ft
Frequency :
500MHz
Insulation Material :
HDPE
Color :
Blue
Description

CAT6A FFTP 23AWG Blue LSZH 10Gbps High Speed Network Cable 1000Ft

Product Description:

This ITI CTF6A 013 FFTP CAT6 LSZH 23AWG 1000Ft cable is engineered for demanding networks and installers needing long runs and safety The FFTP CAT6 shielding and LSZH jacket protect against interference and fire hazards The HDPE insulation plus 23AWG conductors preserve throughput and reliability for 10Gbps links Installers and integrators choose ITI CTF6A 013 for proven CAT6 FFTP LSZH performance across factories data centers and enterprise sites ITI CTF6A 013 is ready for professional deployments.

Key Selling Points

  1. LSZH safety jacket Low Smoke Zero Halogen LSZH for public spaces and safer installs
  2. FFTP CAT6 shielding overall foil design minimizes EMI and RFI ensuring signal integrity
  3. 23AWG solid copper 23AWG conductors deliver stable 10Gbps throughput
  4. HDPE insulation HDPE reduces crosstalk for consistent CAT6 performance
  5. 1000Ft spool 1000Ft long length reduces joins and speeds large deployments
  6. Blue jacket blue LSZH color simplifies cable identification and maintenance
  7. Backward compatibility compatible with Cat5e Cat6 while offering FFTP CAT6 benefits

Technical Parameters:

Product Description:

FFTP CAT6 LSZH 10Gbps High Performance Network Cable Built For Reliable Long Run Installations
Rev.: A ECN Description:
Construction Item Description Electrical Property


Conductor


Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23AWG Resistance unbalance within a pair ≤ 2%






Insulation

 Material


PE Skin-Foam-Skin

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


>1500 MΩ / 100m
OD 1.35 ±0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.38 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m



Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 5 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min


No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown



insulation

 elongation before aging ≥ 300%



Pair Twist



Lay & Direction

 1p: S=19.0 mm (27%) tensile strength before aging ≥12 MPa
2p: S=23.5 mm (35%) elongation after aging ≥ 150 %
3p: S=21.5 mm (31%) tensile strength after aging ≥10.5 MPa
4p: S=27.0 mm (40%)



jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa


Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D

Drain Wire Tinned Copper











Pair Shield

 Shield Pair Shield
Construction /
Material Polyester/Aluminium (PET/ALU)
Coverage ≥ 115%





Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81± 3
OD 7.5 ± 0.2
Average THK 0.60 ~ 0.70


Color

Blue
Marking Color black
Marking

according to the customer's

requirements




Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min


NF EN 50289-1-3 / IEC 61196-1-105


No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


NF EN 50289-1-4 / IEC 60885-1

 >1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 5 Ω
Spark Test UL444 2000 ± 250VOC


Applications:

  1. Industrial factories with high EMI use FFTP CAT6 LSZH ITI CTF6A 013 for reliable 10Gbps connectivity.
  2. Data center horizontal runs choose CAT6 FFTP LSZH 1000Ft ITI CTF6A 013 for long length and safety.
  3. Enterprise office cabling prefer LSZH CAT6 FFTP ITI CTF6A 013 to reduce smoke risk in shared spaces.
  4. Security CCTV and network surveillance use FFTP CAT6 LSZH for EMI immunity and stable video links.
  5. ISP campus and building backbone installs deploy ITI CTF6A 013 CAT6 FFTP LSZH for professional grade networks.
