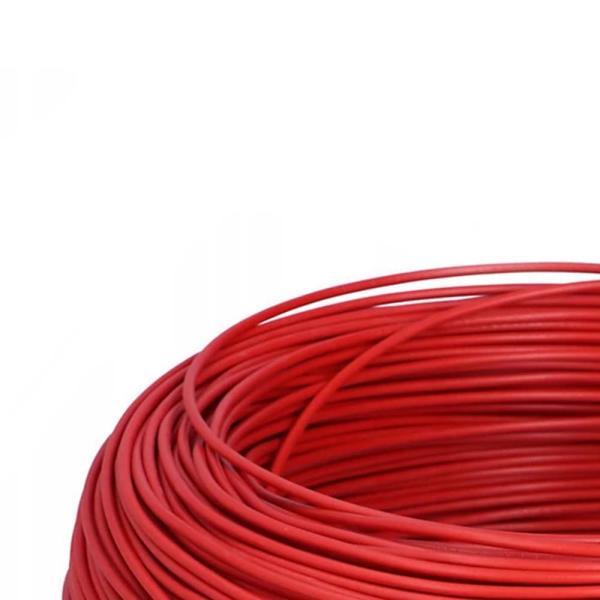

Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded
Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded
Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded
Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded
Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded
Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-CT5SF-026
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45Days
Packaging Details :
Color Box+Packing Box 28*28*12cm
Price :
$50-$100
Conductor Material :
Copper
Cable Shielding :
SFTP
Cable Type :
CAT5E
Cable Length :
500Ft
Jacket Color :
Red
Jacket Material :
LSZH
Conductor Gauge :
24 AWG
Frequency :
100MHz
Description

Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded

Product Description:

1.Designed for global networking needs, the ITI-CT5SF-026 SFTP CAT5E cable from INTEGRITY meets international standards for performance and safety. Its 24AWG pure copper conductor and 100MHz bandwidth support smooth data flow for communication networks and backbone systems.


2.The SFTP shielding protects against electromagnetic interference, ensuring stable connections for security cameras and industrial control devices.The red LSZH jacket offers dual benefits: easy cable management in dense setups and fire safety for enclosed spaces like data centers.


3.At 305m long, this CAT5E cable is ideal for large-scale installations, from residential complexes to cybercafés. It’s built to withstand harsh conditions—resistant to moisture and temperature changes—making it suitable for outdoor or industrial use.


4.Compatible with all standard network devices, this LSZH-equipped SFTP CAT5E cable is a cost-effective choice for anyone seeking reliability. Whether upgrading or building a new network, ITI-CT5SF-026 delivers consistent performance.


Technical Parameters:

Product Description:

Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded
Rev.: A ECN Description:
Construction Item Description Electrical Property


Conductor


Material

Bare Solid Copper(elongation:

19 ~ 24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 24 AWG Resistance unbalance within a pair ≤ 2%






Insulation


Material


HDPE 8303

 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


>1500 MΩ / 100m
OD 1.05 ± 0.02 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.24 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m




Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ± 15 Ω
2p: white + 2 orange stripes & orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min


No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown



insulation

 elongation before aging ≥ 300%



Pair Twist



Lay & Direction

 1p: S=20.0 mm (28%) tensile strength before aging ≥12 MPa
2p: S=17.5 mm (24%)) elongation after aging ≥ 150 %
3p: S=22.0 mm (32%) tensile strength after aging ≥10.5 MPa
4p: S=15.5 mm (21%)



jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa


Inner Assemble

 Lay S=90 ± 5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler / Packing
OD / Drum NA
Filler Ripcord 300D Master Carton NA
Drain Wire Tinned Copper




Outside Shield

 Shield Shield
Construction /
Material Polyester film/Aluminium Foil (PET/ALU)
Coverage ≥ 115%





Jacket

 Material LSZH, 60P, -20~75℃
Hardness 81 ± 3
OD 6.5 ± 0.2
Average THK 0.50 ~ 0.60


Color

 Red
Marking Color

black
Marking

according to the customer's

requirements



Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 2%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min



NF EN 50289-1-3 / IEC 61196-1-105



No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


NF EN 50289-1-4 / IEC 60885-1


>1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC



Applications:

1. Factory Networks: ITI-CT5SF-026 SFTP CAT5E cable ensures interference-free data for production line sensors and controllers.


2. Data Centers: Red LSZH jacket simplifies cable management, while SFTP shielding maintains server connection stability.


3. Security Installations: Compatible with alarm systems and CCTV, the CAT5E cable’s SFTP design resists external interference.


4. Power Distribution: Fire-safe LSZH material makes it suitable for power substations, paired with SFTP for signal protection.


5. Home & Cybercafés: 305m length covers large spaces, with 24AWG copper supporting fast gaming and streaming in cybercafés.


Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded
