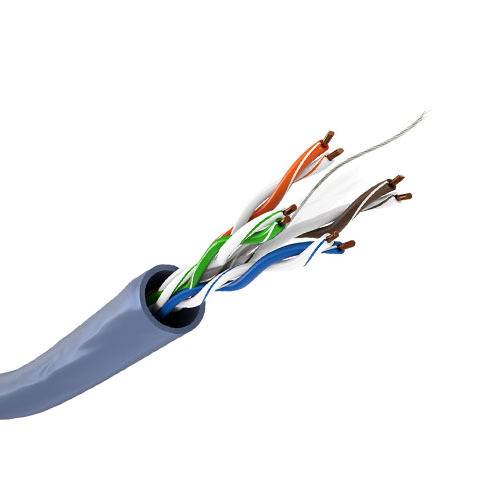

UTP CAT6A 10Gbps 305M 23AWG Blue PVC Cable CMP LP 0.5A Bulk Wholesale
UTP CAT6A 10Gbps 305M 23AWG Blue PVC Cable CMP LP 0.5A Bulk Wholesale
UTP CAT6A 10Gbps 305M 23AWG Blue PVC Cable CMP LP 0.5A Bulk Wholesale
UTP CAT6A 10Gbps 305M 23AWG Blue PVC Cable CMP LP 0.5A Bulk Wholesale
UTP CAT6A 10Gbps 305M 23AWG Blue PVC Cable CMP LP 0.5A Bulk Wholesale
UTP CAT6A 10Gbps 305M 23AWG Blue PVC Cable CMP LP 0.5A Bulk Wholesale
Specifications
Brand Name :
ITI-LINK
Model Number :
ITI-C6AU-016
Certification :
UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin :
SHENZHEN
MOQ :
1000pcs
Price :
$50-$100
Payment Terms :
T/T
Supply Ability :
2000pcs/day
Delivery Time :
15-45 Days
Packaging Details :
Wooden shaft packaging 32*22*12cm Outer box size： 37*37*24cm
Cable Type :
UTP
Conductor Size :
23 AWG
Jacket Material :
PVC
Category :
CAT6A
Length :
1000ft
Frequency :
500MHz
Conductor Material :
Copper
Jacket Color :
Blue
Description

UTP CAT6A 10Gbps 305M 23AWG Blue PVC Cable CMP LP 0.5A Bulk Wholesale

Product Description:

  1. ITI LINK ITI C6AU 016 is a premium CAT6A UTP cable engineered for high performance networks. This UTP CAT6A cable delivers true CAT6A UTP 10Gbps capability with 500MHz bandwidth and a 23AWG copper conductor for consistent low loss transmission.
  2. The 305 meter spool gives installers long continuous runs ideal for enterprise wiring and structured cabling. The jacket is durable PVC offering abrasion and moisture resistance while the product can be ordered with LSZH jacket option where low smoke zero halogen is required.
  3. ITI C6AU 016 meets CMP LP 0.5A for fire safety and electrical compliance enabling confident deployment in office data centers and commercial projects. With blue jacket color for quick identification ITI LINK provides reliable build quality and strict QC for bulk sales OEM and wholesale customers.
  4. Use this CAT6A UTP cable for high bandwidth video streaming storage replication virtualization VoIP and backbone links where UTP CAT6A performance matters. Key features include 23AWG copper conductor CAT6A UTP 500MHz 305M spool PVC jacket CMP LP 0.5A and available LSZH variant for environments that require LSZH.
  5. ITI LINK ITI C6AU 016 CAT6A UTP is an efficient cost effective choice for installers buyers and procurement teams seeking UTP CAT6A cable in volume.

Technical Parameters:

Product Description:

UTP CAT6A 10Gbps 305M 23AWG Blue PVC Cable CMP LP 0.5A Bulk Wholesale
Rev.: A ECN Description:
Construction Item Description Electrical Property


Conductor


Material

Bare Solid Copper(elongation:

19-24%)

 Conductor Resistance at 20°C ≤ 9.5 Ω / 100m
OD 23 AWG Resistance unbalance within a pair ≤ 5%






Insulation


Material

 FEP DAIKIN NP-101 E79842 Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V


>1500 MΩ / 100m
OD 1.01 ± 0.01 mm Mutual capacitance 5600 pF / 100m MAX
Average THK 0.22 mm Capacitance unbalance pair to ground at 800Hz or 1 kHz ≤ 160 pF / 100m



Color

 1p: white + 2 blue stripes & blue Characteristic impedance at 100MHz 100 ±15 Ω

2p: white + 2 orange stripes &

orange

Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or

0.7 KV AC for 1 min


No breakdown
3p: white + 2 green stripes & green Mechanical Property
4p: white + 2 brown stripes & brown



insulation

 elongation before aging ≥ 250%



Pair Twist



Lay & Direction

 1p: S=18.5 mm (26%) tensile strength before aging ≥20 MPa
2p: S=15.5 mm (21%) elongation after aging ≥ 200 %
3p: S=20.5 mm (30%) tensile strength after aging ≥16 MPa
4p: S=14.0 mm (19%)



jacket

 elongation before aging ≥ 150 %
OD / tensile strength before aging ≥ 13.5 MPa


Inner Assemble

 Lay S=90±5 mm elongation after aging ≥ 125 %
Direction according to the drawing tensile strength after aging ≥ 12.5 MPa
Filler cross member 5.0X5.0X0.5mmT Packing
OD / Inner Box NA
Filler Material Ripcord Master Carton NA
Construction 300D






Outside Shield

 Shield /
Construction /
Material /
Coverage /






Jacket


Material

 PVC, MSC 1080 NAT E107947
Hardness 81 ±3
OD 6.0 ± 0.2
Average THK 0.55~0.60


Color

 Yellow


Marking Color

Black
Marking

according to the customer's

requirements



Electrical Properties
Conductor Resistance at 20°C NF EN 50289-1-2 / IEC 60189-1 ≤ 9.5 Ω / 100m
Resistance unbalance within a pair NF EN 50289-1-2/ IEC 60708 ≤ 5%

Dielectric Strength

Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min


NF EN 50289-1-3 / IEC 61196-1-105


No breakdown

Insulation Resistance at 20°C after 2min of electrification under a DC voltage

between 100 & 500V

 NF EN 50289-1-4 / IEC 60885-1 >1500 MΩ / 100m
Mutual capacitance NF EN 50289-1-5 /IEC 60189-1 5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz NF EN 50289-1-5 / IEC 60189-1 ≤ 160 pF / 100m
Characteristic impedance at 100MHz NF EN 50289-1-11/ IEC 61156-1 100 ± 15 Ω
Spark Test UL444 2000 ± 250VOC



Applications:

  1. Enterprise office backbone and campus networks where CAT6A UTP backbone runs require 10Gbps stability UTP CAT6A 500MHz performance and CMP LP 0.5A compliance.
  2. Data centers server racks and equipment rooms requiring UTP CAT6A low loss cabling for high bandwidth storage replication virtualization and 10Gbps links using CAT6A UTP cable.
  3. Industrial and manufacturing network deployments where durable PVC jacketed CAT6A UTP cable handles harsh environments with option to upgrade to LSZH jacket for low smoke requirements.
  4. ISP and telecom wiring closets LAN distribution and wholesale bulk projects that need consistent UTP CAT6A quality long 305M reels and cost effective bulk sales OEM supply.
  5. Home and commercial entertainment venues internet cafes and security camera networks needing CAT6A UTP high bandwidth UTP CAT6A cabling for HD streaming gaming and VoIP with optional LSZH where required.
