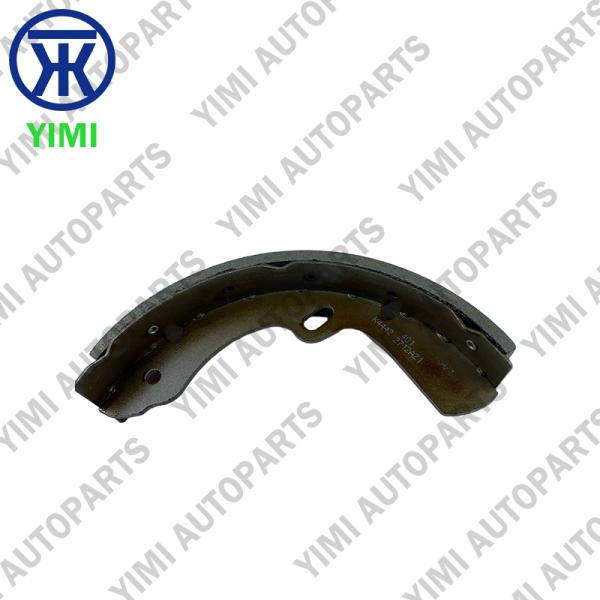

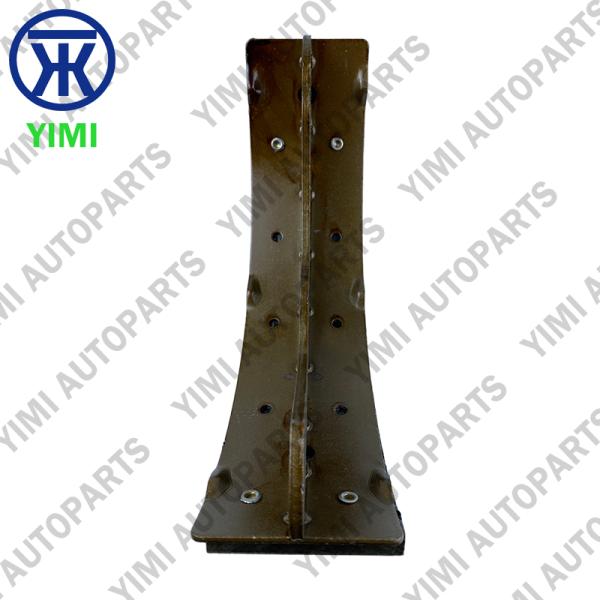

The Rear Brake Shoe Assembly (OEM Numbers: 8-94154773-0 / 8941547730) is a premium-quality, direct replacement braking component designed for Isuzu NPR59 medium-duty trucks equipped with the 4BD1 diesel engine (3.9L).

• OE Quality: Manufactured to Isuzu dimensional and friction specifications for perfect fit and reliable stopping power
• Asbestos-Free: Safe and compliant with international regulations
• Durable Steel Backing: Heat-treated for strength and corrosion resistance
• Consistent Friction: Provides stable braking performance across temperature ranges
• Low Noise: Optimized lining reduces brake squeal and chatter
• Direct Replacement: Simple bolt-on installation - matches OE mounting and adjuster holes
• Cost-Effective: Affordable alternative to genuine OEM shoes

This rear brake shoe assembly is specifically designed for:

• ISUZU NPR59 medium-duty truck with 4BD1 engine
• May also fit other Isuzu models with same rear brake system (e.g., NPR66, NKR55) - verification recommended

• 4-Cylinder, Inline Diesel
• Displacement: 3.9L (3856cc)

Typical installation steps for rear brake shoes:

1. Safely lift and support the vehicle, remove the rear wheel and brake drum
2. Remove the old brake shoes (use spring pliers to unhook return springs, hold-down springs, and adjuster)
3. Clean the backing plate and inspect the wheel cylinder for leaks
4. Apply brake grease to the contact points on the backing plate
5. Install new brake shoes, reattach springs, hold-down hardware, and adjuster
6. Adjust the shoe-to-drum clearance using the star wheel (drum should have slight drag)
7. Reinstall the brake drum and wheel, torque lug nuts
8. Pump the brake pedal to seat the shoes
9. Test drive and re-adjust if necessary

• Friction Material Test: Coefficient of friction tested on dynamometer
• Shear Strength Test: Bond or rivet strength verified
• Dimensional Inspection: Shoe arc, width, lining thickness, and mounting hole positions verified
• Hardness Test: Lining hardness within specification
• Visual Inspection: 100% checked for defects
• Packaged Safely: Wrapped in plastic, boxed with foam

• Neutral export packing or customized packaging available
• Carton or wooden case for safe transportation
• Fast delivery for stock items
• Shipping by Express Air or Sea
