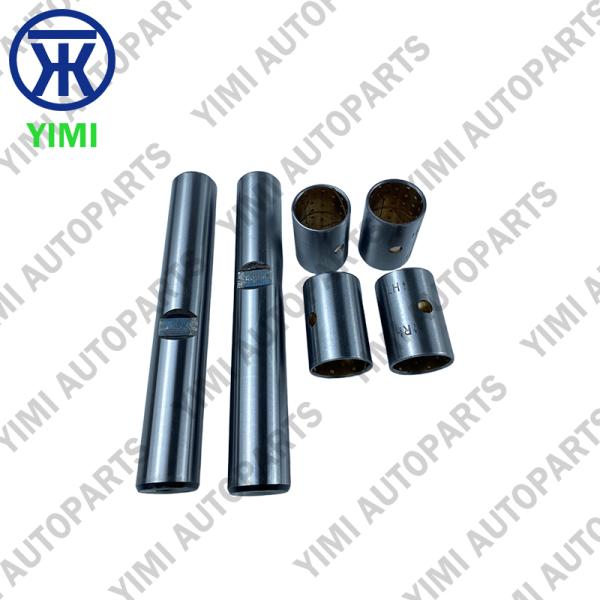

Complete king pin repair kit for Isuzu NKR/NPR light/medium trucks. Includes king pin, bearings, bushings, seals, and hardware. Restores precise steering control, eliminates wheel play, and ensures safe front axle alignment.

• Complete Kit: Contains all required components for a full king pin rebuild
• OE Quality: Manufactured to Isuzu dimensional and metallurgical specifications
• Hardened King Pin: Induction-hardened and precision-ground for exceptional wear resistance
• Premium Bushings: High-lead bronze or steel-backed bushings with spiral grease grooves
• Thrust Bearing Included: Reduces friction for smooth steering feel
• Eliminates Steering Play: Restores proper clearances and alignment
• Reduces Tire Wear: Prevents uneven tire wear caused by loose king pins
• Extended Service Life: Can last hundreds of thousands of miles with proper lubrication

This king pin kit is specifically designed for Isuzu NKR and NPR trucks with conventional solid front axle (I-beam).

• ISUZU NKR (NKR55, NKR57, NKR59, NKR71, etc.)
• ISUZU NPR (NPR59, NPR66, NPR70, NPR71, NPR75, etc.)
• Other Isuzu light/medium trucks with similar front axle

Not engine-specific - fits various engines (4JB1, 4JH1, 4HF1, 4BG1, etc.)

1. Safely lift and support vehicle - remove front wheels and brake components
2. Remove steering knuckle - disconnect tie rod, drag link, and steering arm
3. Press out old king pins - use a hydraulic press
4. Inspect axle beam bores - check for ovality or damage
5. Install new bushings - press into axle beam with oil holes aligned
6. Ream bushings to size (if required) - achieve correct king pin clearance
7. Lubricate king pin - apply high-quality chassis grease
8. Assemble thrust bearing - place as per OE orientation
9. Insert king pin - tap into place using brass drift
10. Check end play - should be ≤ 0.005 inches
11. Reassemble steering knuckle, seals, and caps
12. Grease thoroughly - pump until fresh grease appears
13. Reinstall wheels and brake components
14. Road test and re-torque after 500 km

• Material verification and hardness testing (HRC 55-60)
• Dimensional accuracy verified with precision gauges
• Bushing fitment test for proper clearance (0.001-0.003 inches)
• Surface finish inspection (Ra ≤ 0.4 μm)
• Seal quality check for tears and correct durometer
• Kit completeness - 100% manually counted
• Safe packaging to prevent transit damage
