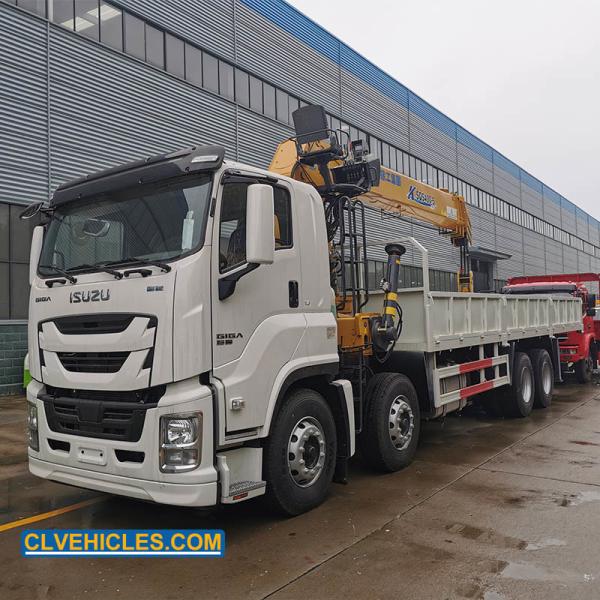

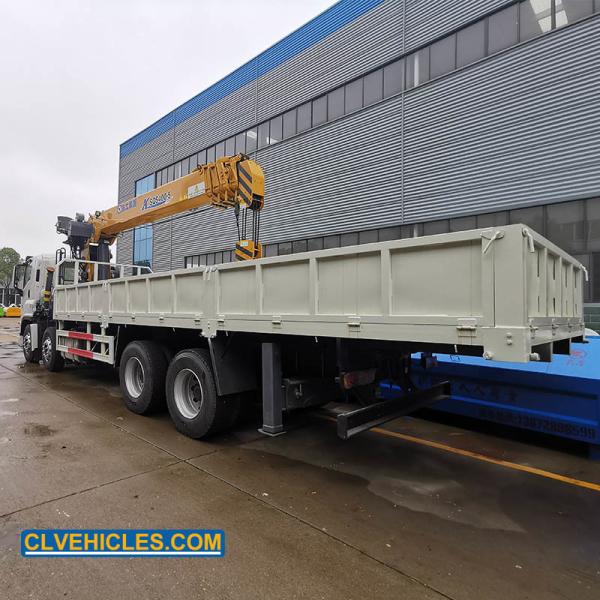

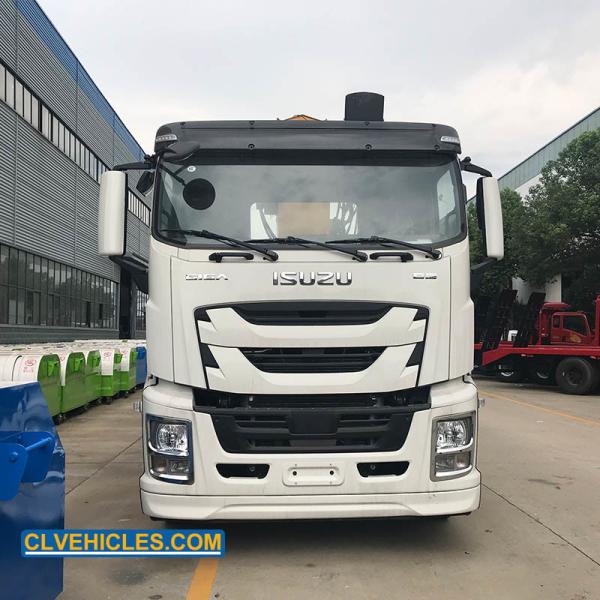

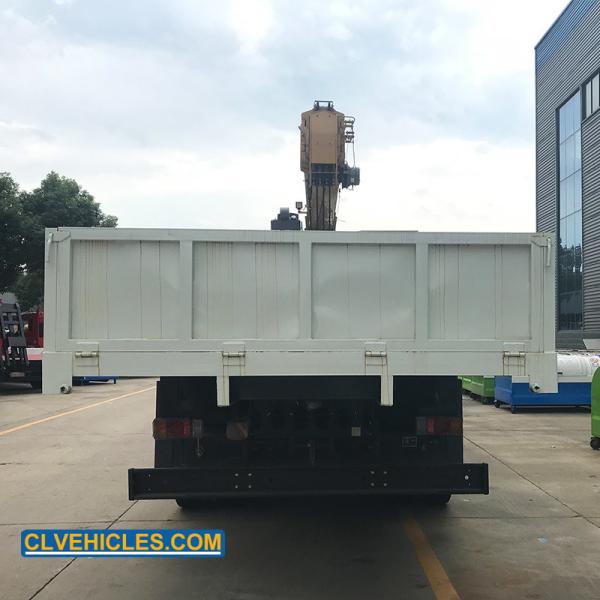

GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
Specifications
Brand Name :
ISUZU
Model Number :
CL5312SCQZ1
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD 89200- USD 98200/ UNIT
Delivery Time :
45-60 work days
Crane Jib :
Five-Arm
Type :
Straight Arm
Tyre :
Tubeless, Steel Wire
Steering :
Left-Hand Drive (LHD)
Engine Emission :
Euro-V
Engine Type :
4 Stroke, Turbocharged, Water-Cooling
Engine Power :
460 HP
Driving :
8X4
Other Name :
Truck Mounted Crane, Boom Truck
Product Name :
Truck Crane
HS Code :
8704223000
Warranty :
12 Months or 25, 000 Kilometers
Condition :
New
Maximum Lifting Height :
<10m
Maximum Lifting Weight :
10-20t
Customization :
Available | Customized Request
Description

ISUZU GIGA 460hp 8x4 Lifting 15m 10ton Straight Boom Crane Truck

Product Description

GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton

GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton

GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton

Vehicle Description
Vehicle model Crane truck Overall dimensions (mm) 12000×2500×3500
GVW (kg) Approx.31000 Fact loading capacity(t) 30-40
Curb weight(kg) Approx.19150 Max. Speed (km/h) 90
Chassis Description
Chassis Brand ISUZU
Cab Forward control cab with A/C
Wheel base (mm) 1350+5100+1300
Front/Rear track base (mm) 1980/1855/1855
Front/Rear overhang (mm) 1335/2400
Number of axles 4
Axle Front axle (kg) 7000*2
Rear axle (kg) 18000*2
Operation control system Power steering
Braking system Air brake with ABS
Transmission 12-speed
Tire specification 12R22.5
Engine Description
Engine manufacture ISUZU Engine
Engine model 6WG1
Emission standard Euro 5
Horse power 460
Up-parts Description
Cargo box
Material Carbon Steel
Dimension (mm) 9020*2400*550
Thickness of bottom / side (mm) 3 / 1.2
Crane
Model SQ10SA4
Max. loading capacity (t) 10
Max. lifting torque (t.m) 20
Max. lifting height(m) 14.5
Max. working radius (m) 12.5
Installation space (m) 12
Section of boom 4
Length of boom (m) 4.2-12.6
Outrigger
Front & Rear Type H
Horizontal Breadth (mm) 2.3-5.4
Hook & wire-rope
Speed of hook lifting (m/min) 8.33
Diameter (mm) 9.3
Length (m) 100
Slewing gear
Speed (r/min) 2
Angel ±360°

The truck-mounted crane truck consists of chassis, cargo van, column, frame, boom (crane), outrigger, turntable, hook assembly and etc.
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
The truck-mounted crane realizes various mechanical actions through the principle of hydraulic transmission. The power of the crane is to take out the capacity of the engine through the power take-off to drive the hydraulic oil pump to work, and the hydraulic oil pipe is connected to the hydraulic valve to achieve related functions. We can also use the oil pump motor unit to provide the power source. The oil pump motor unit drives the motor to work through 380V voltage when there is no vehicle power in the field, docks, ships, workshops, etc. If there is no external power supply, we use the generator generates power to activate the electric motor then drives the oil pump to work.
Application

It is widely used in urban and rural construction, road and bridge pipe network construction, landscaping projects, power equipment installation, and mall and medium-sized water conservancy construction, due to its advantageous maneuverability and rapid transfer, that integrate the functions of lifting and transportation.When working on the job site, outriggers are extended horizontally from the chassis then vertically to level and stabilize the crane while stationary and hoisting.

GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
Reference

GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
GIGA 460hp ISUZU Truck Mounted Crane Straight Boom Truck 15m 10 ton
