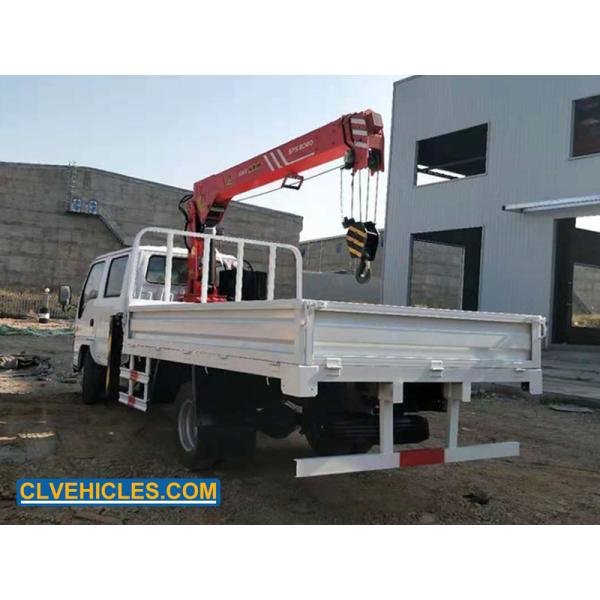

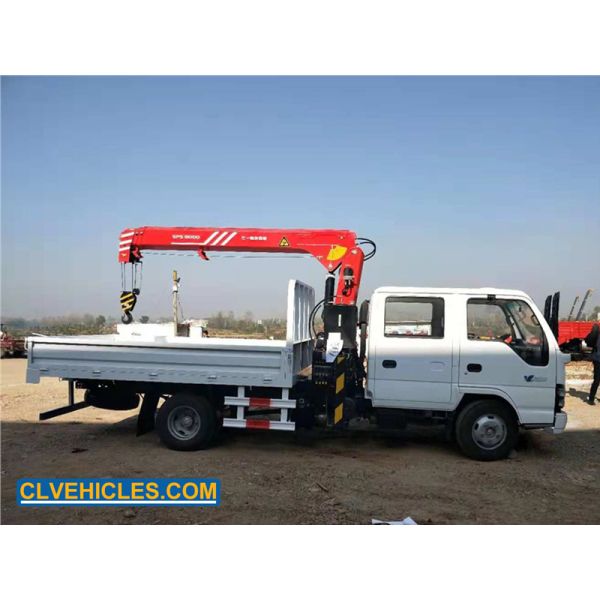

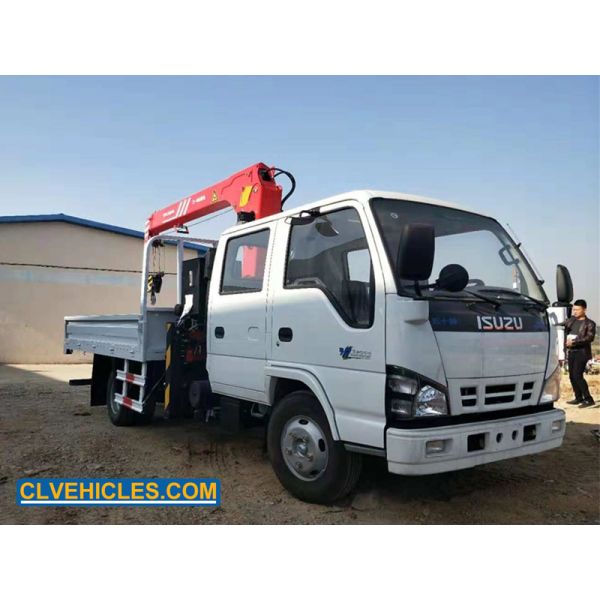

Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Specifications
Brand Name :
ISUZU
Model Number :
CL5071SCQZ1
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD 31200- USD 39200/ UNIT
Delivery Time :
45-60 work days
Shaft Number :
2
Crane Jib :
Two-Arm
Type :
Straight Arm
Tyre :
Tubeless, Steel Wire
Steering :
Left-Hand Drive (LHD)
Engine Emission :
Euro-V
Engine Type :
4 Stroke, Turbocharged, Water-Cooling
Engine Power :
130 HP
Driving :
4X2
Other Name :
Truck Mounted Crane, Boom Truck
Product Name :
Truck Crane
HS Code :
8704223000
Warranty :
12 Months or 25, 000 Kilometers
Condition :
New
Maximum Lifting Height :
<10m
Maximum Lifting Weight :
2-4t
Customization :
Available | Customized Request
Description

ISUZU N-Series Crew Cabin 4X2 Light Duty 3200kg Lifting Straight Crane Truck

Product Description

Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg

Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg

Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg

Vehicle Description
Vehicle model Crane truck Overall dimensions (mm) 5995×2200×2835
GVW (kg) Appro×7000 Loading capacity(t) 3-5
Curb weight (kg) Appro×3750 Max. Speed (km/h) 100
Chassis Description
Chassis Brand ISUZU
Cab Crew cab with A/C, power steering
Allowable person in cab

5
Wheel base (mm) 3360
Number of axles 2
Axle Front axle 2500
Rear axle 4800
Traction system

4*2
Operation control system Power steering
Braking system Oil brake
Transmission 5-speed MSB
Tire specification 7.00R16
Tire quantity

6+1
Engine Description
Engine manufacture ISUZU Engines
Engine model 4KH1CN5HS
Emission standard Euro 5
Horse power

130
Up-parts Description
Cargo box
Material Carbon Steel
Dimension (mm)

3800*1800*400
Thickness of bottom / side (mm) 3.0 / 1.2

Crane
Model

SQ4SA2
Max. loading capacity (kg)

4000
Max. lifting torque (T.m)

10
Max. lifting height (m)

9.5
Max. working radius (m)

7.6
Installation space (mm)

850
Sections of boom

3
Length of boom (mm)

3500-7820
Extended speed (m/s)

0.1
Rangeability

0-75°

Outrigger
Type

H
Horizontal Breadth (mm)

1850-5100
Hook & wire-rope
Speed of hook lifting (m/min)

9
Diameter of wire-rope (mm)

8
Length of wire-rope (m)

45
Slewing gear
Speed (r/min)

2
Angel

360


The truck-mounted crane truck consists of chassis, cargo van, column, frame, boom (crane), outrigger, turntable, hook assembly and etc.
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
The truck-mounted crane realizes various mechanical actions through the principle of hydraulic transmission. The power of the crane is to take out the capacity of the engine through the power take-off to drive the hydraulic oil pump to work, and the hydraulic oil pipe is connected to the hydraulic valve to achieve related functions. We can also use the oil pump motor unit to provide the power source. The oil pump motor unit drives the motor to work through 380V voltage when there is no vehicle power in the field, docks, ships, workshops, etc. If there is no external power supply, we use the generator generates power to activate the electric motor then drives the oil pump to work.
Application

It is widely used in urban and rural construction, road and bridge pipe network construction, landscaping projects, power equipment installation, and mall and medium-sized water conservancy construction, due to its advantageous maneuverability and rapid transfer, that integrate the functions of lifting and transportation.When working on the job site, outriggers are extended horizontally from the chassis then vertically to level and stabilize the crane while stationary and hoisting.

Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Reference

Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
Two Arm ISUZU Truck Mounted Crane Crew Cabin Light Duty 3200kg
