Infrared Multi Touch Screen Overlay Kit 32 Inch Customized Sizes
Infrared Multi Touch Screen Overlay Kit 32 Inch Customized Sizes
Infrared Multi Touch Screen Overlay Kit 32 Inch Customized Sizes
Infrared Multi Touch Screen Overlay Kit 32 Inch Customized Sizes
Specifications
Brand Name :
YCLTOUCH
Model Number :
LV-32
Certification :
RoHS, ISO 9001:2000, ce, EMC, LVD
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000/month
Delivery Time :
3-7 Days
Interface type :
USB
Type :
Infrared
Products status :
Stock
Size :
Customized Sizes
Product name :
IR Touch Frame
Interface :
USB 2.0(full-speed)
Description

32inch Usb Multi Ir Touch Screen Frame Overlay Kit Infrared Ir Touch Frame

Touch specifications

Item Specification
Active Area(Display Device) 15~500 inch
Housing(Only limited profile shipments) Aluminum Alloy
Housing Color(Only limited profile shipments) Black
Response Time <15ms
Frame Rate 125Hz
Touch Accuracy ±1mm(over 90% Area)
Input Method Finger,Finger cover by glove,Opaque objects
Output Form Coordinate Value
Touch Durability Unlimited
Minimum Object Sizes For Touch Single Touch 5mm
Multi Touch 8mm
Interface USB
TTL Serial Port

Reliability

Item Specification
Low temperature operation Temperature:-20ºC, time:48H
Low temperature start Temperature:-20ºC, time:4H
Low temperature storage Temperature:-20ºC, time:48H
High temperature operation test Temperature:60ºC, time:48H
High temperature, high humidity operation Temperature:60ºC, humidity:95%RH, no condensation, time:48H
High temperature, high humidity storage Temperature:60ºC, humidity:95%RH, no condensation, time:48H
Temperature change test Temperature:-20ºC~60ºC, Loop number:10 times, Speed:1ºC/min
Thermal Shock Test High temperature:85ºC, low temperature:-45ºC,50ºC cycles
Packing vibration Test Frequency:5~200H, power spectral density: 0.015G2/Hz, total RMS acceleration:1.57G, vibration mode: random vibration
Package drop test A corner three side six-faces
ESD level According to IEC61000-4-2 level B. Contact discharge 4 KV, air discharge 8 KV

Electrical Specifications

Item Specification
Communication Type USB2.0 Full Speed
Transmission Rate 12Mbps
Power Supply USB
Working Voltage DC 5V±5%
Average Current <300mA

Storage Conditions

Item Specification
Storage Temperature -10ºC~40ºC
Storage Humidity 30%~70%RH
Storage Time 12 Months

Product Application

Infrared Multi Touch Screen Overlay Kit 32 Inch Customized Sizes

Infrared Multi Touch Screen Overlay Kit 32 Inch Customized Sizes

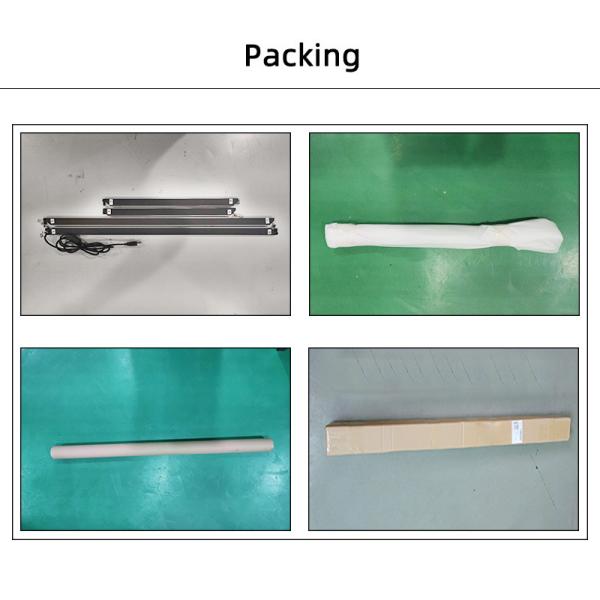

Packing and Delivery

Infrared Multi Touch Screen Overlay Kit 32 Inch Customized Sizes

FAQ

1 what can you buy from us?
Capacitance Touch Screen,Infrared Touch Screen,Interactive Whiteboard,Infrared PCBA Module

2 who are we?
We are based in Guangdong, China, start from 2013,sell to Domestic Market(00.00%),Western Europe(00.00%),Southeast Asia(00.00%),South Asia(00.00%),Mid East(00.00%),North America(00.00%). There are total about 101-200 people in our office.

3 why should you buy from us not from other suppliers?
Acquired nearly 10 domestic practical technology soft,Achieve 32-point touch,High resolution and fast response,Single-handed occlusion does not affect touch, support switching dual systems, thin border, drive-free,For Windows, Mac OS, Android, Linux.

4 how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

5 what services can we provide?
Accepted Delivery Terms: FOB,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
