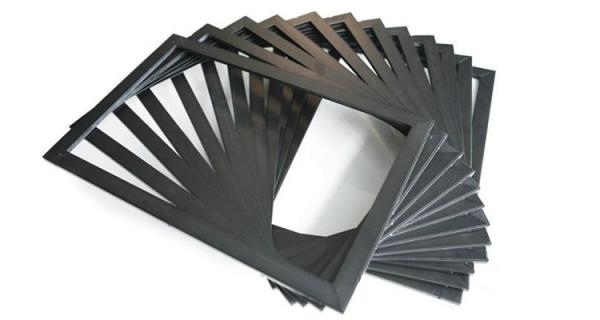

17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM
17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM
17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM
17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM
Specifications
Brand Name :
YCLTouch
Model Number :
YCL-K15
Certification :
RoHS, ISO9001, ce, FCC, EMC, LVD
Place of Origin :
China
MOQ :
1
Price :
USD25-USD35 per pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 pcs per month
Delivery Time :
3-7 days
Packaging Details :
SKD export cartons or plastic pipe, or export carton for the IR touch frame touch screens
Product name :
IR touch screen
Series :
For business
Support Systems :
Windows Xp/7/8/Android/ MacOS/Liunx
Material :
Aluminum Alloy
Touch points :
Ten Points
Interface Type :
Usb
Description

17 Inch IR Touch Screen Overlay Infrared Multi Touch Screen Kit For KIOSK ATM

Basic Specification
Product Name
15 inch infrared touch screen
Model number
YCL-K15
Resolution
32767x32767
Glass
Temper type with 3mm
Response Time
<10ms
Touch Accuracy
+/-2mm(Over 95% area)
Touch Input Objects
Fingers,opague objects
Touch Durability
Unlimited
Bezel Material
Aluminium alloy
Interface
USB2.0 full speed
Electrical Specification
Scan Rate
More than 100Hz/s
Communication
USB2.0
Transmission Rate
480Mbps
Power Supply Mode
USB 5V DC
Supply Voltage
From 4.75 to 5.25V
Operating Voltage
Equal to or less than 200MA
Environment Specification
Working /StockTemperature
-15℃~55℃ ,-40℃~75℃
Working Hudimity
10%~90%RH,no condense
Stock Humidity
10%~90%RH,no condense
Anti Light Ability
<80000Lux
Static Electricity
Equal to grade EN 6100-4-2 2008:3, touching type powerrelease 4KV,air type power release 8KV(Install to display to test)
Software Compatibility
Firmware Upgrade
Available
OS Compatibility
Win7/Win8/Win10,Android/Linux/Mac
API(software interface)
able to provide motive links datasheet,DIY API interface is available
Reliability And Durability Data Sheet
High Temperature Stock
100℃ for 20 hours,normal temperature for 2 hours
Low Temperature Stock
-40℃ for 20 hours,normal temperature for 2 hours
USB Plug In And Out Test
More than 2000 times
High/Low Circle Working
80℃ for 48 hours,-10℃ for 12 hours
High Humidity Working
80℃ for 20 hours with 85%

17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM17 Inch Infrared Multi Touch Screen Kit Ten Points For KIOSK ATM
