Specifications
QR Code Scanning Working Distance :
3~20cm, Supports for Simple QR Code
ESD Level :
Contact Discharge ±4KV, Air Discharge ±8KV
Security :
Palmprint Feature Encryption
Camera :
RGB/IR
OTA Support :
Support for USB Upgrade
Power Supply Current :
>1.5A @5V
Palm Recognition Success Rate :
98%
Image Processing :
High-Performance ISP inside/ Palm AE inside
Operating Voltage :
5V~12V
Host Computing Power Requirements :
≥4*A17 @1.8GHz
Module Power Consumption :
Average 2.5W
Palm Scanning Angle :
Pitch angle ≤ 30°, roll angle ≤ 30°, horizontal rotation ≤ 360°
Overall dimensions :
L53.12mm * W53.12mm * H14.33mm
Compatibility of the System :
Support for Android 7/8/9/10; Support for Windows
Payment Terms :
T/T
Illuminance :
0~50,000Lux (Module Not Exposed to Direct Sunlight)
Model Number :
JP308
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
200+/day
Delivery Time :
5-8 work days
Algorithm Deployment Method :
Support for Local Deployment and Cloud Deployment
Operating Temperature :
-10℃~50℃
Communication Interface :
USB TypeC (USB 2.0 Agreement)
Palm Scanning Working Distance :
5~15cm
Relative Humidity :
0~95%
RE Level :
Complies with GB 9254 CLASS B specifications
Storage Temperature :
-40℃~85℃
Storage Humidity :
10%~95%
Description

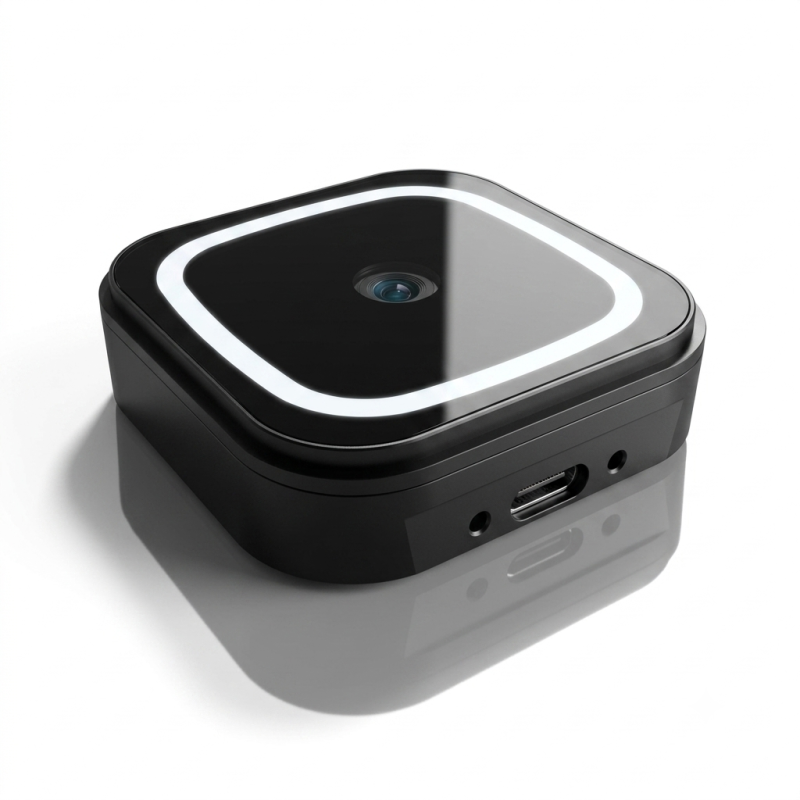

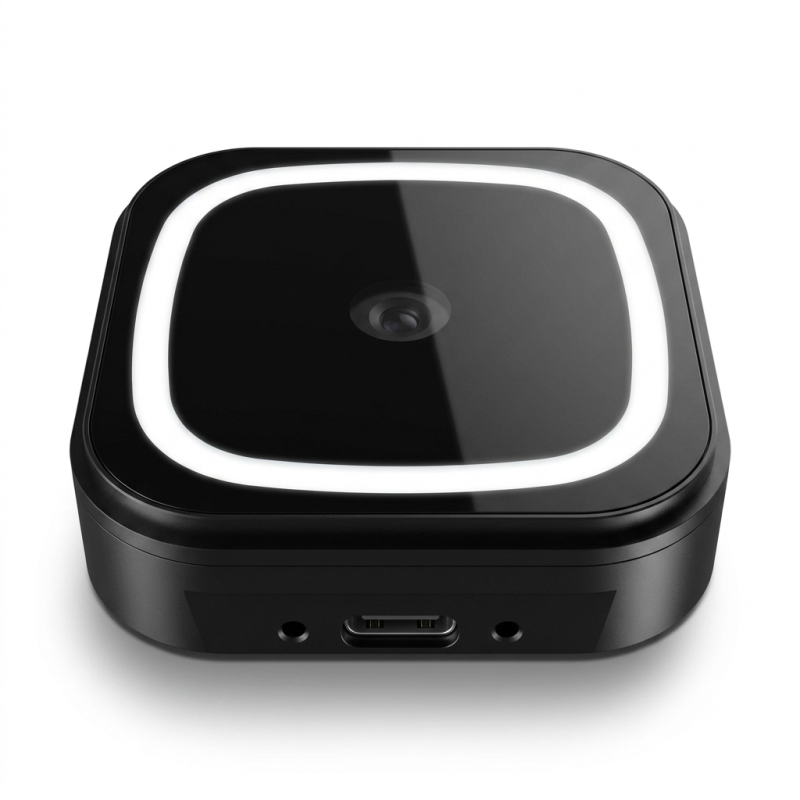

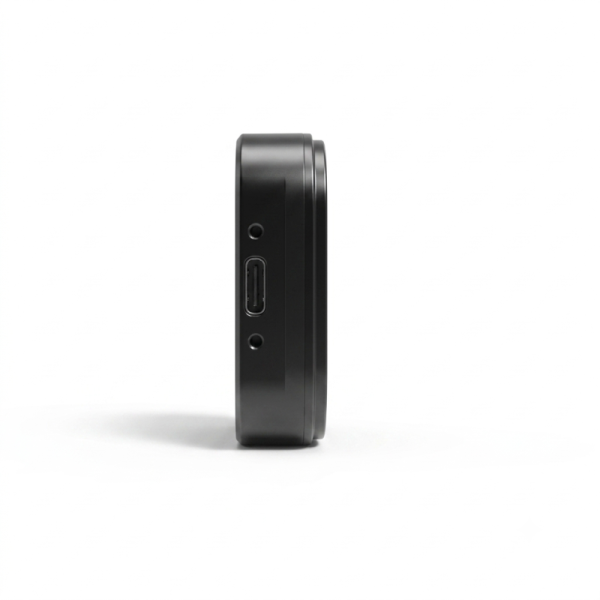

JP308 3D Structured Light Camera Module Palmprint / Palm Vein Dual-Modal incorporating a high-performance ISP and AI module

JP308 3D Structured Light Camera Module Introduction:

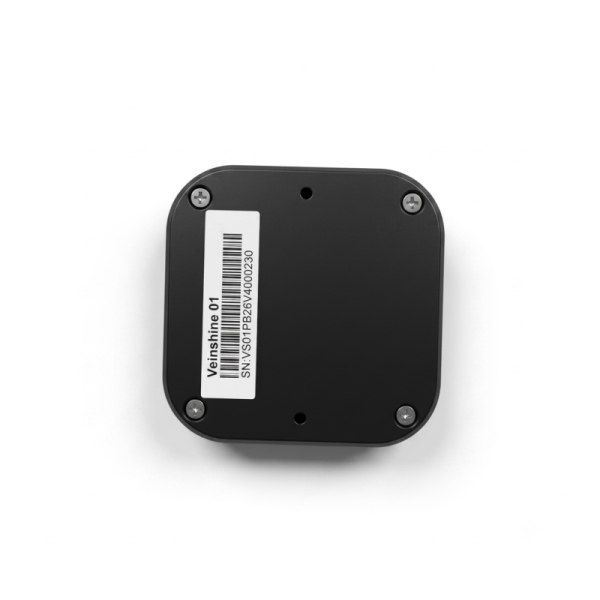

Veinshine 01 RGB&IR dual-modal palm scanner camera utilizes high-precision optical technology, incorporating a high-performance ISP and AI module. It features a unique software-based AE algorithm, enabling efficient palm detection and closed-loop
Palm AE under various lighting conditions, including low-light environments, to provide high-quality palm
print and palm vein images.

JP308 3D Structured Light Camera Module System Requirements:

  • Image algorithm processing is carried out inside the module
  • The upper computer needs to perform palmprint recognition algorithms, including liveness detection and feature extraction. It
    is recommended to have a system with computing power of at least Arm 4 * A17@1.8GHz

JP308 3D Structured Light Camera Module Features:

  1. Palmprint / Palm Vein Dual-Modal
  2. Polarized light system
  3. RGB / IR aligned
  4. Palm AE inside
  5. Customized Lighting Interaction System
  6. Large Field of View (FOV), 5~15cm Palm Scanning Working Distance

JP308 3D Structured Light Camera Module Applicabilities:

  • Palm ID and access control
  • Subway turnstiles
  • Retail payments

JP308 3D Structured Light Camera Module Parameter:

Camera:
 RGB/IR
Communication Interface: USB TypeC (USB 2.0 Agreement)
Operating Voltage: 5V~12V
Module Power Consumption: Average 2.5W
Palm Recognition Success Rate: 98%
Host Computing Power Requirements: ≥4*A17 @1.8GHz
Algorithm Deployment Method: Support for Local Deployment and Cloud Deployment
OTA Support: Support for USB Upgrade
Compatibility of the System: Support for Android 7/8/9/10; Support for
Working Temperature: -10℃~50℃
