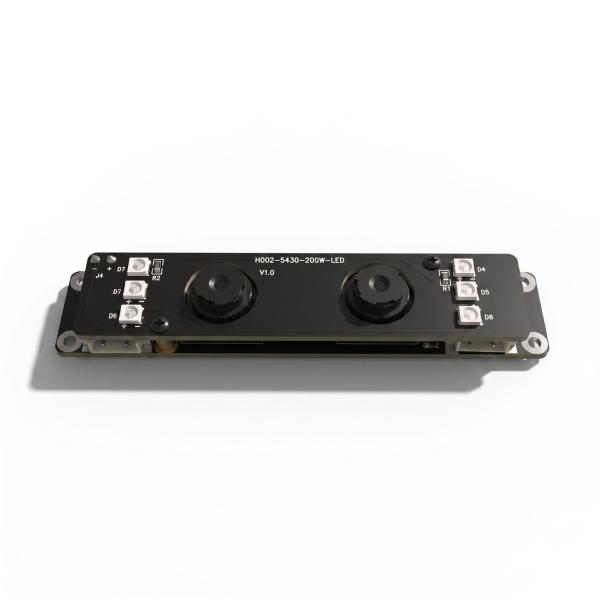

HK2M-H190 High Definition Industrial Laptop Lens Module All-in-One Camera Module Regular work: 0.5W
HK2M-H190 High Definition Industrial Laptop Lens Module All-in-One Camera Module Regular work: 0.5W
HK2M-H190 High Definition Industrial Laptop Lens Module All-in-One Camera Module Regular work: 0.5W
HK2M-H190 High Definition Industrial Laptop Lens Module All-in-One Camera Module Regular work: 0.5W
HK2M-H190 High Definition Industrial Laptop Lens Module All-in-One Camera Module Regular work: 0.5W
HK2M-H190 High Definition Industrial Laptop Lens Module All-in-One Camera Module Regular work: 0.5W
HK2M-H190 High Definition Industrial Laptop Lens Module All-in-One Camera Module Regular work: 0.5W
HK2M-H190 High Definition Industrial Laptop Lens Module All-in-One Camera Module Regular work: 0.5W
Specifications
Brand Name :
Shi Zun
Model Number :
HK2M-H190
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
60mmx 9mmx 9.8mm
Photosensitive chip :
RGB CMOS 1/2.7"
Pixel Size :
3.0μm x3.0μm
SNR max :
TBD dB
Max Dynamic range :
90 dB
Minimum illumination :
0.1Lux at F12
F/No :
2.0
EFL :
4.3mm
FOV :
73°
IR :
650±10nm
Lens Construction :
4P+IR
Maximum resolution and frame rate :
1920* 1080(30ps)
Other optional resolution ratio :
640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps)
Support format :
YUV / MJPG
USB power supply voltage :
5V±5%
Connect the interface :
1* USB-5pin-1.0mm
Interface speed :
480mb/s
Operating systemrequest :
WinXP, Win7, Linux or Vista and android4.1
Power Consumption :
Regular work: 0.5W
storage temperature :
0°C to 50°C
Working temperature :
-10°C to+60°
structure size :
60mmx 9mmx 9.8mm
Description

HK2M-H190 High Definition Industrial Laptop All-in-One Camera Module Regular work: 0.5W

HK2M-H190 Industrial Laptop All-in-One Camera Module Features:

  1. USB 1080P High-Definition Camera
  2. Suitable for Face Feature Detection
  3. Plug and Play
  4. Optional Distortion-Free Lens, Focal Length 2.7MM
  5. Frame Rate Up to 30 FPS, CE Ensures Maximum Image Clarity and Detail
  6. Suitable for Face Recognition, Robotics, Artificial Intelligence, Medical Equipment, Medical Endoscopy, Beauty Salons, Dental/Oral, Hair Follicle/Ear Endoscopy Test Camera, Video Conferencing, Electronic Microscopes/Electronic Eyepiece Cameras, Industrial High-Definition Testing, Industrial Equipment, High-Speed Scanners, USB High-Definition, UVC, Android Cameras, VR, In-Car Cameras, QR Code Scanning, Document Scanning, ATMs, Doorbells/Peep Holes. Dual-Eye Cameras, Wide Dynamic Range, Starlight Night Vision, Laptop/ Tablet/ Advertising Machine Cameras
  7. Monocular Wide Dynamic Range Backlight Resistance

HK2M-H190 Industrial Laptop All-in-One Camera Module Parameter:

Connect the interface: 1* USB-5pin-1.0mm
Interface speed: 480mb/s
Maximum resolution and frame rate: 1920* 1080(30ps)
Other optional resolution ratio: 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps)
Support format: YUV/ MJPG
Max Dynamic range: TBD dB
F/No: 2.0
EFL: 4.3mm
FOV: 73°
Lens Construction: 4P+IR
Power Consumption: Regular work: 0.5W
Operating systemrequest: WinXP, Win7, Linux or Vista and android4.1
