M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface
M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface
M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface
M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface
M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface
M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface
M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface
M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface

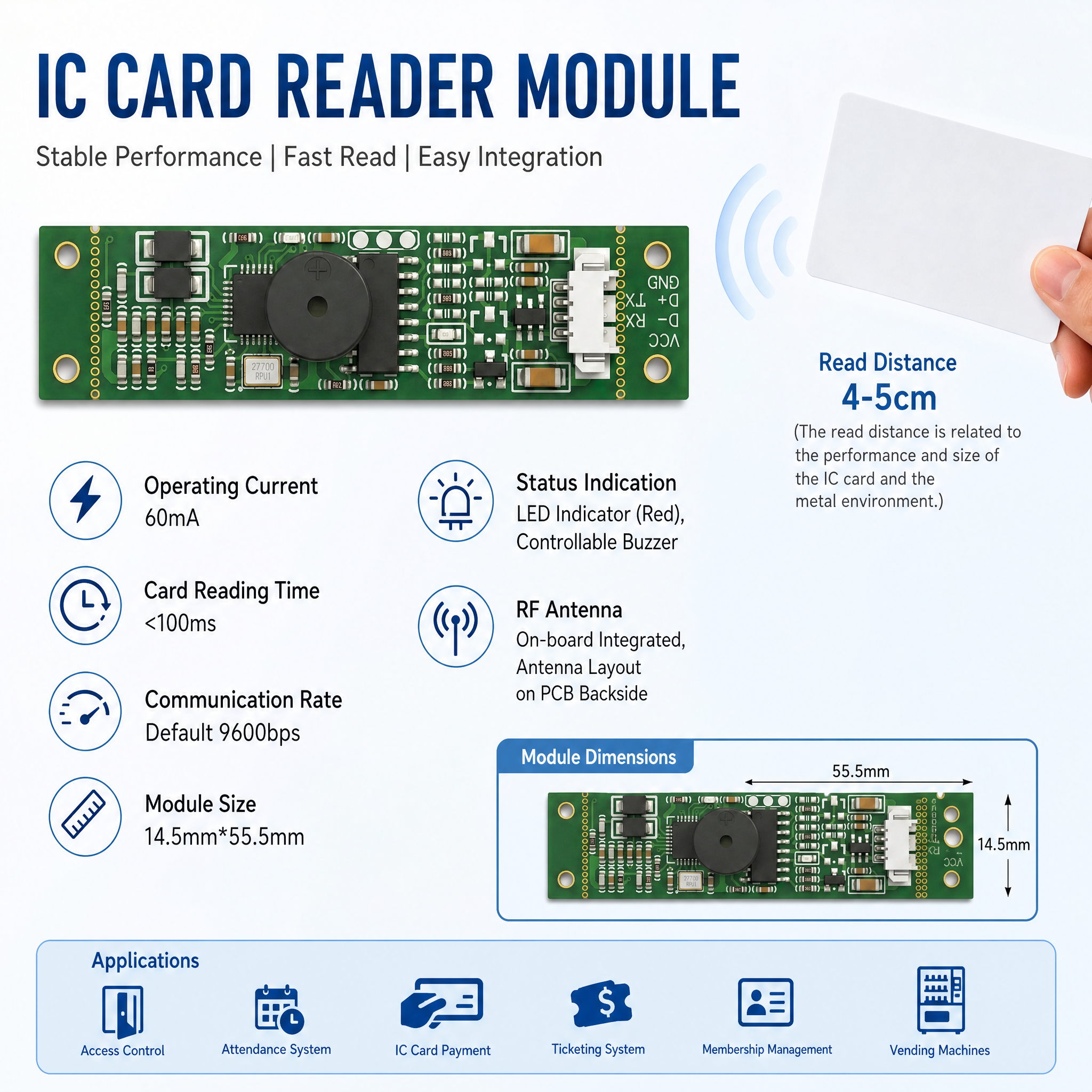

Specifications
Supported Card Types :
ISO14443A protocol cards (S50/S70/MF F08/Ultralight, etc.)
Module Dimensions :
14.5mm×55.5mm
Main Features: :
Reads card details, including card serial number and 48-byte effective data. Data format and length can be customized, and encryption can be set.
Operating Systems :
Windows ALL, VISTA, LINUX, Android
Communication Interface :
USB, UART TTL, Wiegand
Working Current :
60mA
Brand Name :
Shi Zun
Model Number :
M10-WD-UH-00
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Packaging Details :
14.5mm×55.5mm
Reading Time :
<100ms
Working Voltage :
3.3V~12V (For detailed voltage ranges, see model-specific information above.)
Reading Distance :
4-5cm (Varies depending on the performance, size, and surrounding environment of the RFID card.)
Antenna Dimensions :
Integrated onboard; antenna is part of the PCB design.

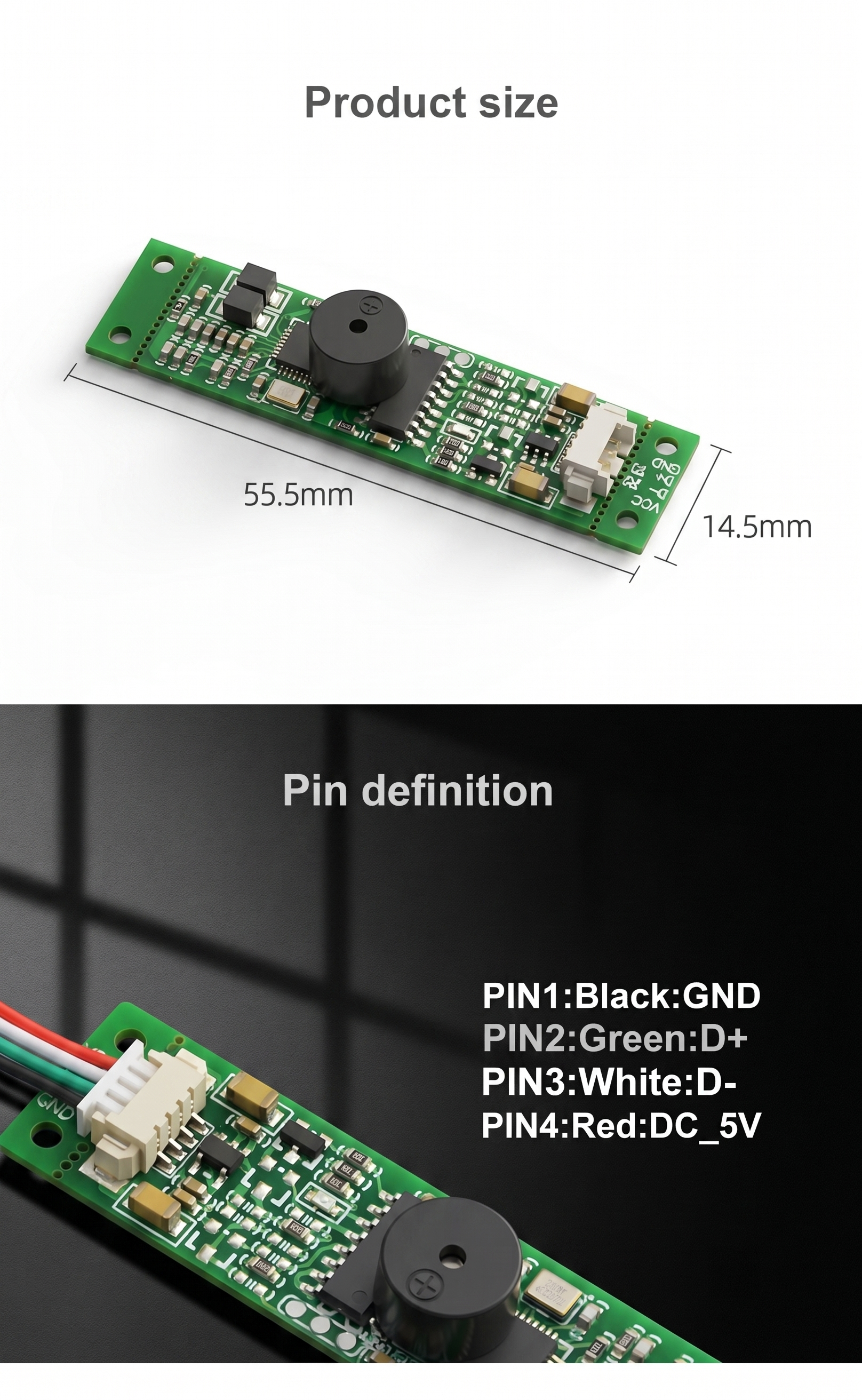

Connector Type :
1.25mm 4-pin fixed sticker plug-in
Status Indicators :
LED indicator (red light), buzzer optional
Working Frequency :
13.56MHz
Communication Speed :
Default 9600bps (customizable upon request)
Product Name :
IC Card Reader Module
Description

M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface

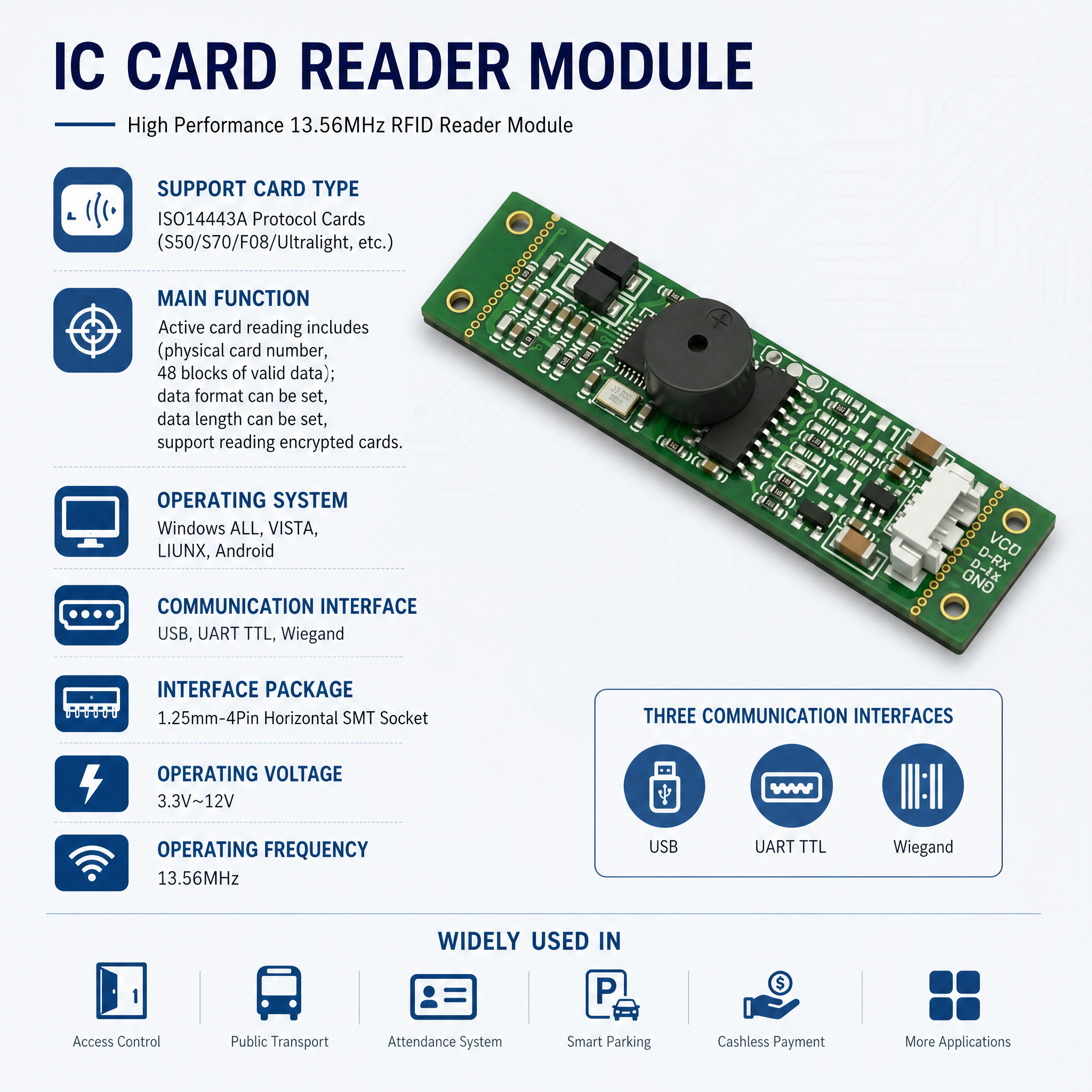

M10-WD-UH-00 Card Reader Module Features:

  1. Supported Card Types: ISO14443A protocol cards (S50/S70/F08/Ultralight).

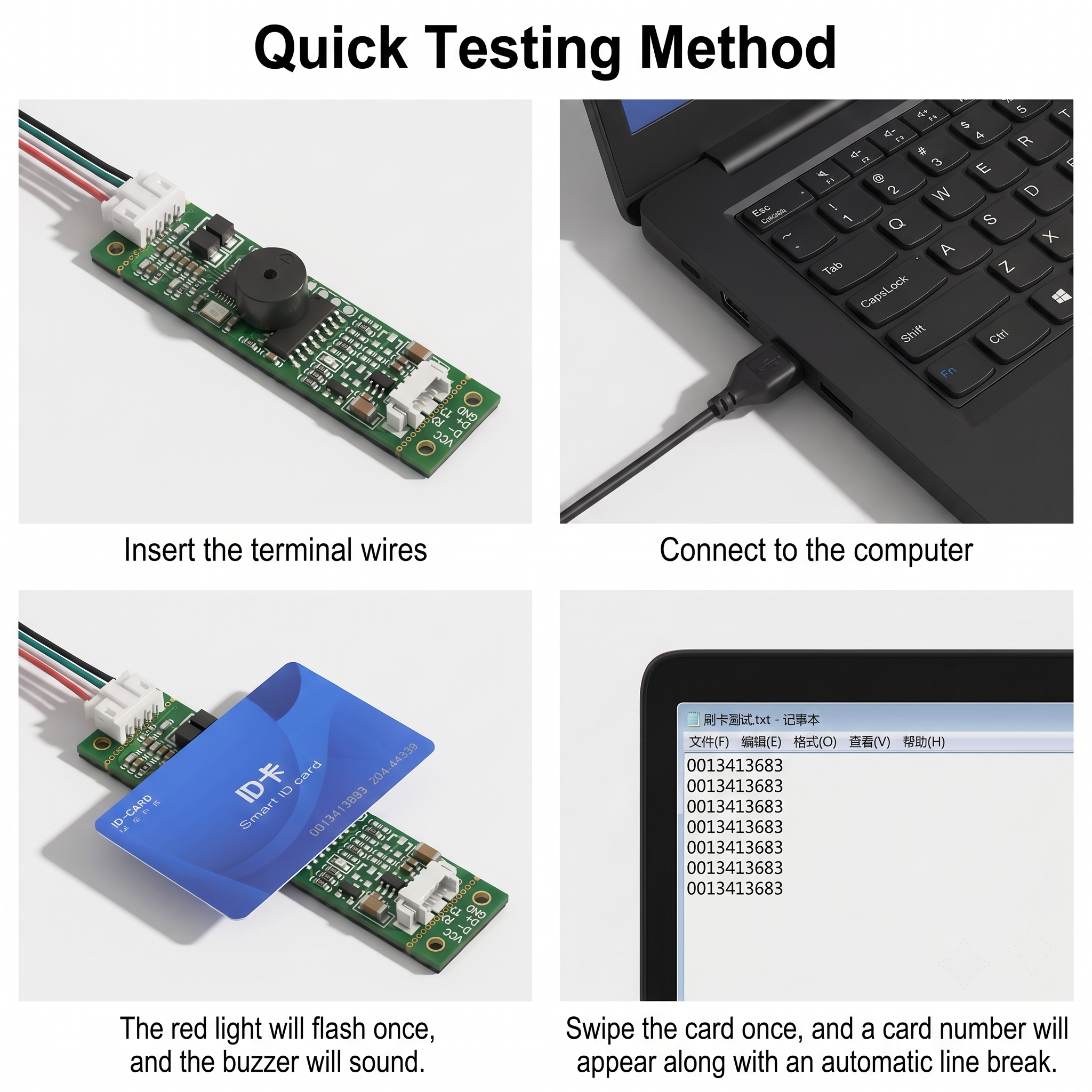

  2. Plug-and-play, no driver installation required.
  3. IC card (13.56MHz high-frequency card) complies with ISO14443A protocol, commonly used for M1/S50 cards and F08 cards. It features 1K-byte storage capacity with 16 sectors and 64 blocks. Sector 0 block 0 serves as a physical block, supporting functions like data storage encryption and sector encryption.
  4. Embedded composite microprocessor technology.
  5. Enhanced microcontroller system improves firmware code stability, effectively preventing data overflow. It optimizes instruction execution time and data interaction rhythm during operations and data processing.
  6. Low power consumption.
  7. Strong anti-interference capability, suitable for various environments.
  8. High-speed transmission (data response time less than 100ms).
  9. Wireless sensing (contactless RF technology).
  10. System compatibility (Windows, Android).

Keyword:

 Card Reader Module

Operating Systems:

 Windows ALL, VISTA, LINUX, Android

Communication Interface:

 USB, UART TTL, Wiegand

Operating Voltage:

 3.3V~12V (For detailed voltage ranges, see model-specific information above.)

Communication Speed:

 Default 9600bps (customizable upon request)

Reading Distance:

 4-5cm (Varies depending on the performance, size, and surrounding environment of the RFID card.)

Module Dimensions:

 14.5mm×55.5mm

Antenna Dimensions:

 Integrated onboard; antenna is part of the PCB design.

M10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB InterfaceM10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB InterfaceM10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB InterfaceM10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB InterfaceM10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB InterfaceM10-WD-UH-00 RFID Card Reader Module IC Card Reader 13.56MHz High-Frequency M1 Card Reader Fudan F08 Card USB Interface
