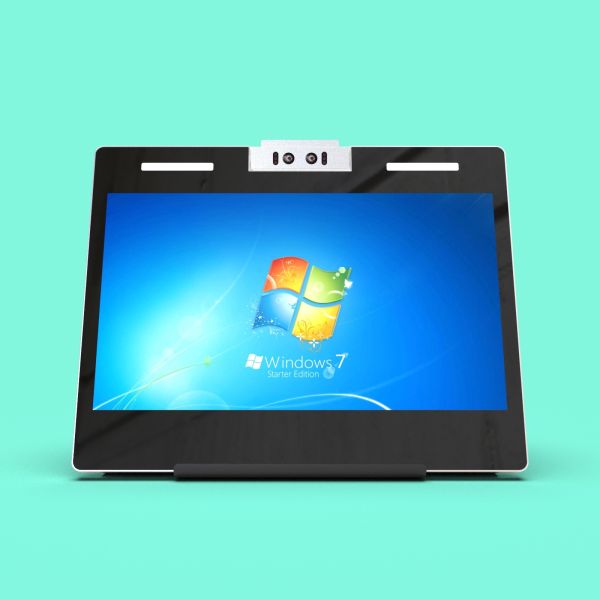

8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Shi Zun
Model Number :
JP187
Packaging Details :
8 inches
Price :
Negotiable
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Operating System :
Optional RK 3568/3288, Quad-core CPU, 2.0/1.8 GHz, Android 11/7.1
Configuration :
2GB RAM + 16GB Storage
LCD Screen Size :
8 inches
Screen Resolution :
800 × 1280
Viewing Angle :
178° full-view angle (R/L)
Screen Brightness :
300 cd/m²
Monocular Camera :
2MP HD single-lens camera with a recognition distance of 0.4-2m (optional)
Touch Screen :
10-point capacitive touch
POE, RS485 :
Optional
WiFi :
Supported
Speaker :
3W
Operating Parameters :
Voltage: 12V Current: 3A Operating Temperature: -10°C to 60°C Humidity: 5% to 90% RH
Interfaces :
Phoenix Terminal Integrated Interface (7 PIN): NO (Relay Normally Open) COM (Relay Common) NC (Relay Normally Closed) B (RS485 Signal Line B) A (RS485 Signal Line A) GND (Ground) 12V (12V Power Positive) Type-C (5V) Type-OTG
Surface Material :
Tempered glass front cover
Body Craftsmanship :
CNC precision-machined aluminum alloy with anodized finish
Installation Method :
Wall-mounted
Color :
Black
Description

JP187 8-Inch Wall-Mounted Full-Metal Touch All-in-One Machine 10-Point Touch Full-Lamination Technology

Introduction:
This product is primarily designed for applications in industrial automation control, educational whiteboards, medical monitoring devices, and commercial information inquiry and display.

Features:

  1. HD Display:
    Equipped with an 8-inch IPS panel with a resolution of 1280 × 800, offering a 178° ultra-wide viewing angle for clear visual experience from all angles.
  2. 10-Point Touch:
    Supports 10-point capacitive touch for sensitive and accurate touch operations, suitable for various interactive needs.
  3. Full-Lamination Technology:
    Uses full-lamination technology to reduce air gaps, enhancing display clarity and durability, while also providing dust-proof functionality.
  4. Tempered Glass Panel:
    Features a tempered glass panel with a hardness of 6H, offering superior protection and durability.
  5. High Reliability:
    Industrial-grade design ensures adaptability to harsh environments for stable long-term operation.
  6. Efficient Heat Dissipation Design:
    The full aluminum alloy casing utilizes a fully passive heat dissipation system, eliminating the need for fans and reducing noise.
  7. Data Management:
    Built-in data storage functionality records transaction details, facilitating financial reconciliation and management.
  8. Operating Temperature Range:
    -25°C to +75°C

Application Scenarios:

  • Industrial Automation Control
  • Educational Whiteboards
  • Medical Monitoring Devices
  • Commercial Information Inquiry and Display

Operating System: IOptional RK 3568/3288, Quad-core CPU, 2.0/1.8 GHz, Android 11/7.1 versions Configuration: 2GB RAM + 16GB Storage
LCD Screen Size: 8 inches Screen Resolution: 800 x 1280
Viewing Angle: 178° full-view angle (R/L) Working parameters

Voltage: 12V

Current: 3A

Operating Temperature: -10°C to 60°C

Humidity: 5% to 90% RH
Monocular Camera: 2MP HD monocular camera, recognition distance: 0.4-2m (optional) Brightness: 300 cd/m²
Speaker: 3W Voltage: 12V
Current: 3A External Interfaces:
  • Phoenix Terminal Integrated Interface (7 PIN):
    • NO (Relay Normally Open)
    • COM (Relay Common Terminal)
    • NC (Relay Normally Closed)
    • B (RS485 Signal Wire B)
    • A (RS485 Signal Wire A)
    • GND (Ground)
    • 12V (12V Power Supply Positive Terminal)
  • Type-C (5V)
  • Type-A (OTG)
Installation Methods: Wall-mounted Color: Black
