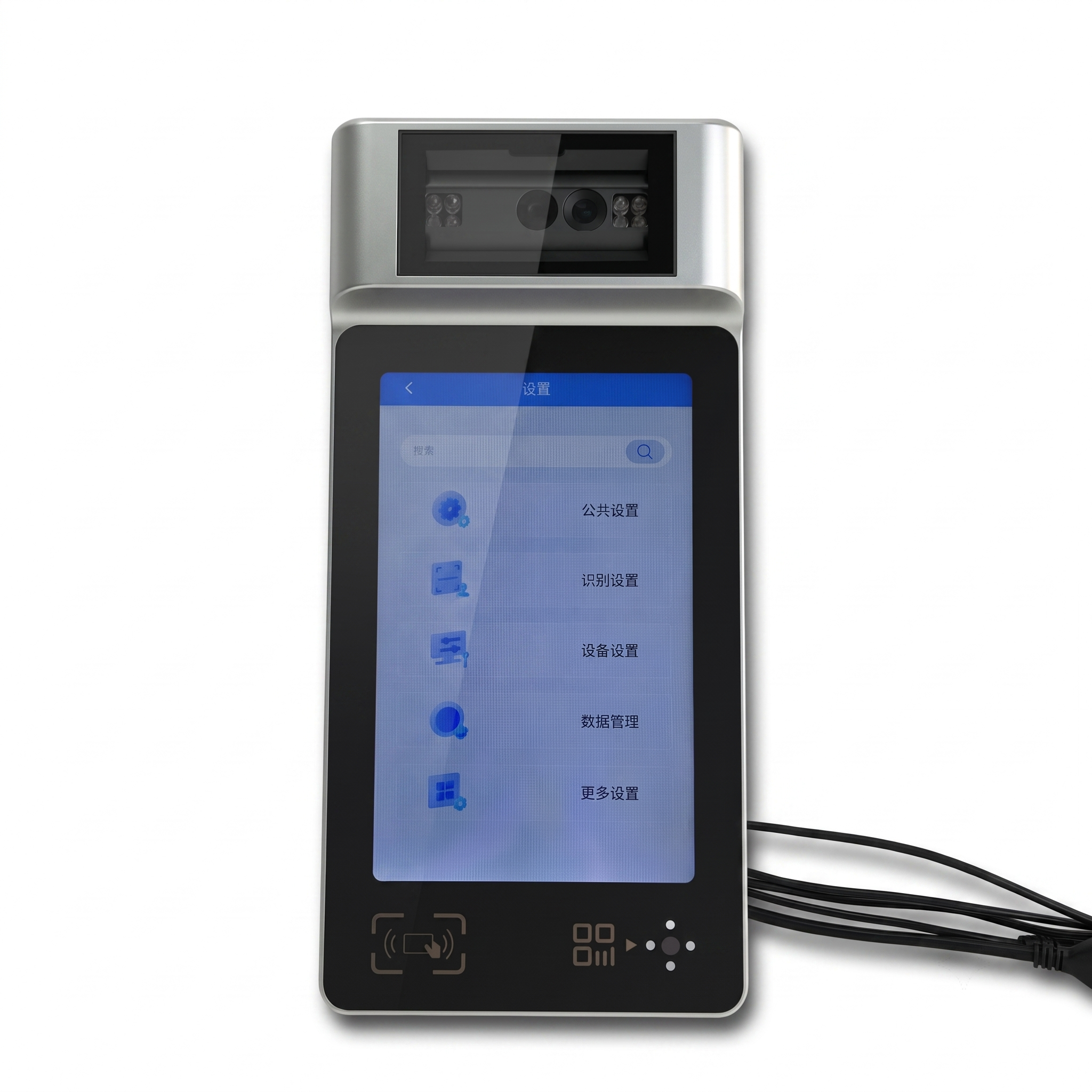

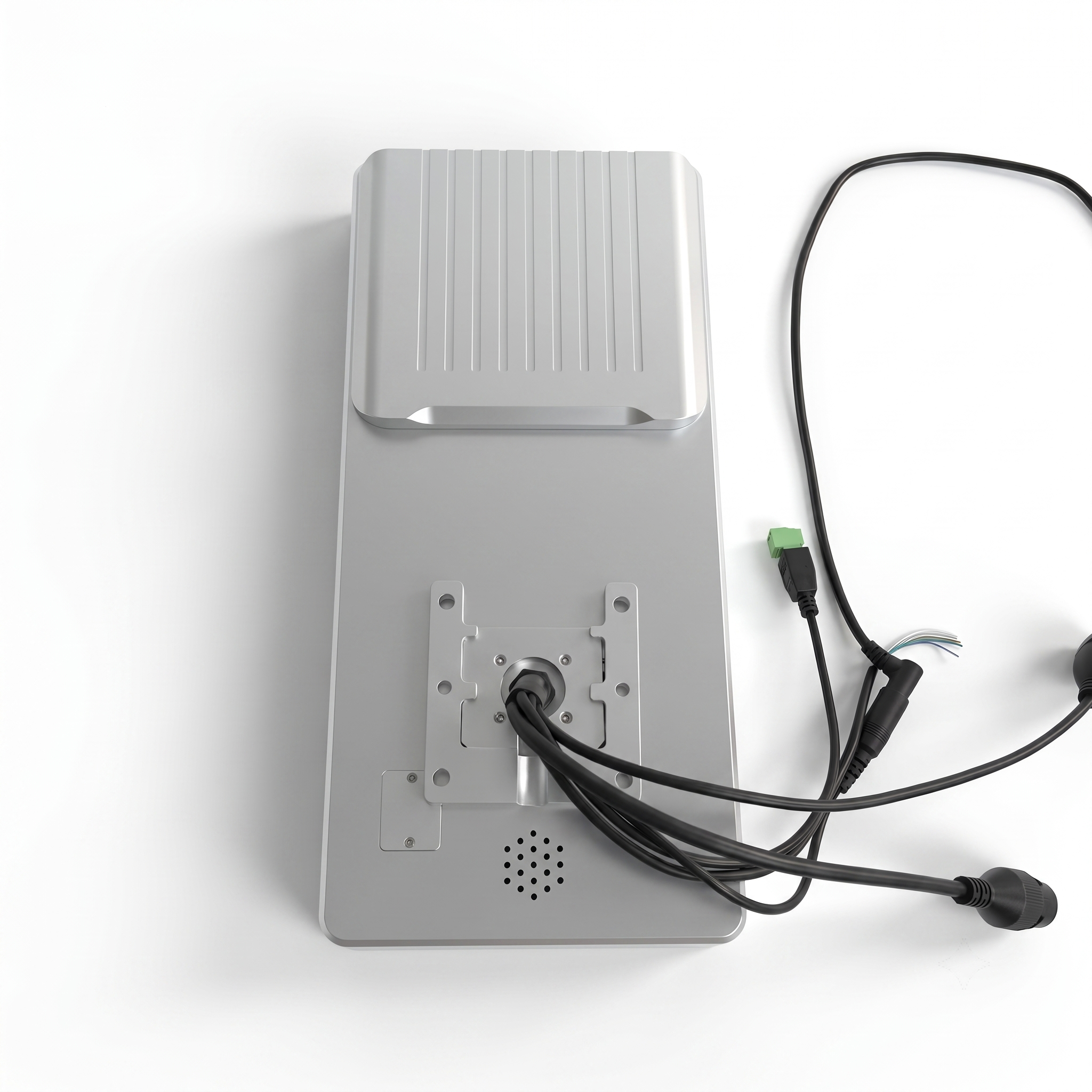

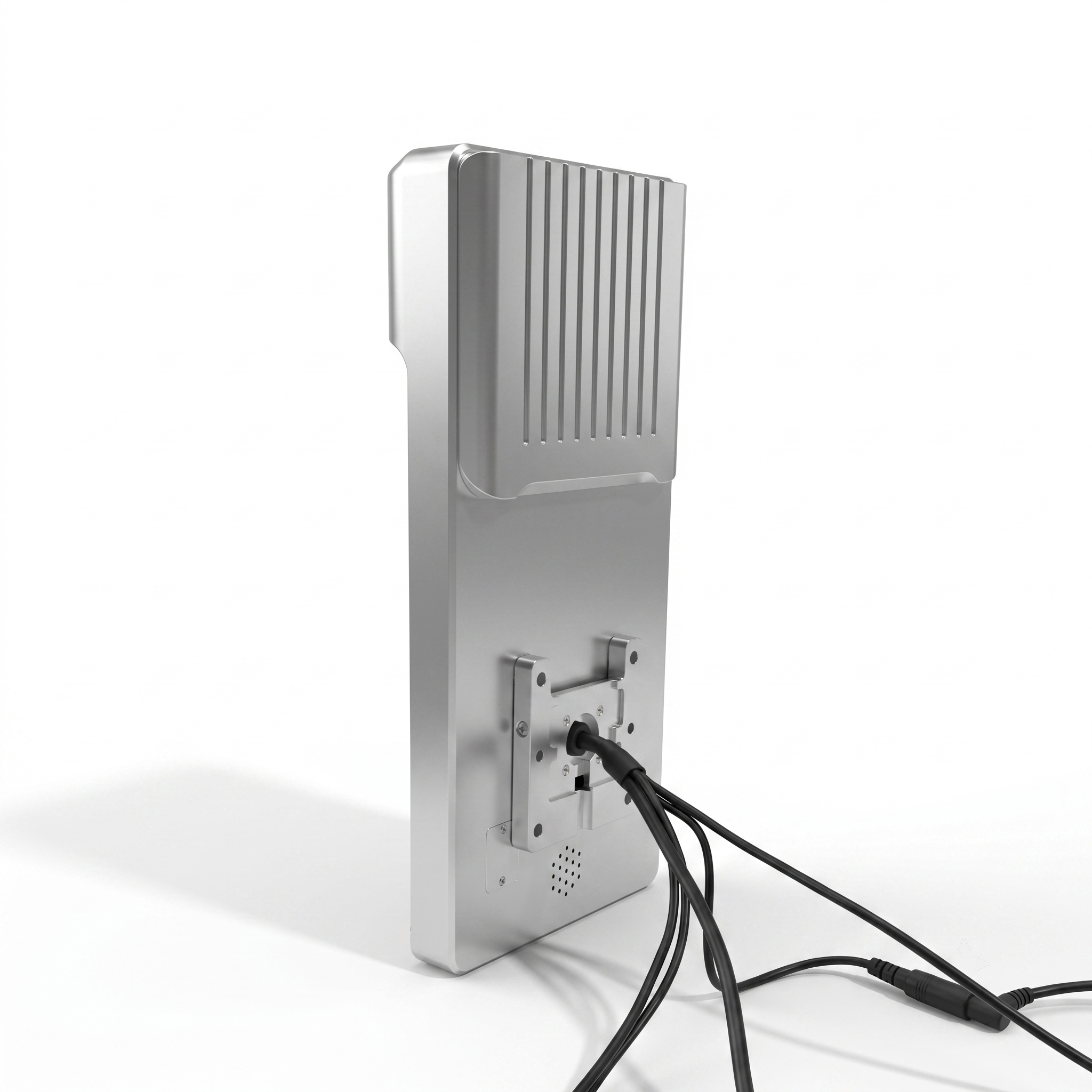

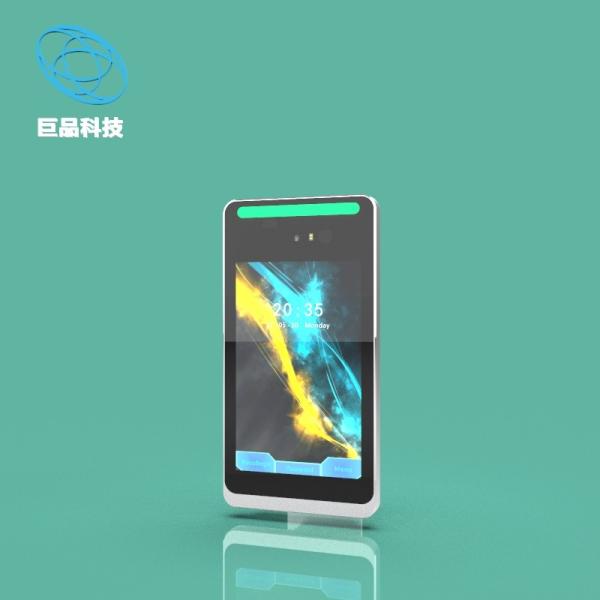

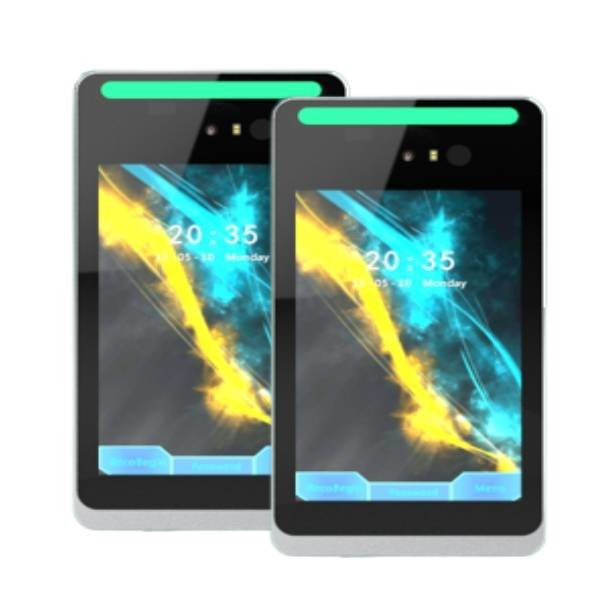

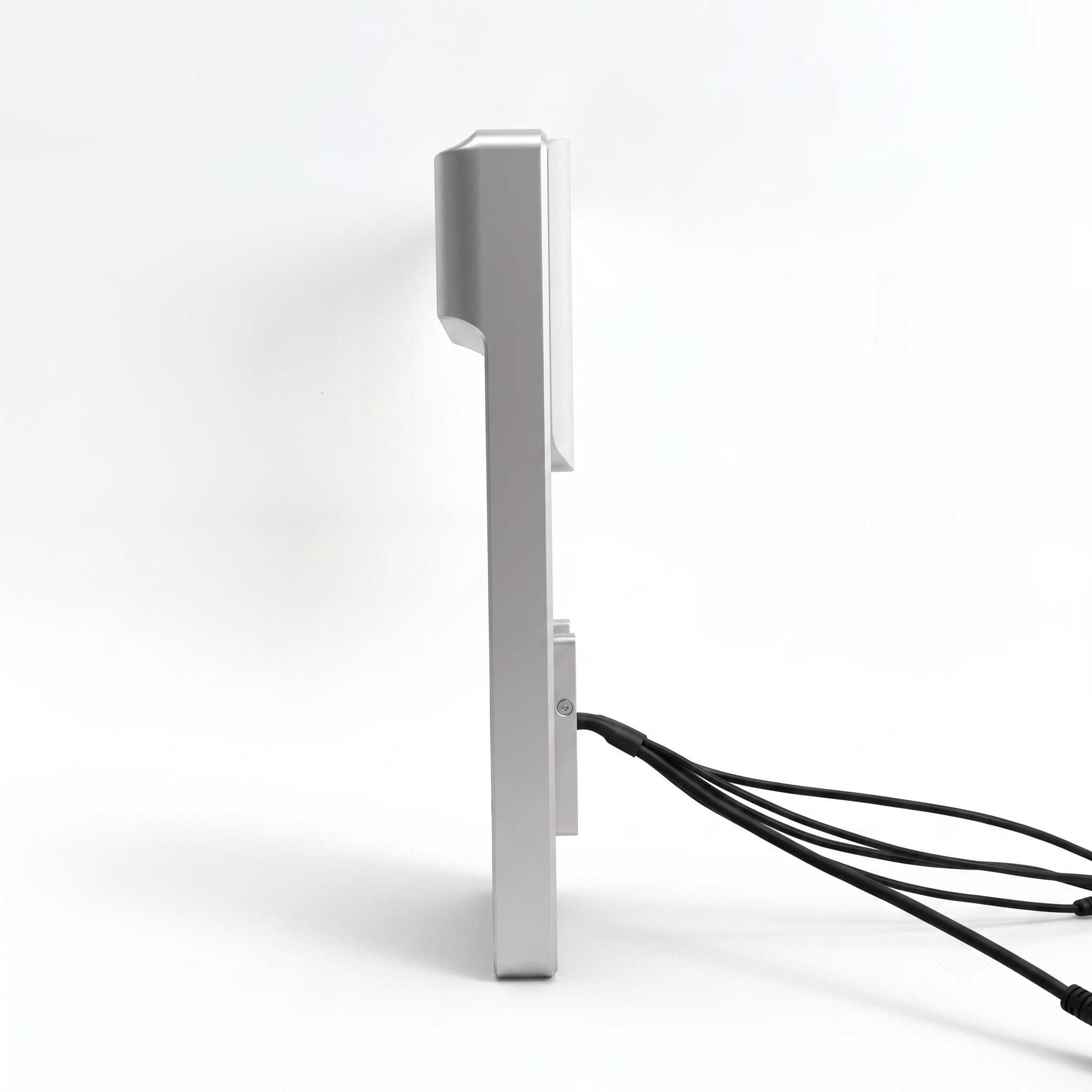

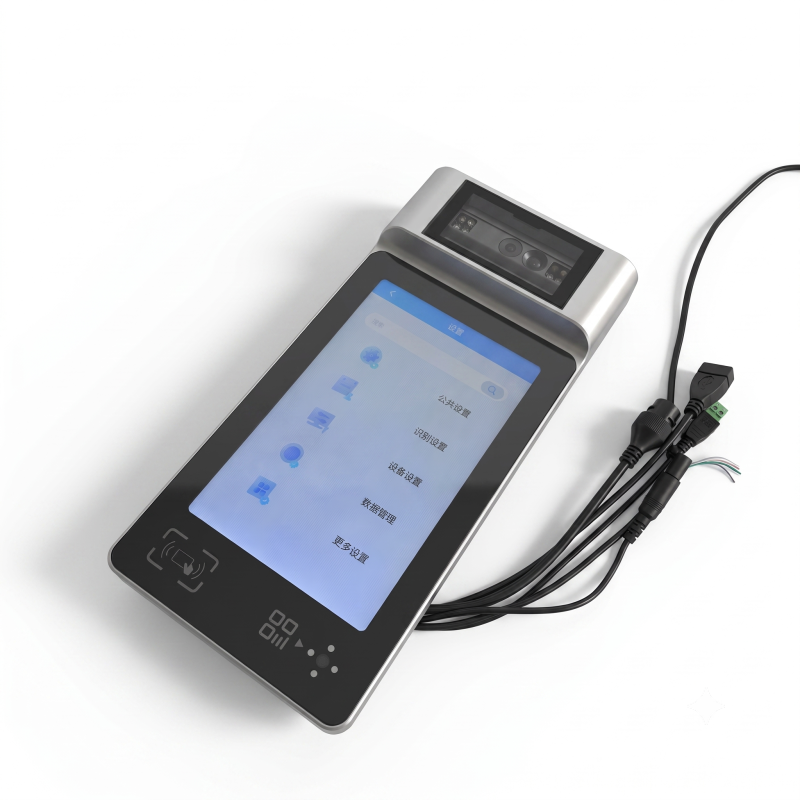

8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
8 Inch Iris Recognition Reader Wall Mount Access Terminal
Specifications
Misrecognition Rate :
One out of Ten Million
Network Interface :
RJ45
Configuration :
2GB+32GB
Surface Material :
Tempered Glass Covered in Front
USB Interface :
USB2.0 Each
Operation Humidity :
5%~93%RH Non-condensable
Luminance :
300cd/m2
Record Storage :
Record Storage >1 Million
Recognition Environment :
Indoor, Outdoor, Night-time
Relay Switch :
Support
Camera :
2 Million Physical Wide Dynamic
Recognition Range :
13cm Cover Height
Liveness Detection :
Support
Using Environment :
Indoor, Outdoor
Touch Screen :
Multi Point Capacitive Touch
Recognition Speed :
200~300ms
Internet :
Wired, Wireless
Recognitioon Distance :
0.5~3Meters
Power Supply :
Support DC12V-3A Input(Not Supporting PoE Power Supply)
Display Size :
8-Inch
Serial Communication :
RS-485
User Capcity :
50 Thousand Faces
Operation Temperature :
-25℃～+75℃
Ethernet :
Support
WiFi :
Support(2.4G)
Brand Name :
Shi Zun
Model Number :
JP1818A
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100+pcs+day
Delivery Time :
10 working days
Packaging Details :
8-Inch
User Capacity :
50000
Color :
Siliver
Wiegand Interface :
Support Wiegand 26, 34 Format
Operating System :
Android
Body Technology :
Aluminum Alloy CNC Precision Carving Oxidation
Payment Terms :
T/T
Resolution :
800*1280
Recognition Accuracy :
99.98%
Description

JP883 Desktop Iris Recognition 8-Inch Attendance and Access Control All-in-One Device including USB 2.0 and built-in Wi-Fi/Bluetooth modules

1. Iris Recognition Device Features:

The JP883 is an intelligent device integrating advanced iris recognition technology and attendance management features. With its desktop design, high-definition display, and powerful processing capabilities, it provides users with a secure and convenient solution for access control and attendance management.

2. Technical Features

  1. High-Definition Display: Equipped with an 8-inch LCD touchscreen display with a resolution of 800×1280, delivering a clear visual experience and smooth touch operations.
  2. Iris Recognition Technology: Features a 5 MP monocular iris camera with a recognition distance of 40–70 cm, offering fast and accurate identification.
  3. Multiple Authentication Methods: Supports iris, card, fingerprint, facial recognition, and password-based authentication to meet diverse application needs.
  4. Large Capacity Storage: Supports up to 10,000 iris templates, 100,000 facial templates, and 100,000 card records, accommodating large-scale personnel management.
  5. Deep Learning Algorithm: Utilizes deep learning algorithms for rapid identification, with iris matching time <1 second per person and facial matching time <0.2 seconds per person.
  6. Versatile Interfaces: Offers multiple interface options, including USB 2.0 and built-in Wi-Fi/Bluetooth modules, for seamless integration with external devices.

3. Application Advantages

  • Enhanced Security: Improves identity verification security with advanced biometric technology.
  • Increased Efficiency: Provides fast recognition speeds and high accuracy, enhancing operational efficiency.
  • Easy Management: Supports local and web-based management for personnel management, parameter configuration, event queries, and system maintenance.

4. Application Scenarios

  • Corporate Offices: Facilitates fast employee attendance and access control management.
  • High-Security Environments: Ideal for secure areas like R&D offices and laboratories.
  • Public Services: Suitable for hospitals, schools, and other public facilities, ensuring secure identity verification and attendance management.

This 8-inch desktop iris recognition attendance and access control all-in-one device combines advanced technology, powerful features, and flexible applications to deliver an efficient and secure solution for access control and attendance management.

Operating System:

Android

 Configuration: 2GB+32GB
LCD Screen Size: 8 inches Screen Resolution: 800 × 1280
Record Storage: Record Storage >1 Million Brightness: 300cd/m2
Camera:

2 Million Physical Wide Dynamic

 Recognition Distance:

30-50cm
User Capacity: 50000 Ethernet: Support
Audio: 3W × 2, voice broadcast for facial comparison results Operating Parameters:
  • Power Supply: Voltage 12V, Current 3A
  • Working Temperature: -30°C to 70°C
  • Working Humidity: 10% to 90%
WiFi: Support(2.4G) USB Interface: USB2.0 Each
Network Interface: RJ45 Serial Communication: RS-485
Wiegand Interface: Support Wiegand 26, 34 Format Power Supply: Support DC12V-3A Input(Not Supporting PoE Power Supply)

8 Inch Iris Recognition Reader Wall Mount Access Terminal8 Inch Iris Recognition Reader Wall Mount Access Terminal8 Inch Iris Recognition Reader Wall Mount Access Terminal8 Inch Iris Recognition Reader Wall Mount Access Terminal8 Inch Iris Recognition Reader Wall Mount Access Terminal
