Customizable 3D Shape Single Tube White Reflector Infrared Heating Element Tube with 150-6000W Power
Customizable 3D Shape Single Tube White Reflector Infrared Heating Element Tube with 150-6000W Power
Customizable 3D Shape Single Tube White Reflector Infrared Heating Element Tube with 150-6000W Power
Customizable 3D Shape Single Tube White Reflector Infrared Heating Element Tube with 150-6000W Power
Customizable 3D Shape Single Tube White Reflector Infrared Heating Element Tube with 150-6000W Power
Customizable 3D Shape Single Tube White Reflector Infrared Heating Element Tube with 150-6000W Power
Specifications
Brand Name :
UVIR
Model Number :
3d Shaped
Certification :
CE & ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
15Work day
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box
Material :
Tungsten (filament) Quartz (Tube), Quartz Tube
Product name :
Infrared Heating Lamp
quartz tube format :
8-14 mm
Voltage :
45-480V,customized
OEM/ODM :
voltage,wattage,length,base,cables,universal burning position,etc
Power :
150-6000W
Description
Customizable 3D Shape Single Tube white reflector Infrared Heating emitters
Product Specifications
Attribute Value
Material Tungsten (filament) Quartz (Tube), Quartz Tube
Product name Infrared Heating Lamp
Quartz tube format 8-14 mm
Voltage 45-480V, customized
OEM/ODM Voltage, wattage, length, base, cables, universal burning position, etc
Power 150-6000W
About Infrared Technology

Infrared (IR) is part of the electromagnetic spectrum ranging from 0.76μm to 1000μm, located just beyond visible red light. While invisible, IR shares properties with light - it travels at light speed, can be directed/focused, and propagates effectively through vacuum.

When absorbed by objects, IR radiation generates internal heat by causing atomic vibration. Unlike conventional heating methods, IR requires no medium (air or water) to transfer thermal energy.

Technical Parameters
Item 3D Contour IR Lamps
Power 150-6000W
Reflector Gold
Response time 1-2s
Voltage 45-480V, customized
OEM/ODM Custom voltage, wattage, length, base, cables, universal burning position available

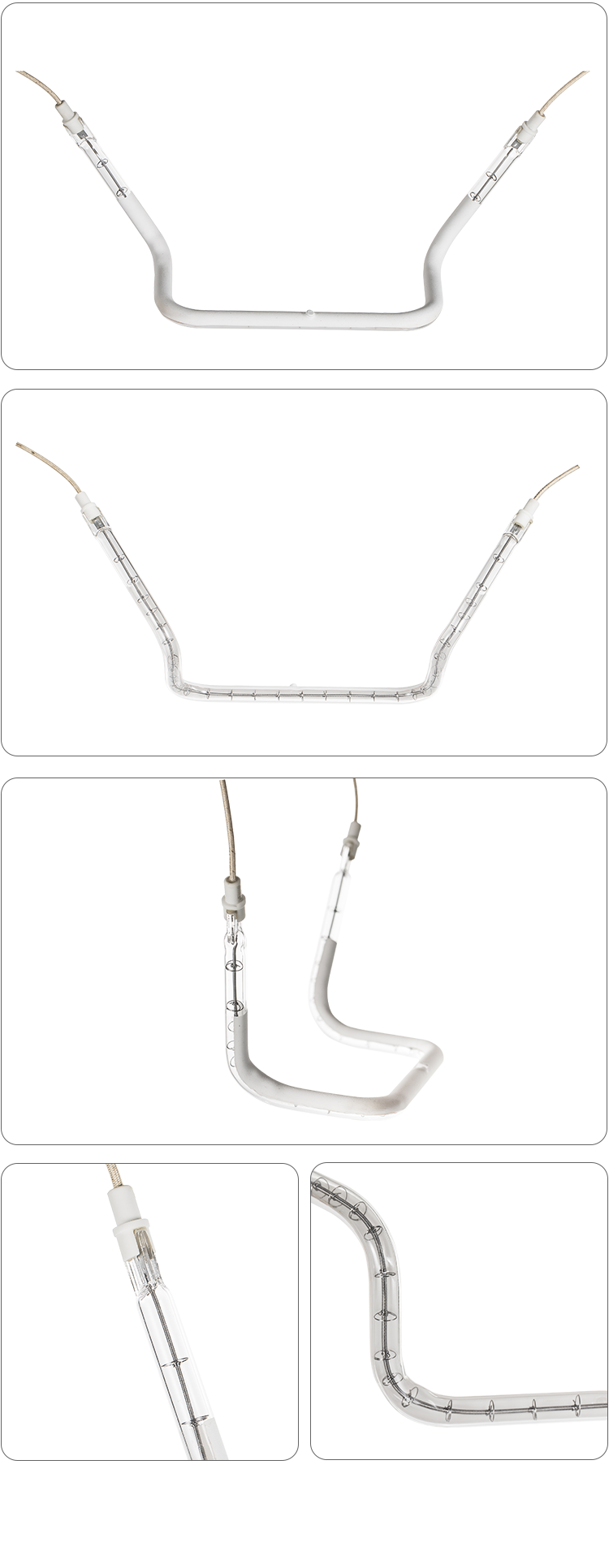

Product Visuals

Customizable 3D Shape Single Tube White Reflector Infrared Heating Element Tube with 150-6000W Power

Standard Product Specifications
115 410 10
SHG300169 SHW300001 SHC300002 280770
115 510 10
SHG300049 SHW300002 SHC300003 284343
115 520 10
SHG300043 SHW300003 SHC300004 282094
115 600 10
SHG300050 SHW300004 SHC300005 282016
115 710 10
SHG300164 SHW300005 SHC300006 282014
115 1100 10
SHG300165 SHW300006 SHC300007 283932
115 1100
11x23 THG300039 THW300001 THC100001 282002
115 1320 10
SHG300037 SHW300007 SHC300008 280773
120 1330 10
SHG300166 SHW300008 SHC300009 284058
120 1450 10
SHG300170 SHW300009 SHC300010 305417
120 1630 10
SHG300035 SHW300010 SHC300011 305418
230 2000 10
SHG300167 SHW300011 SHC300012 314255
230 2200 10
SHG300045 SHW300012 SHC300013 282009
230 2200 10
SHG300046 SHW300013 SHC300014 282008
230 2290 14
SHG300171 SHW300014 SHC300015 297058
230 2800
11x23 THG300038 THW300002 THC300002 281997
240 800 10
SHG300052 SHW300015 SHC300016 283640
240 810 10
SHG300168 SHW300016 SHC300017 280728
240 800 10
SHG300042 SHW300017 SHC300018 292093
240 880 10
SHG300056 SHW300018 SHC300019 280727
For custom specifications not listed above, please contact our technical team. We provide professional consultation and custom engineering drawings.
Industrial Applications
  • Heating Systems: Space heaters, saunas, electric hot tables, incubators, brooders, farm greenhouses
  • Automotive: Primer/color/powder coating, seat de-wrinkling, headliner forming
  • Plastics Processing: Welding, forming, softening, curing, drying
  • Printing: Ink drying, silk screening, bindings, glue drying
  • Food Processing: Baking, browning, dehydrating, pasteurizing
  • Textiles: Web drying, finishing, pre-shrinking
  • Glass & Ceramics: Heating safety glass, drying mirrors, drying frit
Customizable 3D Shape Single Tube White Reflector Infrared Heating Element Tube with 150-6000W Power
Frequently Asked Questions
1. Are you a manufacturer or trading company?

We are a professional manufacturer with complete production facilities.

2. What are your payment terms?

We accept: T/T, Western Union, MoneyGram, PayPal, Trade Assurance

3. Where is your factory located? Can I visit?

Our manufacturing facility is located in JiangMen City, Guangdong Province, China. Visitors can fly to Guangzhou Baiyun International Airport. We welcome all domestic and international clients to tour our operations.

4. Do you supply mounting clamps?

Yes, we provide complementary mounting clamps with all lamp purchases. The quantity matches your order requirements.

5. How do I place an order?

Please provide your specifications including lamp type, diameter, length, power, voltage, and reflector requirements. We will prepare a quotation, and upon payment confirmation, begin production for prompt delivery.
