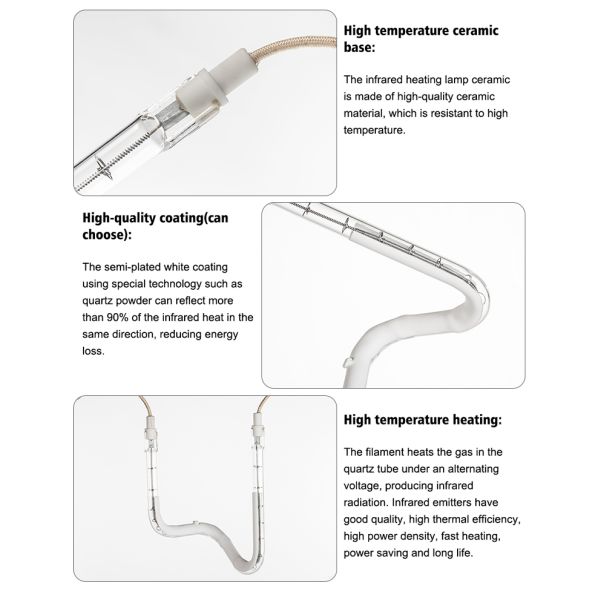

Customizable 3D Shape Infrared Heating Element Tube with 150-6000W Power and 45-480V Voltage
Customizable 3D Shape Infrared Heating Element Tube with 150-6000W Power and 45-480V Voltage
Customizable 3D Shape Infrared Heating Element Tube with 150-6000W Power and 45-480V Voltage
Customizable 3D Shape Infrared Heating Element Tube with 150-6000W Power and 45-480V Voltage
Customizable 3D Shape Infrared Heating Element Tube with 150-6000W Power and 45-480V Voltage
Customizable 3D Shape Infrared Heating Element Tube with 150-6000W Power and 45-480V Voltage
Specifications
Brand Name :
UVIR
Model Number :
3d Shaped
Certification :
CE & ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Delivery Time :
15Work day
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box
Material :
Tungsten (filament) Quartz (Tube), Quartz Tube
Product name :
Infrared Heating Lamp
quartz tube format :
8-14 mm
Voltage :
45-480V,customized
OEM/ODM :
voltage,wattage,length,base,cables,universal burning position,etc
Power :
150-6000W
Description


What is Infrared (IR)?
Infrared (IR) is part of the electromagnetic spectrum ranging from 0.76μm to 1000μm, located just beyond the red color of visible light. While infrared is invisible, it shares properties with light: it travels at light speed, can be directed or focused, and propagates effectively even in vacuum.
When IR radiation is absorbed by an object, internal heat is generated as IR causes atomic vibration, raising temperature. Infrared heating does not require any medium like air or water to transfer heat to substances.
Product Specifications
Item 3D Contour IR Lamps
Power 150-6000W
Reflector Gold
Response Time 1-2s
Voltage 45-480V, customized
OEM/ODM Multiple voltage, wattage, length, base, cable options available with universal burning position
Product Details

Customizable 3D Shape Infrared Heating Element Tube with 150-6000W Power and 45-480V Voltage

Product Applications
  • Heaters: Space heaters, Saunas, Electric hot tables, Incubators, Brooders, Farm greenhouses
  • Automotive: Primer/Color/Powder coating, Seat de-wrinkling, Headliner forming
  • Plastics: Welding, Forming, Softening, Curing, Drying
  • Printing: Ink drying, Silk screening, Bindings, Glue drying
  • Food: Baking, Browning, Dehydrating, Pasteurizing
  • Textiles: Web drying, Finishing, Pre-shrinking
  • Glass-Ceramics: Heating safety glass, Drying mirrors, Drying frit
Customizable 3D Shape Infrared Heating Element Tube with 150-6000W Power and 45-480V Voltage

Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer.
2. What are your company's payment terms?
We accept: T/T, Western Union, , PayPal, Trade Assurance
3. Where is your factory located? How can I visit?
Our factory is located in Jiangmen City, Guangdong Province, China. You can fly directly to Guangzhou Baiyun Airport. We warmly welcome all domestic and international clients to visit us!
4. Do you supply clamps for lamp installation?
Yes, we provide mounting clamps for clients, and the corresponding clamp quantity is supplied freely with purchased lamps.
5. How to place an order?
Provide your required lamp specifications including type, diameter, length, power, voltage, reflector, etc. We will send you a quotation. After payment confirmation, production begins and finished products are shipped to you.
