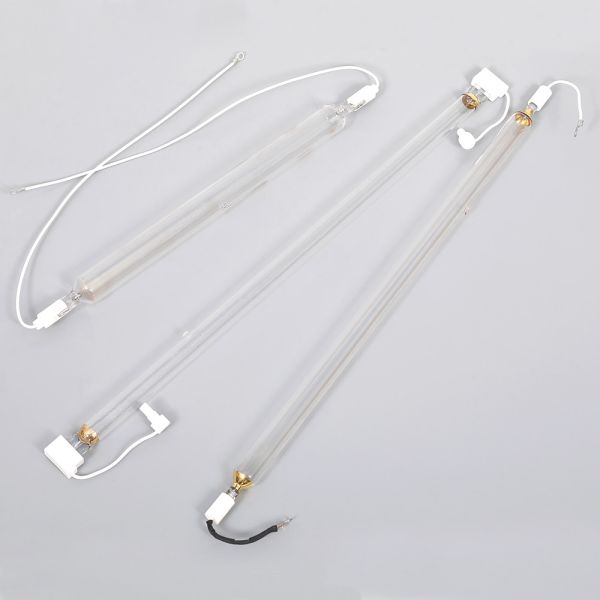

High-Pressure Mercury UV Curing Lamp with 417nm Wave Peak and 2-10KW Power for Industrial Curing Applications
High-Pressure Mercury UV Curing Lamp with 417nm Wave Peak and 2-10KW Power for Industrial Curing Applications
High-Pressure Mercury UV Curing Lamp with 417nm Wave Peak and 2-10KW Power for Industrial Curing Applications
High-Pressure Mercury UV Curing Lamp with 417nm Wave Peak and 2-10KW Power for Industrial Curing Applications
Specifications
Brand Name :
UVIR
Model Number :
XUV 014030 ACG FS
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
15-20 Work day
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box.
Type :
Mercury lamp
Wave Peak :
417nm
Product name :
mercury uv curing lamp
Voltage :
380-1530V
power :
2-10kw
Application :
Electronic components ,Printing，Furniture,Decorative materials and other industries curing
Total length :
175-1425mm
Description
Product Specifications
Type Mercury lamp
Wave Peak 417nm
Voltage 380-1530V
Power 2-10KW
Total Length 175-1425mm
Application Electronic components, Printing, Furniture, Decorative materials and other industrial curing applications
Product Description

Our 3KW 220V 365nm Iodine Gallium Lamp is a high-performance UV exposure lamp designed for industrial curing applications. We specialize in manufacturing and wholesaling various UV lamps, infrared lamps, germicidal lamps, xenon lamps, and related accessories including lamp stands and transformers. Custom solutions are available to meet specific requirements.

Application Areas
  • UV ink, UV glue, UV painting, and UV coating applications
  • Paper glazing and printing circuit boards
  • Decoration and wooden floor manufacturing
  • Flexible packaging and color printing
  • Electronics, glass, and furniture industries
UV Curing Benefits
  • Improved physical properties of inks, coatings, and adhesives
  • Increased production speed and capacity
  • Reduced work-in-progress
  • Minimized setup/cleanup labor
  • Environmentally friendly - energy efficient with no emissions
  • Increased production yield with reduced waste
High-Pressure Mercury UV Curing Lamp with 417nm Wave Peak and 2-10KW Power for Industrial Curing Applications
Lamp Parameters
Power Output 2-10KW
Wavelength 417nm
Arc Length 110-1270mm
Material High Quality Quartz Tube
End Caps Ceramic / Metal
Service Life 800 to 1000 hours
Product Advantages
High-Pressure Mercury UV Curing Lamp with 417nm Wave Peak and 2-10KW Power for Industrial Curing Applications

High-Pressure Mercury UV Curing Lamp with 417nm Wave Peak and 2-10KW Power for Industrial Curing Applications

Additional Model Parameters
Model No. Watt (W) Voltage (V) Current (A) Total Length (mm) Arc Length (mm) Tube φ (mm) Base Wave Peak (nm)
XUV 011020 HCG FS 2 380 5.2 175 110 22.5 HC 417
XUV 014010 ACG FS 1 160 6.2 260 140 22.5 AC 417
XUV 024020 ACG FS 2 135 15 360 240 20 AC 417
XUV 014020 ACG FS 2 160 12.5 260 140 22.5 AC 417
XUV 014020 ACG FS 2 260 7.7 260 140 22.5 AC 417
XUV 014030 ACG FS 3 220 14 260 140 25 AC 417
XUV 029035 ACG FS 3.5 220 22 420 290 15 AC 417
XUV 030036 ACG FS 3.6 220 22 420 300 20 AC 417
XUV 021040 BCG FS 4 450 9 280 210 23 BC 417
XUV 016050 ACG FS 5 380 13 285 160 28 AC 417
XUV 023060 BCG FS 6 500 12 350 230 26 BC 417
XUV 127100 BCG FS 10 1570 7 1425 1270 23 BC 417

If these parameters don't meet your requirements, please contact us. Our professional team can provide technical expertise and custom drawings.

After Sales Service
  • Package tracking
  • Technical support
  • 24-hour response time
  • Discounts for repeat orders
  • Replacements for quality issues
  • Strict confidentiality of customer information
Frequently Asked Questions
Q1: Are you factory or trading company?
A: We are a trading company with our own manufacturing facility.
Q2: Can I have a sample first before bulk order?
A: Yes, we provide free samples for quality testing. Customers only need to cover the freight costs.
Q3: What's your delivery date?
A: Samples typically ship in 5-7 working days, with bulk orders delivered in 15-25 working days.
Q4: What's your shipping method?
A: We offer multiple shipping options:
  • Express: TNT, DHL, FedEx, UPS, EMS (door-to-door)
  • Air freight (provide your airport details)
  • Sea freight (provide your delivery port)
Q5: What's your MOQ?
A: Our minimum order quantity is 100 pieces, though initial sample orders can be smaller.
Q6: Are the products safe enough?
A: All our products undergo rigorous testing and are certified by internationally recognized regulatory bodies and safety organizations.
