400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace
400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace
400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace
400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace
400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace
400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace
Specifications
Brand Name :
UVIR
Model Number :
SHC100019
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Delivery Time :
15-20 work days
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box.
Heating length :
255±5 mm
Reflector :
White
Working Time :
5000h
Wave Length :
Short wave
OEM/ODM :
many types of voltage,wattage,length,base,cables,universal burning position is available
Filament type :
Tungsten
Filament temperature :
1100-2600°C
Power :
1850W
Voltage :
400V
Total length :
328mm
Pipe diameter :
12.8mm
Description

Product Specifications
Attribute Value
Heating length 255±5mm
Reflector White
Working Time 5000h
Wave Length Short wave
OEM/ODM Many types of voltage, wattage, length, base, cables, universal burning position available
Filament type Tungsten
Filament temperature 1100-2600°C
Power 1850W
Voltage 400V
Total length 328mm
Pipe diameter 12.8mm

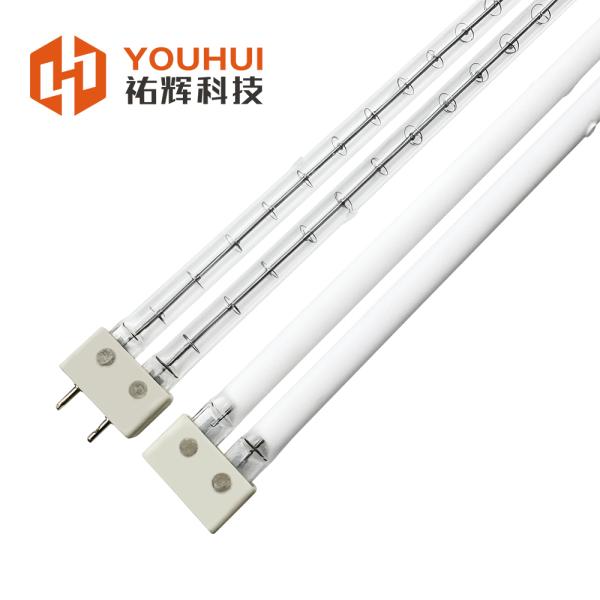

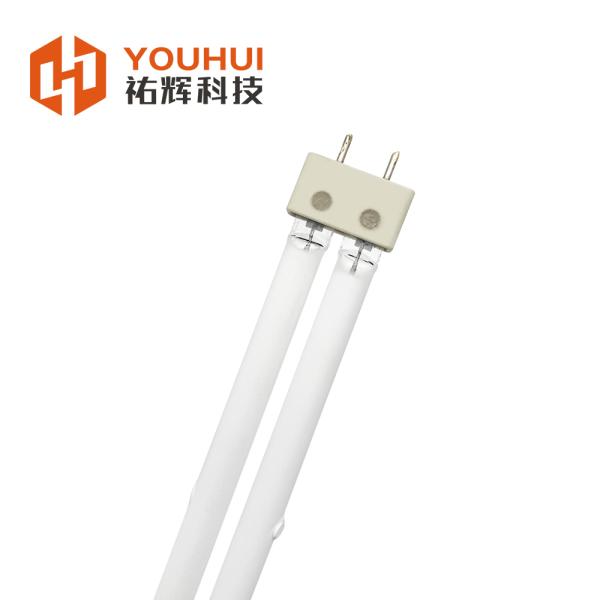

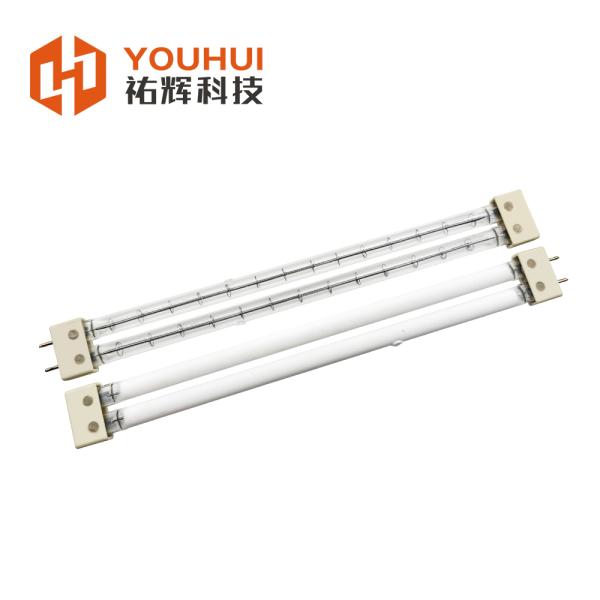

Short Wave Infrared Emitter Transparent Quartz Tube Heating Lamp
Benefits of Infrared Heat
  • Clear heating: No surface corrosion or dropping off
  • Quick controllable heat: Heating time is adjustable as needed
  • Clean and odorless: No risk of contamination to environment or target objects


400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace 400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace 400V 1850W Single Tube Quartz Infrared Lamp with 255mm Heating Length and 1100-2600°C Filament Temperature for Preheating of Annealing Furnace
Application Scenarios
  • Infrared Heating For Plastics Process
    • IR drying of coatings on plastics
    • IR stretching or shrinking plastics
    • IR Heating For Plastic Packaging
    • IR heating for blow moulding of PET bottles
  • Infrared Heating For Photovoltaic Industry
    • IR heating for string soldering
    • IR preheating for sputtering processes
  • Infrared Heating For Printing Industry
    • IR curing ink on cloth
    • IR drying for inkjet-based CTP plates
    • IR drying of printing products (e.g., banners machine)
  • Infrared Heating For Food And Chemical Industry
    • IR heating for disinfection of tableware
    • IR heating of chicken and vegetables
    • IR heating of natural herbal medicine
    • IR heating for removing snow and ice
  • Infrared Heating For Glass Industry
    • IR preheating of car glass
    • IR drying of coatings on glass
    • IR heating for manufacturing and cutting laminated glass
  • Infrared Heating For Textiles Industry
    • IR drying of coatings on textiles
    • IR heating for laminating of fabrics
  • Infrared Heating For Electronic Industry
    • Coatings on electronic components
    • The aging of the electronic components
OEM Service

We can advise customers in choosing the right heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical requirements.

We produce various sizes and types of heat lamps according to customer specifications. Providing drawings helps us create accurate samples for your evaluation.
