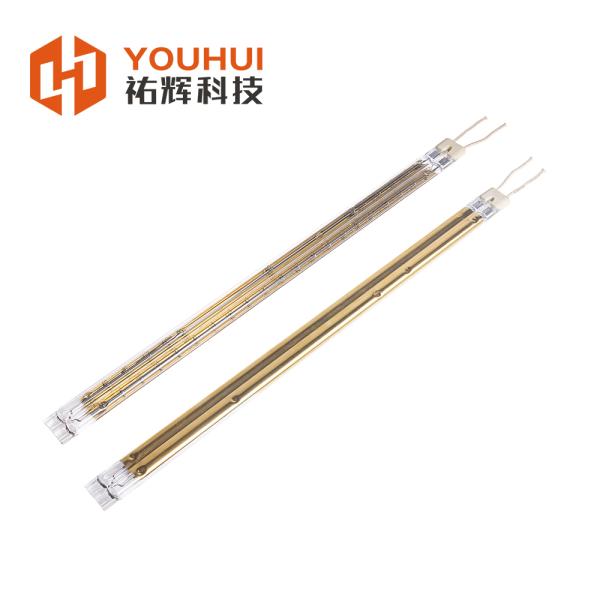

Main components of a Twin tube infrared lamp:
1. Fused silica
2. Tungsten heating elements
3. Supports for heating wire
4. End plate and ceramic end
5. Wire leads
6. Reflective layer. Shown: gold layer
7. Proprietary gas composition.






TECHNICAL NOTES:

• IR lamp as emitter. The emissivity values of the tungsten are greater in the near and short-wave infrared regions.
• The heating efficiency of an IR lamp can be easily increased by employing reflectors. On its the exterior surface,the options are gold and white layers.Outside of the lamp, the best options are parabolic/elliptic shapes for single and twin lamps with gold coated layer.

• The life of an IR lamp greatly depends on its coil's operating temperature: A 10% increase/decrease on its rated voltage results on a 30% decrease/ increase on its life.
• The optimum operating temperatures for various components of an infrared lamp are:

1.Pinch-seal area, max.350°C
2.Quartz tube, max. and min.temp. are 900°C and 250°C,respectively.


Product information:

Product Coding Rule Table

After-sale Service

Warranty Time of Short wave Infrared heat lamp: 5,000 hours

During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.


FAQ

1.How to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.

2.Why Reflector
All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ ceramic coating can concentrate the heat, increasing the effectiveness of the heat output. The emitters with coating are highly economical, converting practically all the consumed electrical power into heat. For the emitters with high watt density or the surface temperature of the tube above 800°C , we suggest to use ceramic coating as
reflector because the temperature resistance is up to 1000°C In addition to 180° (half-tube) coating, we also provide customer specified degrees.

3.Could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.

4.Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
