175V 1800W Tungsten Filament Single Tube Quartz Heater Lamp with 5000h Working Time for HP 3D Printing Machine 4210
175V 1800W Tungsten Filament Single Tube Quartz Heater Lamp with 5000h Working Time for HP 3D Printing Machine 4210
175V 1800W Tungsten Filament Single Tube Quartz Heater Lamp with 5000h Working Time for HP 3D Printing Machine 4210
175V 1800W Tungsten Filament Single Tube Quartz Heater Lamp with 5000h Working Time for HP 3D Printing Machine 4210
Specifications
Brand Name :
UVIR
Model Number :
SHC100693
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Delivery Time :
15-20 work days
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box.
Reflector :
Clear
Voltage :
55-575V
Warranty(Year) :
1-Year
Tube diameters :
8-24mm,Customized
Material :
Tungsten
Wavelength :
1-2μm
Working Time :
5000h
Heating length :
50-1500mm,Customized
Start Time :
1s
Description

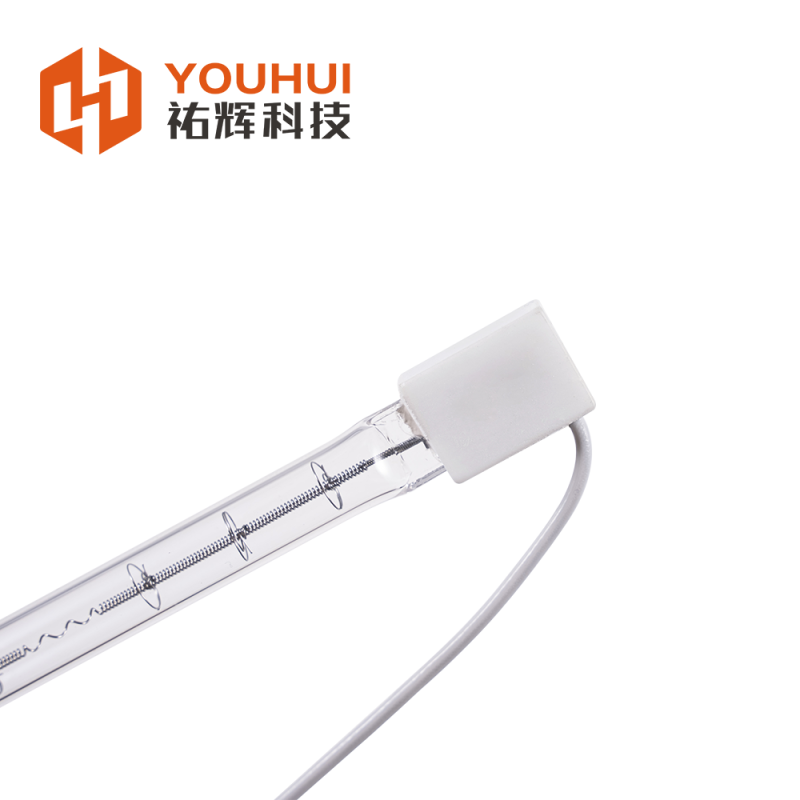

175V 1800W single tube quartz heater lamp for HP 3D Printing machine 4210
High-performance infrared heating emitters featuring tungsten filament technology for efficient, direct energy transfer across industrial applications.
Product Specifications
Attribute Value
Reflector Clear
Voltage 55-575V
Warranty 1-Year
Tube diameters 8-24mm, Customized
Material Tungsten
Wavelength 1-2μm
Working Time 5000h
Heating length 50-1500mm, Customized
Start Time 1s
Infrared Heating Advantages
Infrared radiators outperform traditional heating methods with direct energy transfer, precise temperature control, and up to 50% energy savings compared to conventional heating systems.
Technical Details

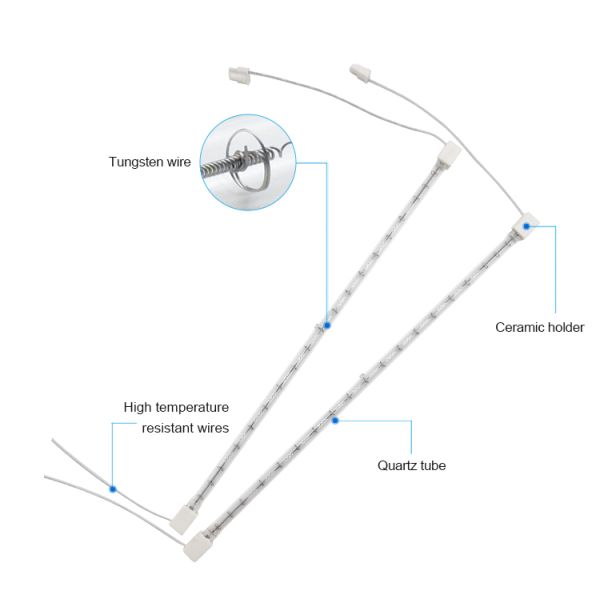

  • High-quality transparent quartz tube construction
  • Power range: 200-5,000W
  • Voltage options: 24-575V
  • Available in short, medium, and long-wave IR designs
  • Filament temperatures: 1,100°C to 2,600°C
  • Fast response time (1 second for short-wave)
  • Standard and custom configurations available
175V 1800W Tungsten Filament Single Tube Quartz Heater Lamp with 5000h Working Time for HP 3D Printing Machine 4210


Infrared lamp for 3d Printing machine
175V 1800W Tungsten Filament Single Tube Quartz Heater Lamp with 5000h Working Time for HP 3D Printing Machine 4210
Industrial Applications
  • Plastics Processing: IR drying, stretching, shrinking, and blow molding
  • Photovoltaic Industry: String soldering and sputtering preheating
  • Printing Industry: Ink curing and drying applications
  • Food & Chemical: Disinfection, food heating, and snow removal
  • Glass Industry: Preheating, coating drying, and laminated glass production
  • Textiles: Coating drying and fabric laminating
  • Electronics: Component coating and aging processes
Our infrared heating solutions are also suitable for flooring, metal, paper, packaging, rubber, wood, semiconductors, and other industrial applications.
Our Commitment to Quality
  • Dedicated sales team for accurate communication
  • Professional technical team for product development
  • Experienced production team for quality manufacturing
  • Rigorous quality inspection process
  • Comprehensive after-sales support
