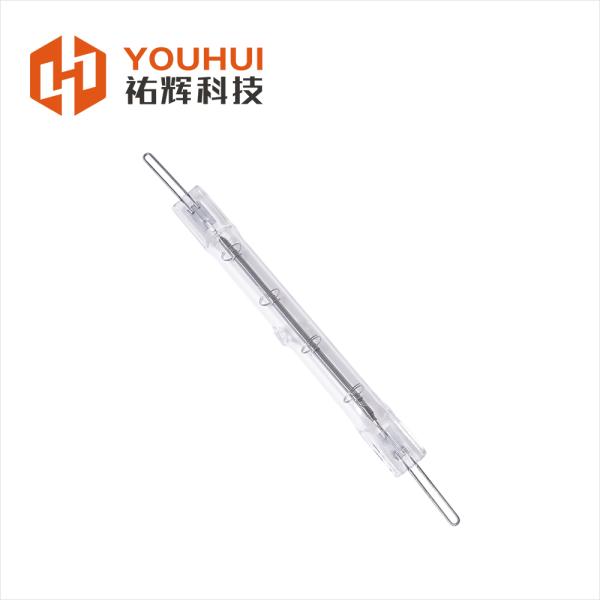

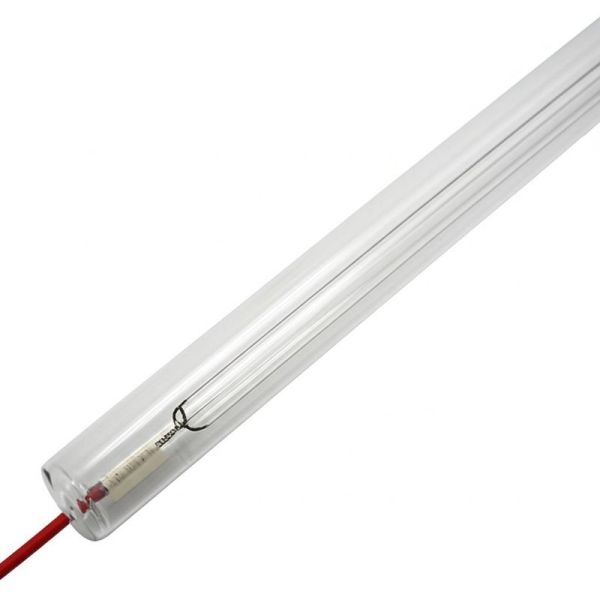

Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
Specifications
Brand Name :
UVIR
Model Number :
SHC100142
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Delivery Time :
15-20 work days
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box.
Wavelength :
1-2μm
Working Time :
5000h
Reflector :
Clear
Heating Length :
50-1500mm
Application :
Heating
Material :
Tungsten、quartz glass
Reponse time :
1s
Power :
150-4000W
Voltage :
55-575V
Description
Customizable 200-4000W Clear Quartz Tungsten filament infrared heating lamp
Product Specifications
Attribute Value
Wavelength 1-2μm
Working Time 5000h
Reflector Clear
Heating Length 50-1500mm
Application Heating
Material Tungsten, quartz glass
Response time 1s
Power 150-4000W
Voltage 55-575V
Our Advantages
  • Expert consultation for selecting the optimal heat lamp for specific applications
  • Custom designs available based on technical specifications
  • Flexible production of various sizes and types according to customer requirements
  • Sample production available with provided drawings
Product Details
Filament Tungsten
Lamp reflector White Reflector
Voltage 150-4000, customized
Wattage 55-575, customized
Base Type Customized
Tube diameter 8-24mm
Life Time >5000hrs
OEM/ODM Available for voltage, wattage, length, base, cables, universal burning position
Main Design Characteristics
  • Power range: 200 to 5,000 W
  • Voltage range: 24 to 575 V
  • Short, Medium and Long-Wave IR designs available
  • Filament temperatures: 1,100°C to 2,600°C
  • Heat lengths: 50 to 1,500 mm
  • Reflective layers: gold, white
  • Fast response time: 1 second for S-W
  • Tube diameters: 8 to 25 mm
  • Standard stock items for immediate delivery
  • Custom and OEM designs available

Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time

Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
Standard Single Tube Construction Types

Additional Standard End Terminations Available Upon Request

Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
Infrared Lamps for Industrial Applications
Customizable 200-4000W Clear Quartz Tungsten Filament Infrared Heating Lamp with 1-2μm Wavelength and 5000h Working Time
After Sales Service
  • Package tracking
  • Technical support
  • 24 hours working time
  • Discount for reorder
  • Replacements for quality problems
  • Confidentiality of customer information
Frequently Asked Questions
1. Are you a factory or trading company?
We are a professional factory.
2. Where is your factory located? How can I visit there?
Our factory is located in JiangMen City, Guangdong Province, China. You can fly to GuangZhou BAIYUN airport directly. We warmly welcome all clients to visit us!
3. Can I get some samples?
We are happy to offer samples for you to check and test.
4. Do you have any MOQ limit?
Low MOQ, 1pc for sample checking is available.
5. What about the lead time?
Sample needs 3-7 work days, mass production time needs 10-20 work days for order quantity more than 1000 PCS.
6. What certificates you have? What is the life time of the IR lamps?
CE, ISO9001, RoHS, SGS authentication already passed, each lamp with life more than 5000-20000hrs.
7. Do you offer guarantee for the products?
Yes, we will confirm the guarantee period in formal quotation together with data sheet.
