Industrial Use 1250°C Working Temperature High Purity Quartz Infrared Heating Element and Halogen Heating Tube
Industrial Use 1250°C Working Temperature High Purity Quartz Infrared Heating Element and Halogen Heating Tube
Industrial Use 1250°C Working Temperature High Purity Quartz Infrared Heating Element and Halogen Heating Tube
Industrial Use 1250°C Working Temperature High Purity Quartz Infrared Heating Element and Halogen Heating Tube
Specifications
Brand Name :
UVIR
Model Number :
THC300085
Certification :
CE & ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Delivery Time :
15-20 Work day
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box
Voltage(V) :
55-575V
Lighting solutions service :
Lighting and circuitry design
Color :
Clear,White,gold
Power :
200-6000W
Quartz Tube :
11*23mm
Shape :
L
Coating :
Gold
Description

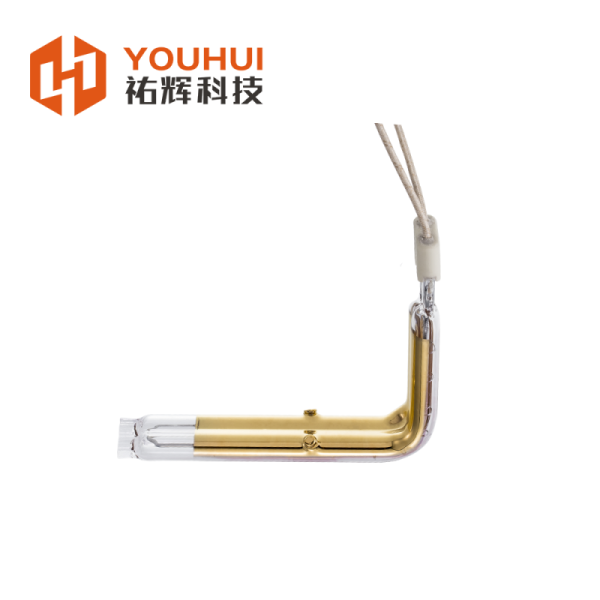

Gold Halogen L Shape Heating Element 1050W 230V For Industrial
Product Specifications
Voltage(V) 55-575V
Lighting solutions service Lighting and circuitry design
Color Clear, White, gold
Power 200-6000W
Quartz Tube 11*23mm
Shape L
Coating Gold


Reflector Technology

Our emitters feature optional gold or ceramic reflector coatings that concentrate heat output for maximum efficiency. The gold coating provides excellent thermal performance, converting nearly all electrical power into usable heat. For applications exceeding 800°C surface temperature, we recommend ceramic coating with temperature resistance up to 1000°C. Custom coating configurations (including 180° half-tube) are available.

Key Advantages
  • High purity quartz (SiO2 > 99.99%)
  • Working Temperature: 1250°C; Soften Temperature: 1730°C
  • Exceptional thermal stability
  • Resistant to acids and alkalis
  • Superior electrical insulation
  • High light transmission: >93% visible, >85% UV
Technical Specifications
Product name Infrared lamp
Voltage (V) 55-575V
Wattage (W) 200-6000W
Quartz Tube (mm) 11*23
Shape L
Reflector GOLD
Industrial Use 1250°C Working Temperature High Purity Quartz Infrared Heating Element and Halogen Heating Tube Industrial Use 1250°C Working Temperature High Purity Quartz Infrared Heating Element and Halogen Heating Tube

Industrial Use 1250°C Working Temperature High Purity Quartz Infrared Heating Element and Halogen Heating Tube

Industrial Use 1250°C Working Temperature High Purity Quartz Infrared Heating Element and Halogen Heating Tube

Industrial Applications
  • Plastics Processing: IR drying, stretching/shrinking, packaging, PET bottle molding
  • Photovoltaic Industry: String soldering, sputtering preheating
  • Printing Industry: Ink curing, plate drying, banner production
  • Food & Chemical: Disinfection, food heating, herbal medicine processing
  • Glass Industry: Preheating, coating drying, laminated glass production
  • Textiles: Fabric coating drying, laminating
  • Electronics: Component coating, aging processes

OEM Services

Our technical team provides expert guidance in selecting or designing the optimal heating solution for your specific requirements. We manufacture custom sizes and configurations based on your technical specifications, with sample production available for approved designs.


Frequently Asked Questions
Can I get some samples?

We are happy to offer samples for evaluation and testing.

Do you have any MOQ limit?

Minimum order quantity is just 1 piece for sample verification.

What about the lead time?

Production typically completes within 15-20 days after payment confirmation.

How does your factory handle quality control?

Quality is our top priority with rigorous QC processes at every production stage. Our facility maintains CE, ISO9001, RoHS, and SGS certifications.

Note: Contact us for custom specifications or technical drawings. Our professional team will provide expert guidance for your specific application requirements.
