Single Tube Carbon Infrared Lamp with 5000 Hours Lifespan 85% Heat Efficiency and Customizable Wavelength for Industrial Drying
Single Tube Carbon Infrared Lamp with 5000 Hours Lifespan 85% Heat Efficiency and Customizable Wavelength for Industrial Drying
Single Tube Carbon Infrared Lamp with 5000 Hours Lifespan 85% Heat Efficiency and Customizable Wavelength for Industrial Drying
Single Tube Carbon Infrared Lamp with 5000 Hours Lifespan 85% Heat Efficiency and Customizable Wavelength for Industrial Drying
Specifications
Brand Name :
UVIR
Model Number :
SCC100078
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotiable
Delivery Time :
15-20 work days
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box.
Warranty(Year) :
1year
Heating length :
50-1500mm
Reflector :
Clear
Base type :
TC04
Material :
quartz tube/tungsten wire
OEM/ODM :
many types of voltage,wattage,length,base,cables,universal burning position is available
Type :
Carbon IR Lamp
Description
Single Tube Carbon Infrared Lamp
High quality infrared heating accessories for industrial drying applications
Product Specifications
Warranty 1 year
Heating length 50-1500mm
Reflector Clear
Base type TC04
Material Quartz tube/Carbon fiber
OEM/ODM Available for voltage, wattage, length, base, cables, universal burning position
Type Carbon IR Lamp
IR Lamp Advantages
  • Premium materials: Manufactured from imported high-end quartz tube
  • Extended lifespan: 5000 hours for mid-temp and low-temp models
  • High efficiency: Over 85% heat efficiency at full power
  • Energy-saving reflective layer: Gold or non-organic coating concentrates radiation energy
  • Clean heating process: No surface corrosion or material dropping
  • Precise heat control: Adjustable heating time as needed
  • Environmentally friendly: No contamination risk to environment or target objects
  • Customizable: Wavelength, dimensions, and filaments can be adjusted
  • Energy efficient: Lower consumption, compact size, superior heating results
Product Details
Our infrared heaters provide optimal energy savings of up to 50% compared to other technologies, with precise heating at the required wavelength for your specific application.
Type Carbon fiber IR lamps
Model RCC800013
Voltage 55-575V
Wattage 200-4000W
Base TC04
Lamp tube material Carbon fiber
Reflector Clear
OEM/ODM Available for voltage, wattage, length, base, cables, universal burning position
Carbon Felt Infrared Heating Lamp
Single Tube Carbon Infrared Lamp with 5000 Hours Lifespan 85% Heat Efficiency and Customizable Wavelength for Industrial Drying

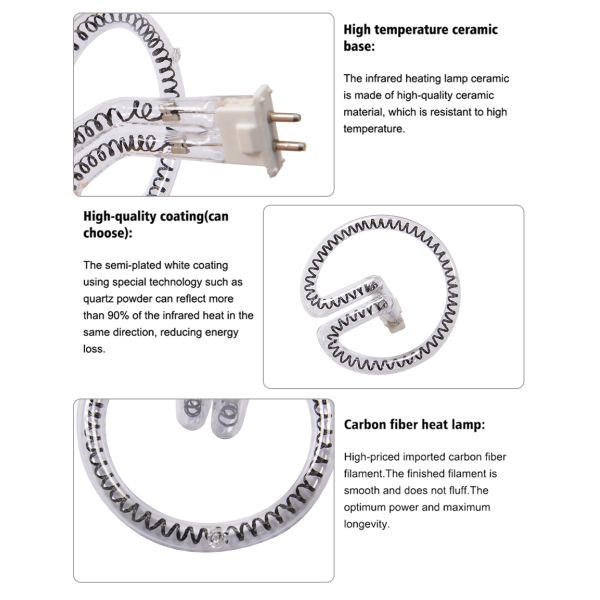

High-Quality Coating (Optional)
The semi-plated white coating uses quartz powder technology to reflect over 90% of infrared heat in one direction, minimizing energy loss.
Safety Precautions
  • Install in environments free from flammable, explosive, corrosive gases and conductive dust
  • Ensure proper positioning and fixation using appropriate metal or ceramic pipe clamps
  • Handle quartz glass components carefully to prevent mechanical damage
  • Implement necessary protective measures based on the heated object's specific conditions
Frequently Asked Questions
Are you a factory or trading company?
We are a professional factory.
Where is your factory located? How can I visit there?
Our factory is located in JiangMen City, Guangdong Province, China. You can fly to Guangzhou BAIYUN airport directly. We warmly welcome all clients to visit us!
Can I get some samples?
We are happy to offer samples for you to check and test.
Do you have any MOQ limit?
Low MOQ, 1 piece for sample checking is available.
What about the lead time?
15 days after receiving your payment.
How does your factory do regarding quality control?
"Quality is priority." We maintain strict quality control from beginning to end. Our factory has CE, ISO9001, RoHS, and SGS certifications.
About customized service?
We provide tailored heating solutions and OEM services, including custom branding as required.
About after-sale service?
Any confirmed quality issues will be compensated to our customers.
