Carbon Z-type double tube medium wave infrared heating tube with 5000 hours lifespan quartz tube material and custom voltage wattage
Carbon Z-type double tube medium wave infrared heating tube with 5000 hours lifespan quartz tube material and custom voltage wattage
Carbon Z-type double tube medium wave infrared heating tube with 5000 hours lifespan quartz tube material and custom voltage wattage
Carbon Z-type double tube medium wave infrared heating tube with 5000 hours lifespan quartz tube material and custom voltage wattage
Specifications
Brand Name :
UVIR
Model Number :
Carbon emitters
Certification :
CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Delivery Time :
15-20 work days
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box.
Product name :
Medium wave Carbon IR Lamp
Tube diameters :
11*23/15*33mm
Material :
quartz(tube)
Wavelength :
2μm
Application :
Infrared heater, Painting drying
OEM/ODM :
many types of voltage,wattage,length,base,cables,universal burning position is available
Description

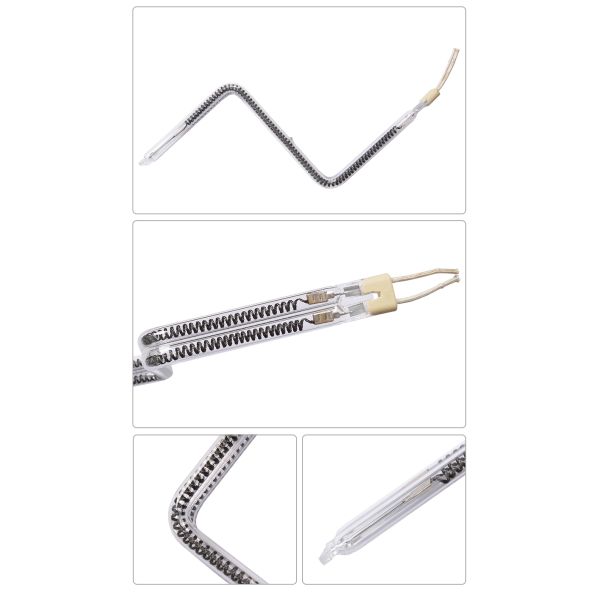

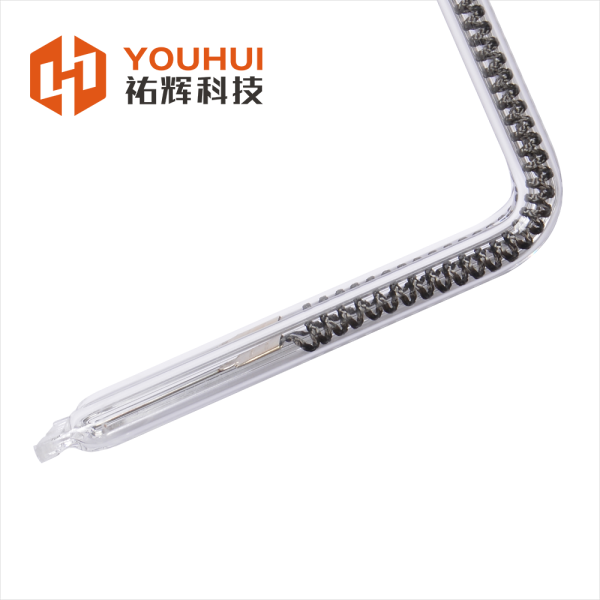

Carbon Z-type Double Tube Medium Wave Infrared Heating Tube
Carbon Z-type double tube medium wave infrared heating tube suitable for paint curing and water treatment equipment.
Product Specifications
Attribute Value
Product name Medium wave Carbon IR Lamp
Tube diameters 11*23/15*33mm
Material Quartz (tube)
Wavelength 2μm
Application Infrared heater, Painting drying
OEM/ODM Custom voltage, wattage, length, base, cables, universal burning position available
Product Features
  • Premium materials: Manufactured from imported high-end quartz tube
  • Extended lifespan: 5000 hours for mid-temp and low-temp models
  • High efficiency: Over 85% heat efficiency at full power
  • Energy-saving reflective layer: Gold or non-organic coating concentrates radiation energy
  • Reliable heating: No surface corrosion or flaking concerns
  • Precise control: Adjustable heating time as needed
  • Clean operation: No environmental contamination or odor
  • Custom solutions: Adjustable wavelength, dimensions, and filaments
  • Energy efficient: Lower consumption with superior heating results
Technical Details
Product Name Carbon infrared heating lamp
Material Quartz tube and Carbon wire
Voltage Customized
Wattage Customized
Tube diameters 11*23/15*33mm
Warranty 5000 hours
Reflector Gold/White/Clear
OEM/ODM Custom voltage, wattage, length, base, cables, universal burning position available

High-quality transparent quartz tube material increases infrared radiation density

Carbon Z-type double tube medium wave infrared heating tube with 5000 hours lifespan quartz tube material and custom voltage wattage
Advanced Coating Technology

Semi-plated white coating using quartz powder technology reflects over 90% of infrared heat in one direction, minimizing energy loss.

Industrial Applications
  • Plastics Processing: IR drying, stretching/shrinking, packaging, blow molding
  • Photovoltaic Industry: String soldering, sputtering preheating
  • Printing Industry: Ink curing, plate drying, product drying
  • Food & Chemical: Disinfection, food heating, herbal medicine processing
  • Glass Industry: Preheating, coating drying, laminated glass production
  • Textiles: Coating drying, fabric laminating
  • Electronics: Component coating, aging processes
Also suitable for: flooring, metal, paper, packaging, powder, coating, rubber, wood, semiconductors and more.
Frequently Asked Questions
1. Are you a factory or trading company?
We are a professional factory.
2. Where is your factory located?
Our factory is located in JiangMen City, Guangdong Province, China. Visitors can fly to Guangzhou Baiyun International Airport.
3. Can I get samples?
Yes, we provide samples for testing and evaluation.
4. What is your MOQ?
Minimum order quantity is just 1 piece for sample checking.
5. What is your lead time?
15 days after receiving payment.
6. How do you ensure quality?
We maintain strict quality control with CE, ISO9001, RoHS, and SGS certifications.
7. Do you offer customization?
Yes, we provide OEM services including custom heat solutions and logo printing.
Contact us for any specific requirements or additional information.
