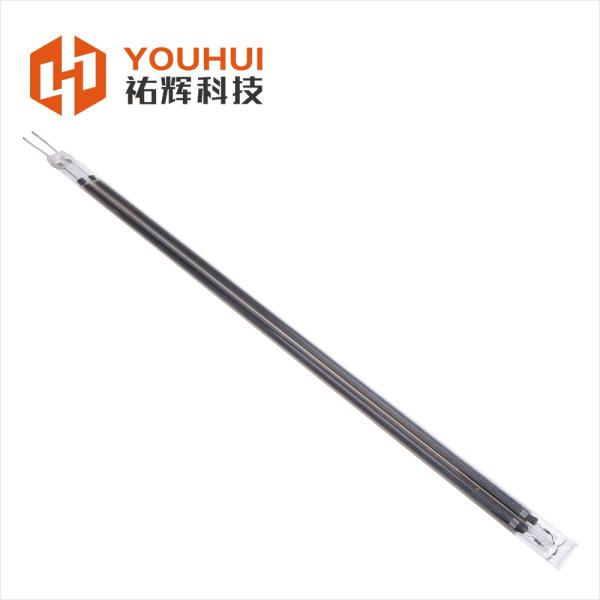

Dual Tube Carbon Fiber Infrared Heating Lamp with Gold Coating and 5000-20,000 Hours Warranty
Dual Tube Carbon Fiber Infrared Heating Lamp with Gold Coating and 5000-20,000 Hours Warranty
Dual Tube Carbon Fiber Infrared Heating Lamp with Gold Coating and 5000-20,000 Hours Warranty
Dual Tube Carbon Fiber Infrared Heating Lamp with Gold Coating and 5000-20,000 Hours Warranty
Specifications
Model Number :
TCG100035
Material :
Quartz glass & Carbon fiber
Brand Name :
UVIR
Name :
Carbon fiber Infrared heating lamp
MOQ :
Negotiable
Packaging Details :
Each lamp in a cylinder .Then in a professional plywood box
Warranty Period :
5000-20,000 hours
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Shape :
Straight
Delivery Time :
15 Work day
Power :
200-4000w
Price :
Negotiable
Application :
Used in all kinds of industry heating process
Certification :
CE & ROHS
Reflector :
Ceramic, gold and no reflector
Place of Origin :
China
Coating :
Gold Coating
Description
Industrial Heating Accessories: Dual Tube Carbon Felt Medium Wave Infrared Heater Lamps with Semi-Gold Coating
Product Overview

Premium infrared heating lamps featuring dual tube carbon felt technology with semi-gold coating for efficient industrial heating applications.

Attribute Value
Name Carbon fiber Infrared heating lamp
Material Quartz glass & Carbon fiber
Reflector Ceramic, gold and no reflector
Coating Gold Coating
Warranty Period 5000-20,000 hours
Application Used in all kinds of industry heating process
Shape Straight
Power 200-40000w

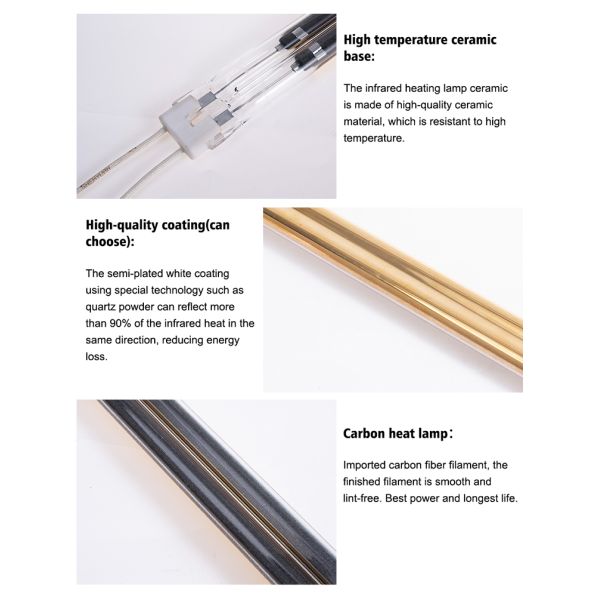

High-Purity Twin Tube Quartz Heater Lamp

This premium infrared heating lamp features an 8-shape high-purity clear quartz twin tube design. Each tube contains a U-shaped heating coil made of carbon fiber material, enclosed in inert gas. The lamp achieves an impressive power density of up to 150w/cm with rapid heating and cooling times of 3-5 seconds.

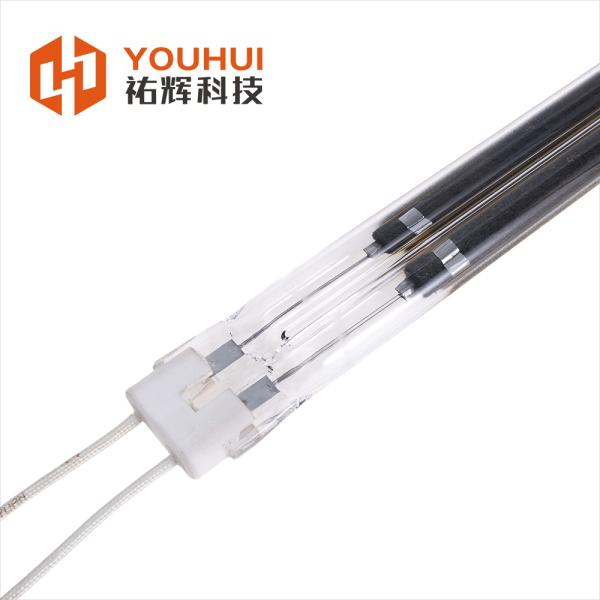

Filament Structure
Dual Tube Carbon Fiber Infrared Heating Lamp with Gold Coating and 5000-20,000 Hours Warranty
Gold Coating Benefits
  1. All emitters can be coated with gold or ceramic reflectors to concentrate heat, increasing effectiveness of heat output.
  2. Coated emitters are highly economical, converting nearly all consumed electrical power into usable heat.
  3. For high watt density applications (surface temperature above 800°C), we recommend ceramic coating with temperature resistance up to 1000°C.

We offer standard 180° (half-tube) coating as well as custom 270° coating or other specified degrees to meet your application requirements.

Dual Tube Carbon Fiber Infrared Heating Lamp with Gold Coating and 5000-20,000 Hours Warranty
Why Choose Our Infrared Heating Lamps
  • Great Quality: Materials approved through UL testing for superior performance
  • Rich Experience: 10+ years manufacturing expertise with experienced workforce
  • Direct Factory Production: Complete control over delivery, materials, and quality
  • Best After-Service: Replacement delivery within 3-5 work days for warranty claims
  • Safe Packaging: Protective packaging to prevent damage during shipping
  • Complete Fittings: Includes 2 free clamps per lamp
  • Flexible Payment: Accept wire transfer, PayPal, and Western Union
  • Global Shipping: Options include DHL, FedEx, TNT, UPS, air, and sea
Frequently Asked Questions
What is the payment term?
100% prepayment via wire transfer, PayPal, or Western Union.
Could you provide sample for performance testing and appearance checking?
Yes, we can provide samples based on your required specifications.
What information should I provide when enquiring?
Please include: lamp type, total length, heating length, wattage, voltage, ceramic end connection, lead length (standard 300mm), coating preference (gold/ceramic), and quantity. For new projects, please describe your application including material, required working temperature, heating time, and heating size.
