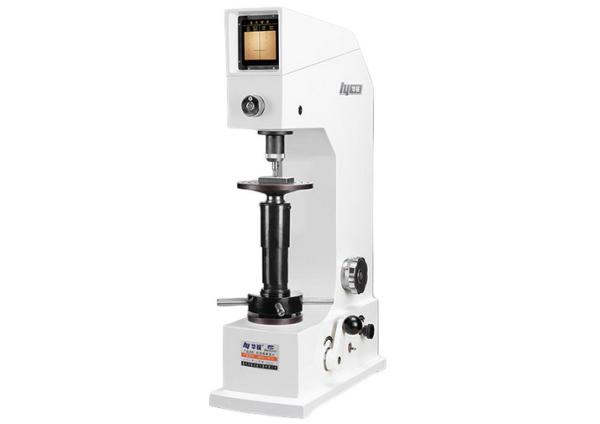

Optical Brinell Rockwell Vickers Hardness Tester HBRV-187.5 with 40x Reading Microscope
Optical Brinell Rockwell Vickers Hardness Tester HBRV-187.5 with 40x Reading Microscope
Specifications
Brand Name :
iqualitrol
Model Number :
HBRV-187.5
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Box
Model :
HBRV-187.5
Test Space :
Height 200 * Depth 160mm
Microscope :
40X Reading Microscope, High Precision
Rockwell :
range: 20-95HRA,10-100HRBW, 20-70HRC
Description

Optical Brinell Rockwell Vickers Multi-functional Hardness Tester HBRV-187.5 with 40x Reading Microscope

Main Features:

● iqualitrol HBRV-187.5 is a multifunctional hardness tester with weight loading test force, which can simultaneously perform Brinell, Rockwell and Vickers hardness test functions;

● Solid structure, good rigidity, reliable, durable, and high test efficiency;

● 40X reading microscope, high precision;

● Rockwell hardness scale apply optical screen direct reading, Brinell and Vickers hardness results are obtained by looking up the table;

● The accuracy complies with GB/T230.2, GB/T231.2, GB/T4340.2; ISO6508-2, ISO6506-2, ISO6507-2 and American ASTM E18, ASTME10, ASTM E92.

Technical Specifications:

ModelHBRV-187.5
Test ForceRockwell60, 100, 150kgf (588, 980, 1471N)
Brinell

306.5, 612.9, 1838.8(N)

31.25, 62.5, 187.5(kgf)

Vickers

294.2, 980.7(N)

30, 100(kgf)

Hardness ScalesRockwellHRA, HRBW, HRC
BrinellHBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5
VickersHV30, HV100
Range of MeasurementRockwell20-95HRA,10-100HRBW, 20-70HRC
Brinell5-650HBW
Vickers5-3000HV
IndentersDiamond Rockwell Indenter, Diamond Vickers Indenter, Ф1.588mm, Ф2.5mm,Ф5mm Tungsten Carbide Brinell Ball Indenter
Magnifications40X
Dwell Time1 to 99 seconds
Distance between Indenter Center and Wall160mm
Available Maximum Height of SpecimenRockwell200mm
Brinell, Vickers200mm
Outline Dimension520*260*780mm
Power SupplyAC220V, 50/60Hz
Weight100kg
