Floor Standing Φ350mm Digital Measuring Profile Projector JT21A with DP100
Floor Standing Φ350mm Digital Measuring Profile Projector JT21A with DP100
Specifications
Brand Name :
iqualitrol
Model Number :
JT21A
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
20 Working Days
Packaging Details :
Plywood Pallet
JT21A :
Diameter 350mm, floor-standing
X-Y Travel :
200*100mm
Image :
Reverse
Accuracy :
(3+L/75)μm
Load Capacity :
5kg
Digital Readout :
DP100
Description

Floor Standing Φ350mm Digital Measuring Profile Projector JT21A with DP100

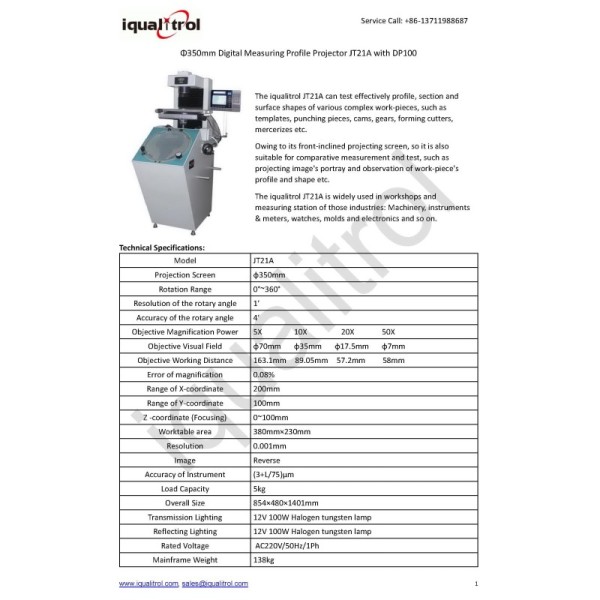

Download Technical Data: Measuring Profile Projector JT21A


Features and Application Range:

The iqualitrol JT21A can test effectively profile, section and surface shapes of various complex work-pieces, such as templates, punching pieces, cams, gears, forming cutters, mercerizes etc.

Owing to its front-inclined projecting screen, so it is also suitable for comparative measurement and test, such as projecting image's portray and observation of work-piece's profile and shape etc.

The iqualitrol JT21A is widely used in workshops and measuring station of those industries: Machinery, instruments & meters, watches, molds and electronics and so on.

Technical Specifications:

Model JT21A
Projection Screen φ350mm
Rotation Range 0°~360°
Resolution of the rotary angle 1′
Accuracy of the rotary angle 4′
Objective Magnification Power 5X 10X 20X 50X
Objective Visual Field φ70mm φ35mm φ17.5mm φ7mm
Objective Working Distance 163.1mm 89.05mm 57.2mm 58mm
Error of magnification 0.08%
Range of X-coordinate (mm) 200mm
Range of Y-coordinate (mm) 100mm
Z -coordinate (Focusing)(mm) 0~100mm
Worktable area 380mm×230mm
Resolution 0.001mm
Image Reverse
Accuracy of Instrument (3+L/75)μm
Load Capacity 5kg
Overall Size(mm) 854×480×1401
Transmission Lighting 12V 100W Halogen tungsten lamp
Reflecting Lighting 12V 100W Halogen tungsten lamp
Rated Voltage AC220V/50HZ/1PH
Mainframe Weight 138kg
