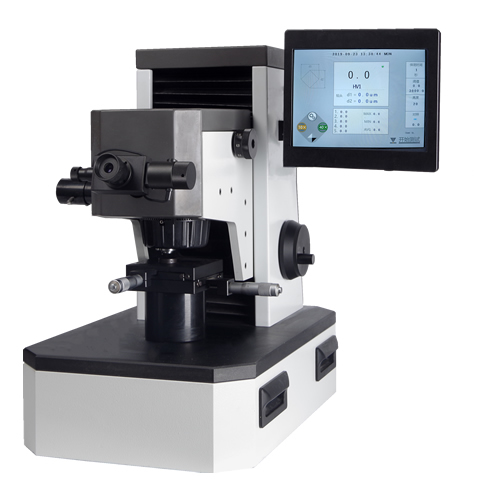

Automatic Turret Digital Micro Vickers Hardness Tester JMHVS-1000AT Indenter Lifting
Automatic Turret Digital Micro Vickers Hardness Tester JMHVS-1000AT Indenter Lifting
Specifications
Brand Name :
iqualitrol
Model Number :
JMHVS-1000AT
MOQ :
1 Set
Payment Terms :
T/T, Western Union
Supply Ability :
10 Sets per Month
Delivery Time :
15 Working Days
Packaging Details :
Plywood Pallet
Light and dwell time :
The measurement light intensity can be adjusted via buttons, and the test force dwell time can be preset
lifting structure :
Brand new design with indenter lifting structure
indentation measurement :
adopts a unique indentation measurement conversion and a micrometer eyepiece one-time measurement reading
hardness conversion :
Built-in hardness conversion table in the software for convenient use and high measurement accuracy
Loading control :
Fully automatic load/unload control, dual optical channels (eyepiece and CCD camera channel)
automatic turret :
Automatic switching of indenter and objective lens, with precise automatic positioning of the test point
Description

Automatic Turret Digital

Indenter Lifting Micro Vickers Hardness Tester JMHVS-1000AT

Download Technical Data: Micro Vickers Hardness Tester JMHVS-1000AT

Brief Introduction:

Touch display can show the test method, test force, indentation length, hardness value, test force dwell time, number of measurements, test results, and data processing, with output via a printer.

The iqualitrol JMHVS-1000AT equipped with an automatic indentation image analysis system, capable of photographing and measuring the tested indentations and the material's metallographic structure. It is suitable for measuring the Vickers hardness of tiny or thin specimens, surface plating layers, and for determining the Vickers hardness of brittle materials such as glass, ceramics, agate, and gemstones.

The iqualitrol JMHVS-1000AT Micro Vickers Hardness Tester features a novel and attractive design, with indenter lifting structure, making it especially suitable for testing large-sized workpieces. It also offers good reliability, operability, and intuitiveness.

JMHVS-1000AT uses computer software programming, a high-magnification optical measurement system, and sensor closed-loop control technology. The software allows the selection of test force and dwell time, and supports hardness value conversion.

Technical Specifications:

Model iqualitrol JMHVS-1000AT
Test force 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1kgf
Loading method Automatic loading and unloading
Dwell time 5-60 seconds
Turret Automatic turret
Test mode HV
Objectives 10x, 40x
Digital Eyepiece 10x
Resolution 0.1um
Vertical space 180mm, max height of specimen
Depth throat 135mm
Hardness conversion Conform ASTM E 140
LCD Display Force Curve, Options, Database, Control, Loading Start, Lighting Adjustment, Object Switching
Value Display D1, D2 value; HV, HK indication; hardness value; conversion value; test times; dwell time
Light source LED light
COM port RS232
Executive Standards JJG151, GB/T 4340, ISO/DIN6507, ASTM E-384
Power Supply AC90-240V/50Hz
Dimension & weight 500*340*540mm, 65Kg

Main Features:
1, The measurement light intensity can be adjusted via buttons, and the test force dwell time can be preset.


2, Brand new design with indenter lifting structure.

3, The machine adopts a unique indentation measurement conversion and a micrometer eyepiece one-time measurement reading mechanism.

4, Built-in hardness conversion table in the software for convenient use and high measurement accuracy.
5, Fully automatic load/unload control, dual optical channels (eyepiece and CCD camera channel), compatible with computer control systems.

6, Selection of microscopic Vickers and Knoop hardness scales; the tested hardness value is automatically calculated and displayed.

7, Automatic switching of indenter and objective lens (automatic turret), with precise automatic positioning of the test point.
