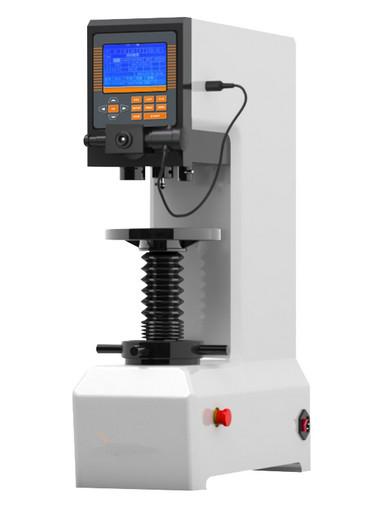

Automatic Turret Digital Brinell Hardness Testing Machine With Specimen Thickness Alarm
Automatic Turret Digital Brinell Hardness Testing Machine With Specimen Thickness Alarm
Specifications
Brand Name :
iqualitrol
Model Number :
HBS-3000Z
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Box
Turret :
Automatic Turret, indenter and objective
Feature :
high precision, high repeatability and stability
Test force :
from 62.5kgf - 3000kgf with 10-level test force
Eyepiece :
digital display micrometer eyepiece and precise data calculation system
Printer :
built-in printer to output measurement data
Test space :
Vertical 220mm * Throat 135mm
Description

Automatic Turret Digital Brinell hardness Testing Machine with Specimen Thickness Alarm

Technical Data Download: iqualitrol Digital Brinell hardness Tester HBS-3000Z

Main Functions and Features:

iqualitrol HBS-3000Z has the characteristics of high precision, high repeatability and stability, easy operation, convenient and practical, and high cost performance;

The system automatically prompts to measure the minimum thickness of the product;

Automatic turret, automatic rotation of indenter and objective lens;

With 10-level test force, the test range is wider;

Equipped with digital display micrometer eyepiece and precise data calculation system, the hardness value can be displayed directly with one click;

Equipped with a built-in printer to output measurement data or connected to a computer, the measurement data of the host can be transferred to the computer for editing and saving;

Equipped with a high-performance stepping motor to automatically load and unload the test force, the noise generated during the test is smaller

Using photoelectric sensing technology and microcomputer control system, it can automatically compensate, and the test results are accurate and stable;

Automatic input of indentation diameter, direct display of hardness value, dual display of any hardness unit can be realized, avoiding the tedious look-up table;

Self-designed high-magnification LED optical measurement, high image definition, adjustable brightness, long-term operation is not easy to fatigue;

Technical Specifications:

Model HBS-3000Z
Brinell Scales HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100, HBW10/250 HBW10/500 HBW10/1000 HBW10/1500 HBW10/3000
Test force 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Loading control Automatic (loading/dwell/unloading)
Turret Automatic turret among indenter and objective
Specimen height 220mm
Throat depth 135mm
Distance between indenter and upper wall 55mm(support customized)
Length resolution 0.125um
Dwell time 0~60s
Hardness range 3.18~653HBW
Magnification 20X
Test standards EN ISO 6506, ASTM E-10-08, GB/T231.2, JJG150 -2005
Hardness reading Automatic calculate
Data output Built-in Printer, Hyper terminal
Power supply AC220V+5%, 50~60Hz
Dimension 520*210*745mm
Weight 125kg
