Motorized Loading Superficial Rockwell Hardness Tester Vertical Space 200mm
Motorized Loading Superficial Rockwell Hardness Tester Vertical Space 200mm
Specifications
Brand Name :
iqualitrol
Model Number :
2HRD-45
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
20 Sets per Month
Delivery Time :
3 Working Days
Packaging Details :
Plywood Pallet
Test scales :
superficial Rockwell
test force :
15, 30, 45kgf
vertical space :
200mm
throat depth :
160mm
resolution :
0.5HR
hardness values :
Dial Gauge
Description

Motorized Loading

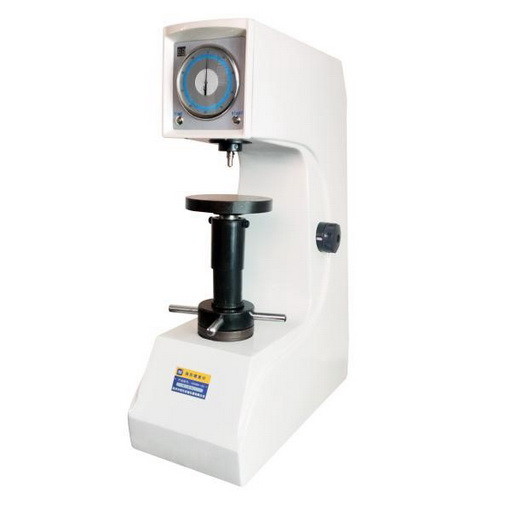

Superficial Rockwell Hardness Tester 2HRD-45 Vertical Space 200mm

Download Technical Data: iqualitrol Rockwell Hardness Tester 2HRD-45

Main Features:

1, iqualitrol 2HRD-45 motorized loading superficial Rockwell hardness tester, the loading, dwell and unloading of the test force is controlled by the motor, and the dwell time can be set;

2, The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;

3, Read the hardness values directly from the dial; Adopt the Friction-Free spindle, high test accuracy;

4, The loading, dwell and unloading of the test force is controlled by motor, the manual operation error of manual Rockwell hardness tester is eliminated;

5, Accuracy is in line with GB/T230.2, ISO6508-2 and American ASTM E18 standard.

Technical Specifications:

Model

200HRD-45

Range of
Measurement

70-94HR15N,67-93HR15TW,

42-86HR30N,29-82HR30TW,

20-77HR45N,10-72HR45TW；

Test Force

147.1,294.2,441.3N (15,30,45kgf)

Maximum Height of Specimen

 200mm

Throat depth

 160mm

Hardness Resolution

 0.5HR

Power Supply

 AC 220V/50Hz

Dimension

 510*290*730mm

Weight

80kg
