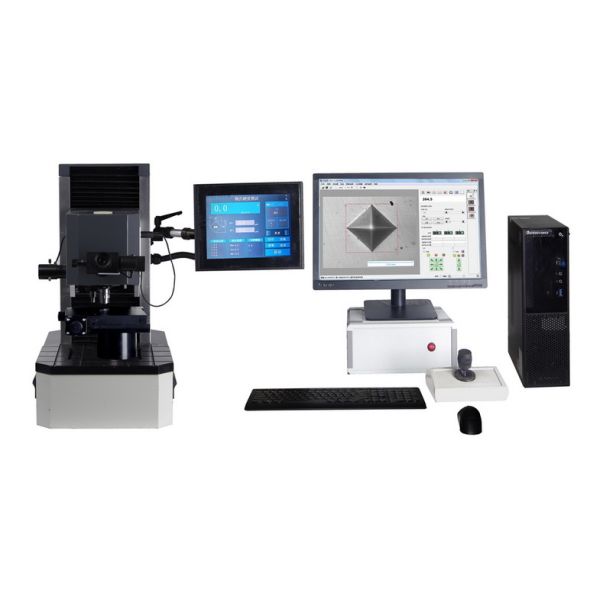

Indenter Lifting Structure Full Automatic Vickers Hardness Tester JMHVS-10XYZ
Indenter Lifting Structure Full Automatic Vickers Hardness Tester JMHVS-10XYZ
Specifications
Brand Name :
iqualitrol
Model Number :
JMHVS-10XYZ
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
10 Sets per Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Pallet
Indenter Lifting Structure :
suitable for the testing of large-sized workpieces
Loading Technology :
High Precision Step Control Electric Loading Technology
Improved Loading :
The loading speed of the main test force is very fast and the efficiency is improved
Software programming :
high-power optical measurement system and closed-loop control technology
Force Sensor :
High Precision force Sensor with Control System
Remote control :
Simple operation by remote control of whole testing process
Description

Indenter Lifting Structure Full Automatic Vickers Hardness Tester JMHVS-10XYZ

Download Technical Data: Vickers Hardness Tester JMHVS-10XYZ

Brief Introduction:

The iqualitrol JMHVS-5/10/30/50-XYZ Automatic Precision Vickers Hardness Tester equips with indenter lifting structure. It is especially suitable for the testing of large-sized workpieces. Moreover, it has good reliability, operability and intuition.

JMHVS-10XYZ adopts computer software programming, high-power optical measurement system and closed-loop control technology of sensors.

JMHVS-10XYZ equipped with indentation image automatic analysis system, which can not only photograph and measure the indentation and observe metallographic structure of materials, but also measure the depth of hardened layer of workpiece by planning path.

It is suitable for measuring Vickers hardness thin specimens, surface coating and other brittle materials such as glass, ceramics, agate, gemstone, etc.

Technical Specifications:

Model JMHVS-5XYZ JMHVS-10XYZ JMHVS-30XYZ JMHVS-50XYZ
Test force (kgf) 0.2, 0.3, 0.5, 1, 2, 2.5, 3, 5 0.3, 0.5, 1, 2, 2.5, 3, 5, 10 0.5, 1, 2, 3, 5, 10, 20, 30 1, 2, 3, 5, 10, 20, 30, 50
Loading method Automatic loading and unloading
Turret Automatic Turret
Dwell Time 5-60 seconds
Indenters HV and HK
Objective 10x, 20x
Eyepiece Digital 10x
Resolution 0.1um
Vertical space 215mm, Max height of specimen
Depth throat 160mm, Max depth of specimen
Hardness conversion Conform ASTM E 140
Touch screen Force Curve, Options, Database, Control, Loading Start, Lighting Adjustment, Object Switching
Value Display D1, D2 value; HV, HK indication; hardness value; conversion value; test times; dwell time
Light source LED light
COM port RS232
Power supply AC220V±5%, 50-60Hz
Dimension and weight 52*31*62cm, 86Kg
