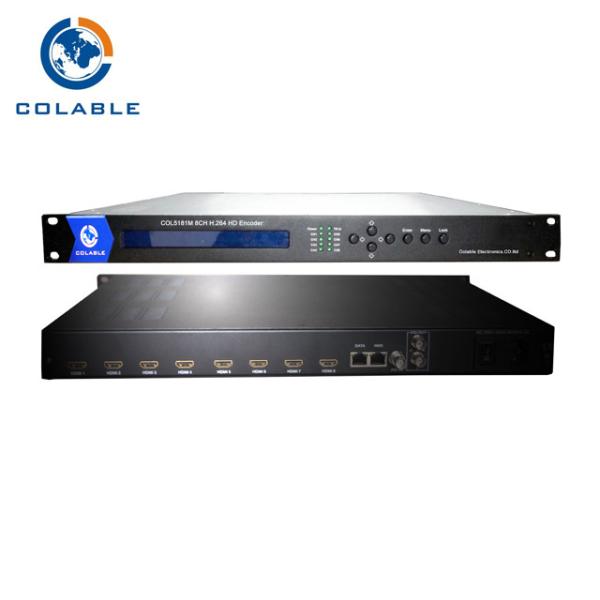

Carrier Grade DTT Satellite Cable TV Digital Encoder HDMI To IP And ASI Converter COL5181M
Carrier Grade DTT Satellite Cable TV Digital Encoder HDMI To IP And ASI Converter COL5181M
Specifications
Brand Name :
Colable
Model Number :
COL5181M
Certification :
CE
Place of Origin :
Made in China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union etc
Supply Ability :
500sets per Month
Delivery Time :
2-5 working days
Packaging Details :
Standard Export Carton with foam
Product name :
Satellite Cable TV Digital Encoder
Input :
8*HDMI + 1*ASI
Output :
8*SPTS & MPTS + 2*ASI
IP Protocol :
UDP and RTP
Resolution :
Max 1920×1080_60P, 1920×1080_50P
Vdieo Encoding :
MPEG-4 AVC/ H.264
Audio Encoding :
MPEG-1 Layer-2
Applications :
Digital CATV, IPTV, DTT, DSTV systems
Description

Carrier grade DTT Satellite Cable TV Digital Encoder HDMI to IP and ASI converter COL5181M

Features

●4/8 channels HD MI or HD-SDI per 1RU chassis
●Advanced multiplexing capabilities for cascading and multi-services through DVB-ASI input
●Advanced MPEG-4 AVC HP@L4 video compression
●ASIC technologies which offer best-in-class picture quality,
●Real-time Transport Protocol (RTP) and User Datagram Protocol (UDP) support
●Simultaneous outputs via 8*SPTS/MPTS over GbE IP Port
●Time to Live (TTL) support
●Selectable Any One SPTS or MPTS over IP as mirrored of DVB-ASI out
●Broadcast-grade HD to SD down converter
●Supports SD/HD formats and frames including 1080p, 1080i, 720p, 480i, 576i@50/59.94/60fps
●MPEG-1 Layer2, (HE-AAC(V2) or LC-AAC option) audio encoding, AC3 Passthrough for HD MI only
●Feature to adjust the audio volume prior to encoding
●Low delay 50-500 ms available
●PID Remapping & Filtering
●Null Packet Filter & Insertion
●Easy-to-Use System Management via Web and local front panel
●Built-in time base correction and video pre-processing
●Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours

Main Application

  1. Carrier-grade Cable TV, Satellite Up-link
  2. Terrestrial DVB-T/T2 and ISDB-T/Tb
  3. TV studio station
  4. Video over Coax Cable solution in Hotel, Campus, Enterprise
  5. 1080p@60fps FullHD Video encoding of IPTV

Specifications

Input 8×HDMI inputs
1 ASI input, BNC interface
Video Resolution 1920×1080_60P, 1920×1080_50P
1920×1080_60i, 1920×1080_50i
1280×720_60P, 1280×720 _50P
720x576_50i, 720x480_59.95i
Encoding MPEG-4 AVC/H.264 high profile level 4.0
Bit-rate 0.8Mbps~19Mbps (each channel)
Rate Control CBR, VBR
GOP Structure IBBP
Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening
Audio Encoding MPEG-1 Layer 2
Sampling rate 48KHz
Resolution 24-bit
Bit-rate 64Kbps~384Kbps each channel
Multiplexing 1 x ASI input multiplexed with local 8 channels of TS
Stream output 2 x ASI output, BNC interface
MPTS and 8 SPTS over UDP, 1000 Base-T Ethernet interface (UDP unicast / multicast);
System function LCD/keyboard operating, net manager (SNMP)
Chinese-English control interface
Ethernet software & hardware upgrade
Miscellaneous Dimension (W× L× H) 440mm×410mm×44.5mm
Approx weight 4kg
Temperature 0~45℃(work), -20~80℃(Storage)
Power AC 100V-240V±10%, 50/60Hz
Consumption 25W

Packing for Satellite cable tv digital encoder
Carrier Grade DTT Satellite Cable TV Digital Encoder HDMI To IP And ASI Converter COL5181M



Please feel free to ask if you have any questions. Welcome !!!
