Specifications
Brand Name :
SHC
Model Number :
SC-65F4
Certification :
CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Place of Origin :
China
MOQ :
1 unit
Price :
USD 50-500 unit
Supply Ability :
999 units per month
Delivery Time :
in 5 working days
Packaging Details :
Aluminum toolbox
Material :
Stainless steel
Standards :
IEC60065 Figure 4
Warranty :
24 months
Application :
Safety test
Customized support :
OEM, ODM
Description

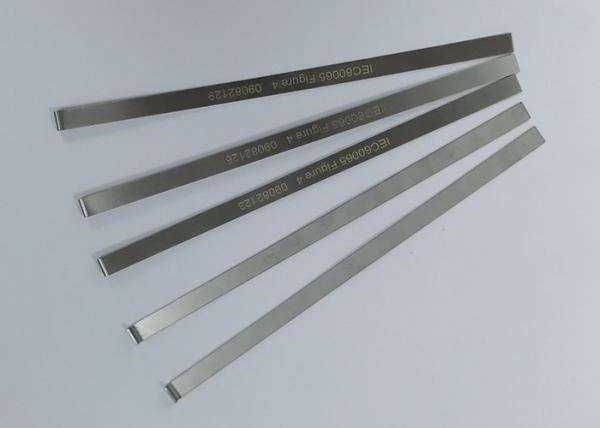

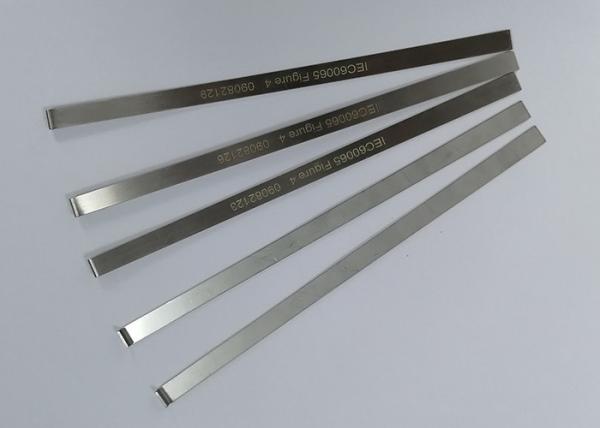

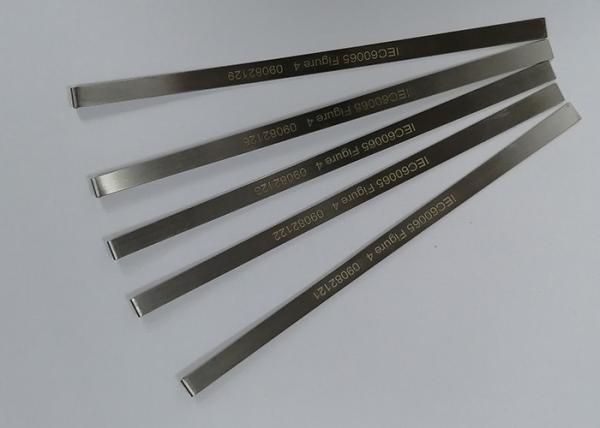

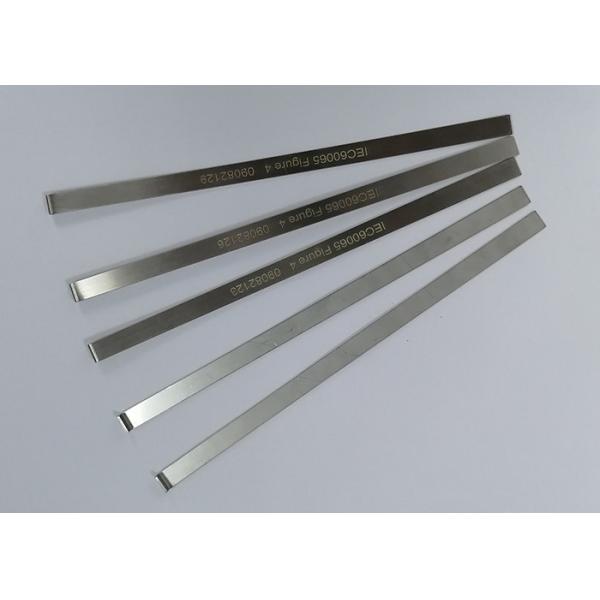

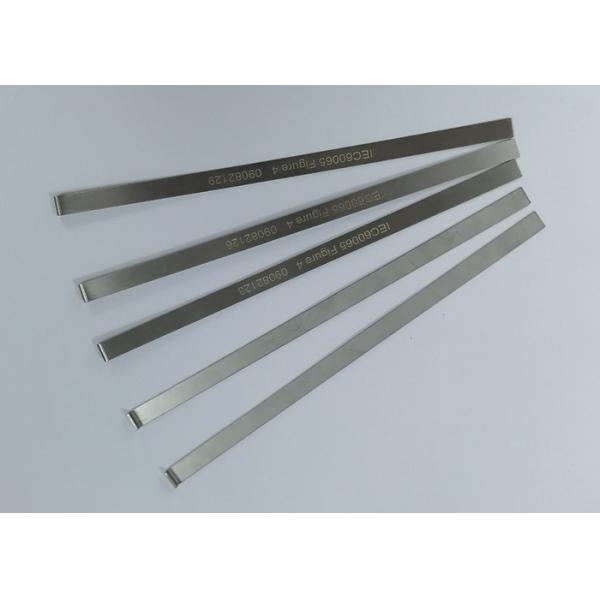

IEC60065 Figure 4 Test Hook Probe

Product information:

The test hook complies with IEC60065. It is used to test whether the dangerous electric parts can be touched. The test hook is “hooked” into vents and seams in the enclosure & then pulled with a force (usually 20N). The hook has a hole at its long end, for use in conjunction with a PFI series Force Gauge. It is made entirely of stainless steel.

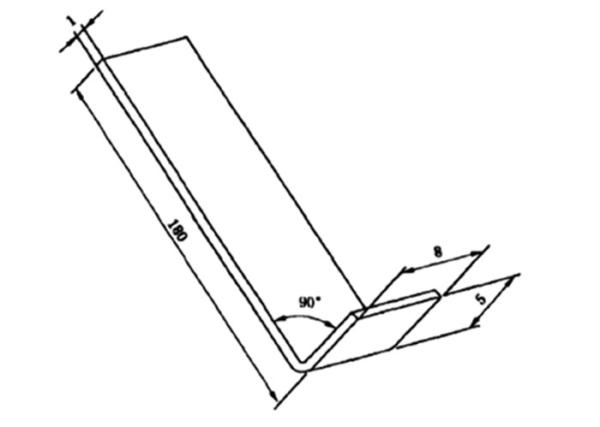

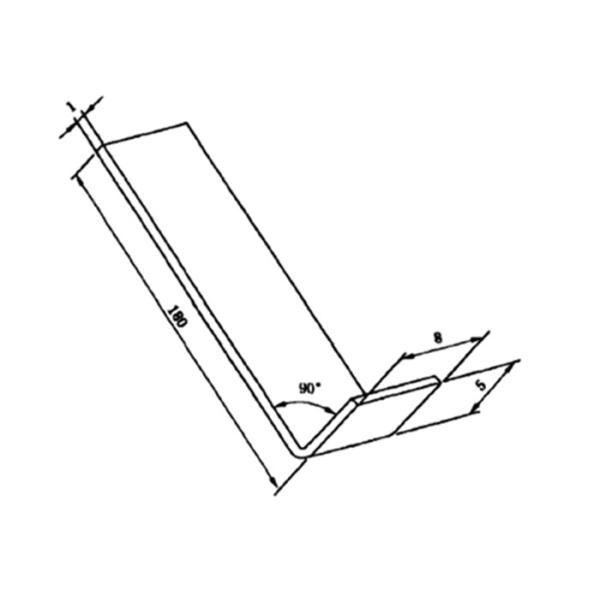

Technical parameters:

Parameters/Model Test hook SC-65F4
1 180±0.05
2 8±0.15
3 5±0.05
4 1±0.15
5 90°

Stainless Steel IEC60065 Figure 4 Test Hook ProbeStainless Steel IEC60065 Figure 4 Test Hook ProbeStainless Steel IEC60065 Figure 4 Test Hook Probe
