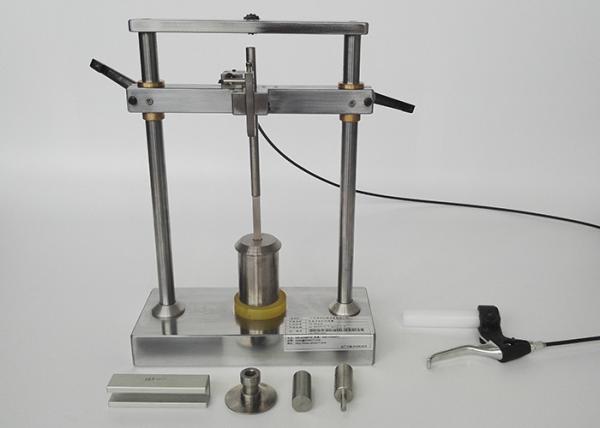

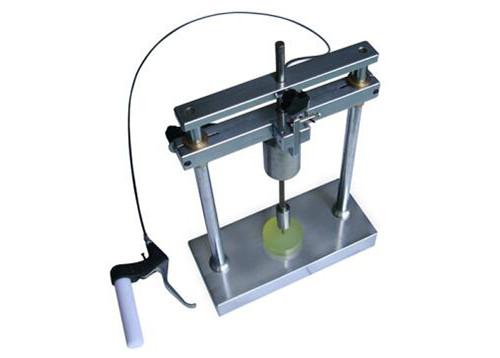

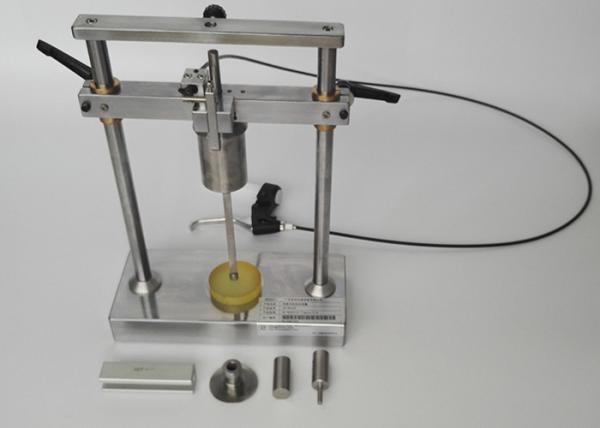

IEC60884 Figure27 Low Temperature Pressure Impact Test Apparatus, IEC Test Equipment

Product information:

The specimens are subjected to an impact test by means of an apparatus as shown in figure 27.
The apparatus, positioned on a pad of sponge rubber 40 mm thick, is placed together with the specimens in a freezer at a temperature of (–15 ± 2) °C, for at least 16 h.
At the end of this period, each specimen, in turn, is placed in the normal position of use as shown in figure 27, and a weight is allowed to fall from a height of 100 mm. The mass of the falling weight is (1 000 ± 2) g.
After the test, the specimen shall show no damage within the meaning of this standard.

Confirms:

IEC 60884 Figure 27

Technical parameters:
The height of falling: 10~250mm is adjustable.

For the samples of laying of cable, the weight of the drop hammer required are as follows:

For the samples of flexible cable and telecommunication cable, the weight of the drop hammer required is as follows:
