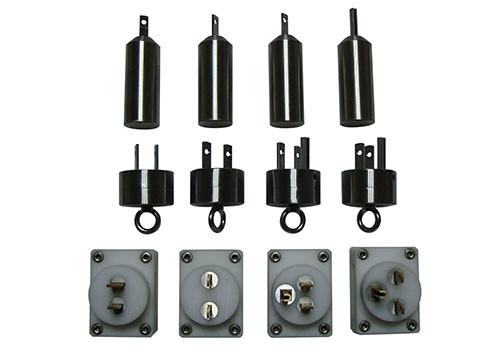

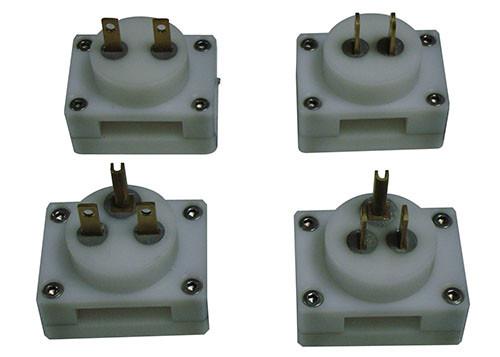

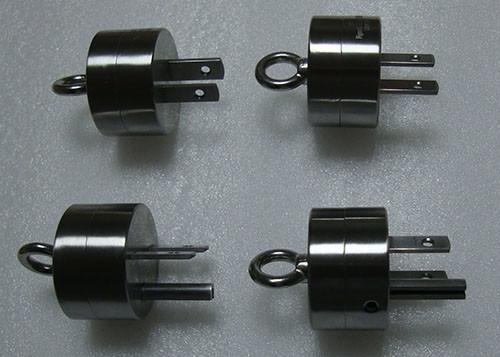

JISc 8303 Temperature Rise Test Plug Socket Gauge
JISc 8303 Temperature Rise Test Plug Socket Gauge
JISc 8303 Temperature Rise Test Plug Socket Gauge
JISc 8303 Temperature Rise Test Plug Socket Gauge
JISc 8303 Temperature Rise Test Plug Socket Gauge
JISc 8303 Temperature Rise Test Plug Socket Gauge
JISc 8303 Temperature Rise Test Plug Socket Gauge
JISc 8303 Temperature Rise Test Plug Socket Gauge
Specifications
Brand Name :
SHC
Model Number :
SC-JISc8303
Certification :
CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Place of Origin :
China
MOQ :
1 piece
Price :
USD 50-2000 piece
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
999 pieces per month
Delivery Time :
in 15 work days
Packaging Details :
Plastic Tool Box
Material :
Mold steel
Standards :
JISc 8303
Figure A.1 :
Maximum retaining force gauge 15A125V
Figure A.2 :
Maximum retaining force gauge 15A125V
Figure A.9 :
Maximum retaining force gauge 15A 125V
Figure A.10 :
Maximum retaining force gauge 15A 250V
Figure A.5 :
Test plug for temperature rise test 30A 250V
Figure A.4 :
Test plug for temperature rise test 20A 250V
Description

JISc 8303 Gauge For Plug And Socket Temperature Rise Test Plug

Specification:

Product Model Standard Product Name
SC-JS801 Figure A.1 Maximum retaining force gauge(15A125V)
SC-JS802 Figure A.1 Minimum retaining force gauge(15A125V)
SC-JS803 Figure A.1 Test plug for temperature rise test(15A125V)
SC-JS804 Figure A.2 Maximum retaining force gauge(15A125V)
SC-JS805 Figure A.2 Minimum retaining force gauge(15A125V)
SC-JS806 Figure A.2 Test plug for temperature rise test(15A125V)
SC-JS807 Figure A.3 Maximum retaining force gauge(20A 125V)
SC-JS808 Figure A.3 Minimum retaining force gauge(20A 125V)
SC-JS809 Figure A.3 Test plug for temperature rise test(20A 125V)
SC-JS810 Figure A.4 Maximum retaining force gauge(20A 250V)
SC-JS811 Figure A.4 Minimum retaining force gauge(20A 250V)
SC-JS812 Figure A.4 Test plug for temperature rise test(20A 250V)
SC-JS813 Figure A.5 Maximum retaining force gauge(30A 250V)
SC-JS814 Figure A.5 Minimum retaining force gauge(30A 250V)
SC-JS815 Figure A.5 Test plug for temperature rise test(30A 250V)
SC-JS816 Figure A.9 Maximum retaining force gauge(15A 125V)
SC-JS817 Figure A.9 Minimum retaining force gauge(15A 125V)
SC-JS818 Figure A.9 Test plug for temperature rise test(15A 125V)
SC-JS819 Figure A.10 Maximum retaining force gauge(15A 250V)
SC-JS820 Figure A.10 Minimum retaining force gauge(15A 250V)
SC-JS821 Figure A.10 Test plug for temperature rise test(15A 250V)
SC-JS822 Figure A.11 Maximum retaining force gauge(15A 125V)
SC-JS823 Figure A.11 Minimum retaining force gauge(15A 125V)
SC-JS824 Figure A.11 Test plug for temperature rise test(15A 125V)

Conforms To:

JISc 8303

Application:

Guangzhou Shice offers a wide range of gauge to meet the most common standards including those from IEC, EN, UL, GB,DIN,VDE and others. Such standards require the checking of size & definition etc. these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 53-58 HRC and a roughness according to standard require. Each gauge is supplied with a certificate of calibration.

JISc 8303 Temperature Rise Test Plug Socket GaugeJISc 8303 Temperature Rise Test Plug Socket Gauge
