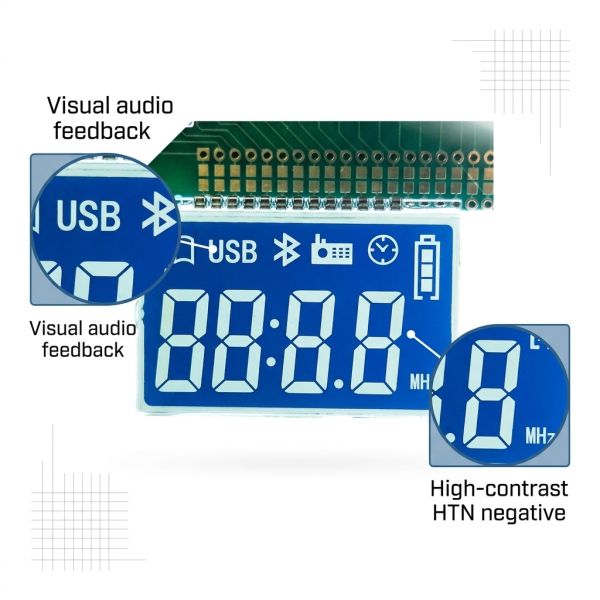

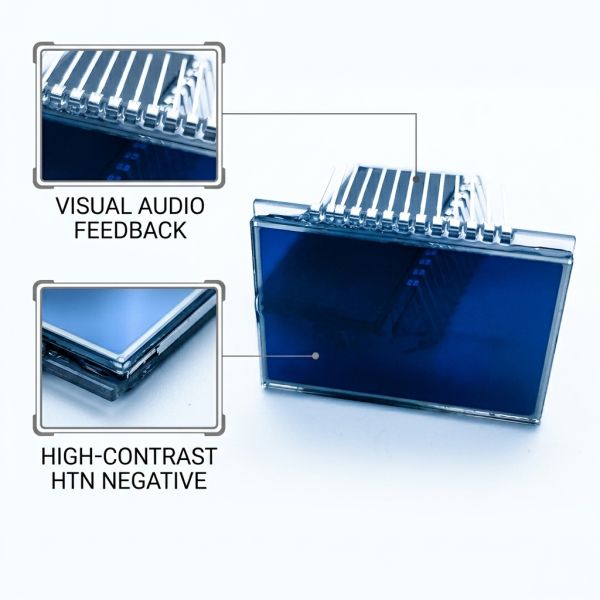

HTN Negative 7 Segment LCD Display Customized For Audio
HTN Negative 7 Segment LCD Display Customized For Audio
HTN Negative 7 Segment LCD Display Customized For Audio
HTN Negative 7 Segment LCD Display Customized For Audio
HTN Negative 7 Segment LCD Display Customized For Audio
HTN Negative 7 Segment LCD Display Customized For Audio
HTN Negative 7 Segment LCD Display Customized For Audio
HTN Negative 7 Segment LCD Display Customized For Audio
Specifications
Place of Origin :
China
Brand Name :
BBI
Certification :
ISO9001 RoHS
MOQ :
1000
Price :
DISCUSSABLE
Packaging Details :
CARTON
Delivery Time :
3-4WEEKS
Payment Terms :
T/T
Supply Ability :
100000/MONTH
Operate Temperature :
0~+50℃
Display Type :
Custom Segment LCD Display
Connection Way :
PIN, 13 numbers
Working Voltage :
3.3V
Viewing Angle :
12 o'clock
Backlight Color :
Customizable
Application :
Industrial/Consumer Electronics
Drive Method :
1/6 Duty, 1/3 Bias
Description
HTN Negative 7 Segment LCD Display Customized For Audio
Customized LCD Display HTN Negative 7 Segment LCD Display For Audio
Detail Information
LCD Type: HTN, Negative
Viewing Angle: 12 O'clock
Operating Temperature: 0~+50℃
Connector: PIN
Voltage: 3.3V
Backlight: White
Detailed Parameters:
No. Parameter Value
1 LCD Type HTN Negative, Transmissive
2 Viewing Angle 12 O'clock
3 Drive Method 1/6 Duty, 1/3 Bias, 3.3V
4 Operating Temperature 0~+50℃
5 Storage Temperature -10~+60℃
6 Connector PIN, 13 numbers
7 Backlight LED, White
8 LCD Outline Dimension 40.0(W)* 27.0(H)* 2.8(T) mm
9 View Area 37.6(W)* 22.6(H) mm
HTN (High-Temperature Nematic)
  • Display Technology: HTN is a variant of the TN (Twisted Nematic) LCD technology designed to operate at higher temperatures than regular TN displays.
  • Thermal Stability: The key feature of HTN is its ability to operate in environments with high temperatures, typically ranging from -20°C to +70°C. This makes HTN more robust in extreme conditions than standard TN and STN displays.
Performance
  • Display Characteristics: HTN displays typically have poorer contrast and viewing angles compared to STN displays, but they are suitable for industrial environments.
  • Faster Response Times: HTN displays can have faster response times compared to STN, which might be advantageous in some industrial or automotive applications.
  • Durability: The increased temperature tolerance makes HTN displays ideal for applications in harsh environments, such as automobiles, industrial equipment, and outdoor displays.
Applications
  • HTN displays are commonly found in automotive dashboards, industrial instruments, thermometers, and other devices that need to function reliably in high-temperature settings.
HTN Negative 7 Segment LCD Display Customized For Audio
HTN Negative 7 Segment LCD Display Customized For Audio
CHARACTER / GRAPHIC TYPE LCD MODULES LIST:
极
Model Content (W X H) Module size W x H(mm) View area W x H(mm) Dot size W x H(mm) Dot pitch W x H(mm) Driving Method Controller LSI or Equiv IC Package STN-TYPE FSTN-TYPE
8D -C2004A 20X4 98.0X60.0 76.0X25.2 0.55X0.55 2.95X4.75 1/16 S6A0069 COB Y Y
8D -C2004B 20X4 77.0X47.0 60.0X22.0 0.42X0.46 2.3X4.03 1/16 S6A0070 COB Y Y
8D -C2004C 20X4 146.0X62.5 123.5X43.0 0.92X1.1 4.84X9.22 1/16 S6A0069 COB Y Y
8D -C2402A 24X2 118.0X36.0 93.5X16.0 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D -C2402B 24X2 208.0X40.0 178.0X23.0 1.16X1.16 6.0X9.63 1/16 S6A0069 COB Y Y
8D -C4001A 40X1 182.0X33.5 154.4X16.5 0.6X0.75 3.2X6.35 1/16 S6A0069 COB Y Y
8D -C4002B 40X2 182.0X33.5 154.4X16.5 0.6X0.65 3.2X5.55 1/16 S6A0069 COB Y Y
8D C4004A 40X4 190.0X54.0 147.0X29.5 0.5X0.55 2.78X4.89 1/16 S6A0069 COB Y Y
8D -G12232A 122X32 84.0X44.0 60.0X18.5 0.4X0.4 0.44X0.44 1/32 SED1520 COB Y Y
8D -G12232B 122X32 80.0X36.0 55.0X18.5 0.36X0.41 0.4X0.45 1/32 SED1520 COB Y Y
8D -G12232C 122X32 98.0X60.0 76.0X25.2 0.53X0.61 0.57X0.65 1/32 SED1520 COB Y Y
8D -G12232D 122X32 80.2X47.4 76.0X25.2 0.53X0.61 0.57X0.65 1/32 SED1520 COB Y Y
8D -G12864A 128X64 78.0X70.0 62.0X44.0 0.39X0.55 0.44X0.6 1/64 S6B0108A COB Y Y
8D -G12864B 128X64 105.0X60.5 72.0X40.0 0.48X0.48 0.52X0.52 1/64 S6B0108A COB Y Y
8D -G12864C 128X64 93.0X70.0 72.0X40.0 0.48X0.48 0.52X0.52 1/64 S6B0108A COB Y Y
8D -G12864D 128X64 113.0X65.0 72.0X40.0 0.48X0.48 0.52X0.52 1/64 S6B0108ACOB Y Y
8D -G12864E 128X64 93.0X70.0 72.0X40.0 0.48X0.48 0.52X0.52 1/64 ST7920 COB Y Y
8D -G19264A 192X64 130X65.0 104.0X39.0 0.46X0.46 0.51X0.51 1/64 S6B0108A COB Y Y
8D -G19264B 192X64 120X62.0 104.极39.0 0.46X0.46 0.51X0.51 1/64 S6B0108A COB Y Y
8D -G24064B 240X64 180.0X65.0 132.0X39.0 0.53X0.53 0.49X0.49 1/64 T6963C QFP/COB Y Y
8D -G240128A 240X128 144X104 114X64 0.4X0.4 0.45X045 1/128 T6963C QFP/COB Y Y
